SECTION 7:
BOARD ASSEMBLY

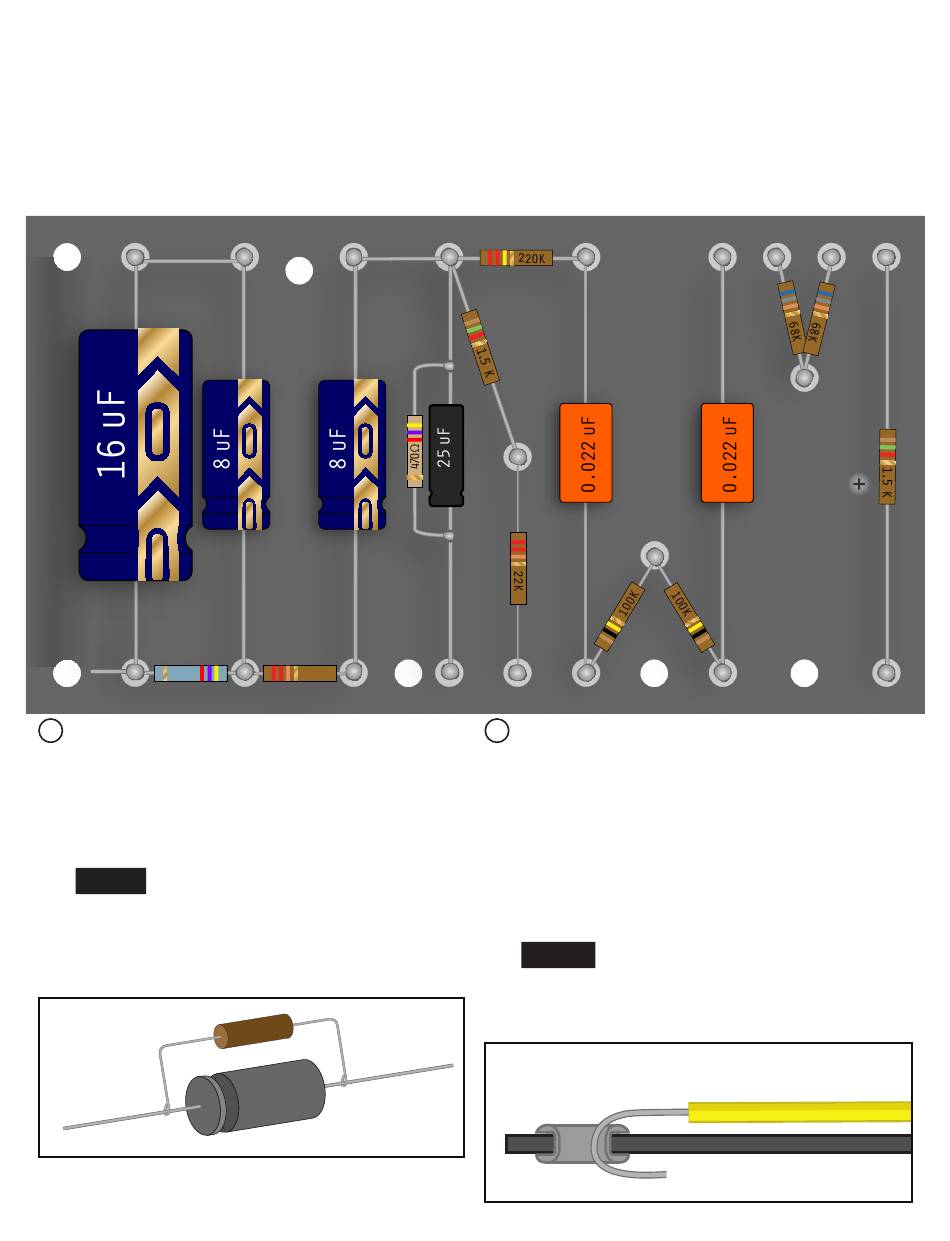

FOLLOW THE WIRING DIAGRAM TO POPULATE BOARD. BE SURE TO TAKE NOTE OF POLARIZED
CAPACITOR ORIENTATION FOR THE (1) 16UF CAPS, (2) 8UF CAPS AND (1) 25UF CAPS.
COMPLETED WITH COMPONENTS
4 . 7K
370V 325V
Starting at one end of the front side of the
board, identify the necessary components
for each eyelet connection and place leads
through the eyelet holes. Once inserted, bend
the leads under the bottom of the board to hold
them in place.
PRO Tip:
When a capacitor and resistor are both
running between the same eyelet holes, you
can twist their leads around one another and
solder to form a solid mechanical connection.
10
+
22K
275V 19V
BUILD. MODIFY. REPAIR.
1.65V
165V
Once all components are in place on the
front side of the board, flip the board over and
start applying traces or jumper wires to the
backside of the board. These are illustrated on
your wiring diagram as striped lines connecting
different eyelet holes. Use your yellow cloth-
covered wire and cut each piece to size. Insert
leads and bend around front of eyelet board to
secure them.
PRO Tip:
Make a small hook with the wire so
that the wire "hooks" into the eyelet.
CROSS-SECTION OF EYELET BOARD
165V 1.65V
