Mojotone Tweed Champ Manual page 12

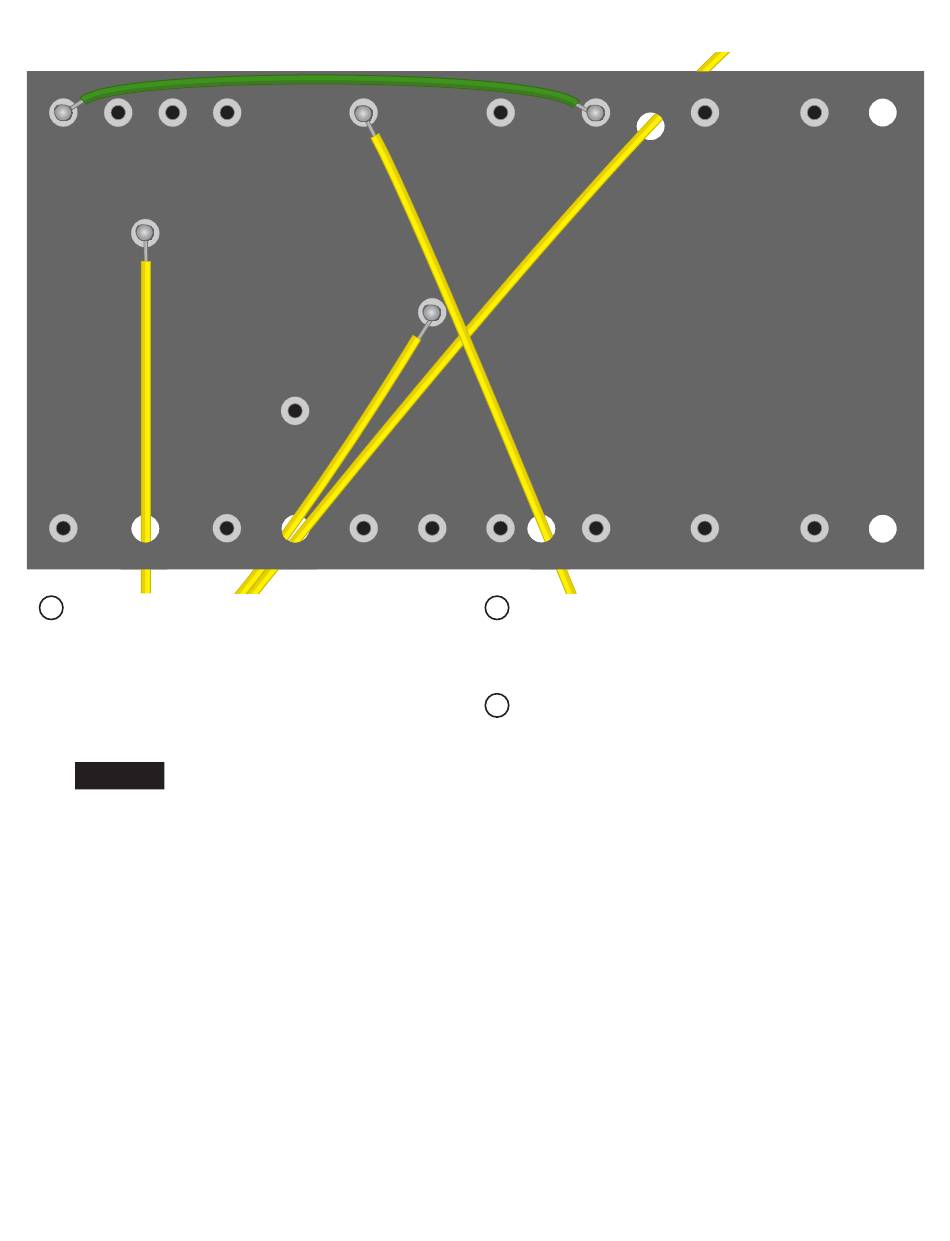

BACK SIDE OF EYELET BOARD
1.65V 165V
Once jumper wires are in place, follow wiring
diagram to create leads where necessary.
These will be the wires that go out from the
component board to other components in the
circuit. Insert these leads down through the
front of the board and bend around back to
secure.
Quick Tip:
Use the included Wiring Diagram to
approximate lead lengths
1.65V
165V 19V
w w w. m o j o t o n e . c o m
275V 325V
Once all components, jumpers, and leads
are in place, start at one end of the board and
begin soldering every eyelet hole.
Make Sure you don't have any bad or "cold"
solder joints by lightly pulling each wire after
solder has set.
370V
11
