Mojotone FX LOOP v.2 Installation Manual

MOJOTONE FX LOOP VERSION 2 Installation Manual
How to Install the Mojotone FX Loop to Your Amplifier's Chassis
Note: The following steps should be performed with the amplifier's power cable unplugged. Follow all
electrical safety guidelines including discharging the amplifier's capacitors. If you do not feel
confident to perform the following installation steps, let a qualified technician complete the work. If
you continue, you do so at your own risk.

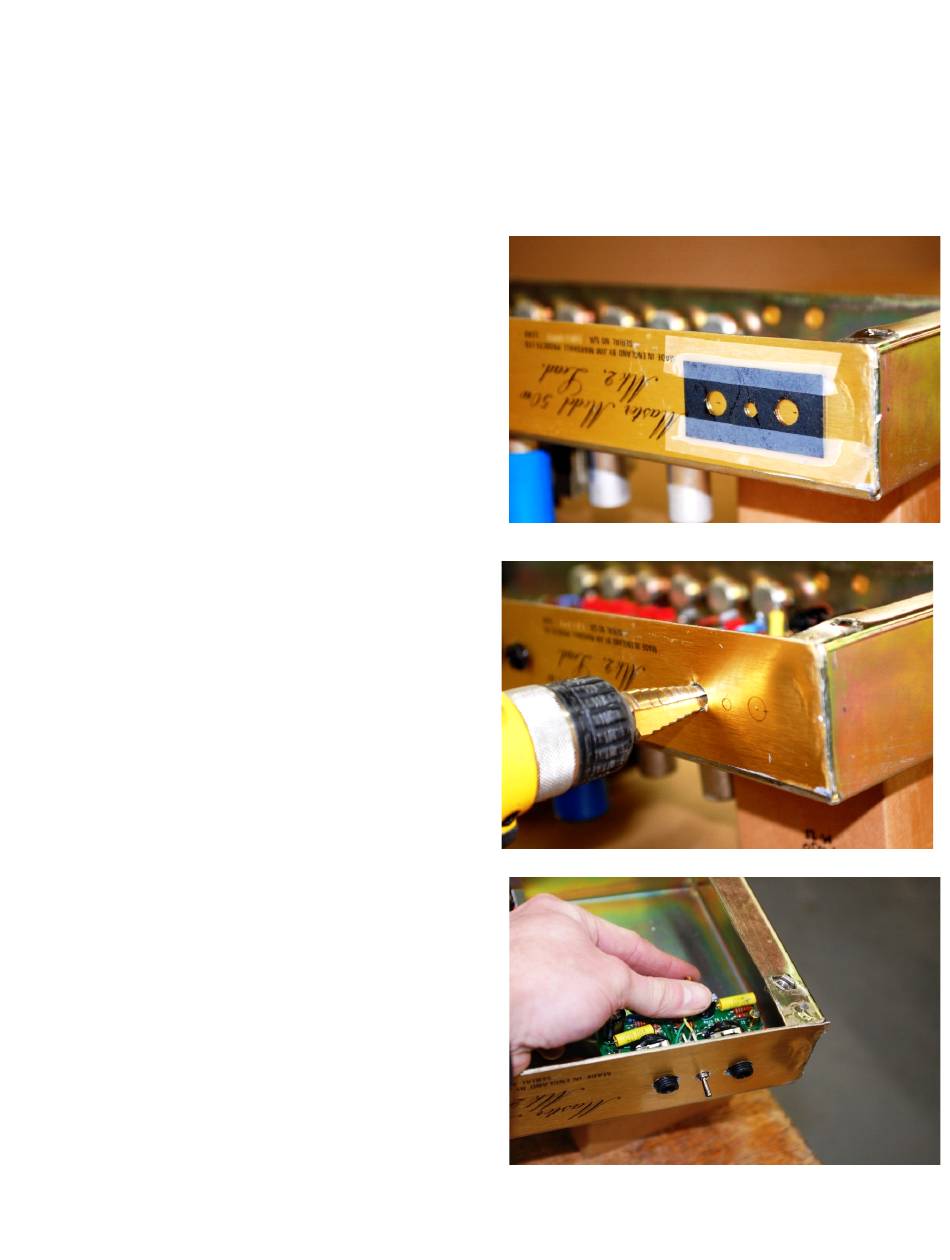

Step 1: Line it Up Start by placing the template on the
amplifier chassis where the FX Loop will mount.
Ideally, since the signal will be sent through it, the FX
Loop should be placed as far away from the output as
possible. As a test, place the FX Loop in the location
where it will be installed, and make sure it does not
physically interfere with any other part of the amplifier.
Trace the insides of the holes on the template onto
the amplifier's chassis using a marker, pen, or pencil.
Step 2: Drill it Out Drill the holes with either a step bit
or a regular metal cutting bit. Holes for the Send and
Return should be 7/16" in diameter. The hole for the
Bypass should be 3/16" in diameter.
Step 3: Pop it In Insure that the FX Loop fits into the
holes and sits flush against the amplifier chassis.
Again, make sure the FX Loop's components are clear
of obstruction from any other part of the amplifier.
Use the supplied nuts to secure the FX Loop to the
amplifier chassis. Note that mounting the FX Loop
component side up will position the Send jack on the
left and the Return jack on the right. The opposite will
result if the FX Loop is mounted component side
down.
