Installing and Connecting the External Power Supply Shelf
Installation Procedures

3. Install the Power Supplies

The Power Supply Shelf does not come with power supplies installed. You
must purchase power supplies separately and install them. The supported
power supplies are the:
1.
2.
3.

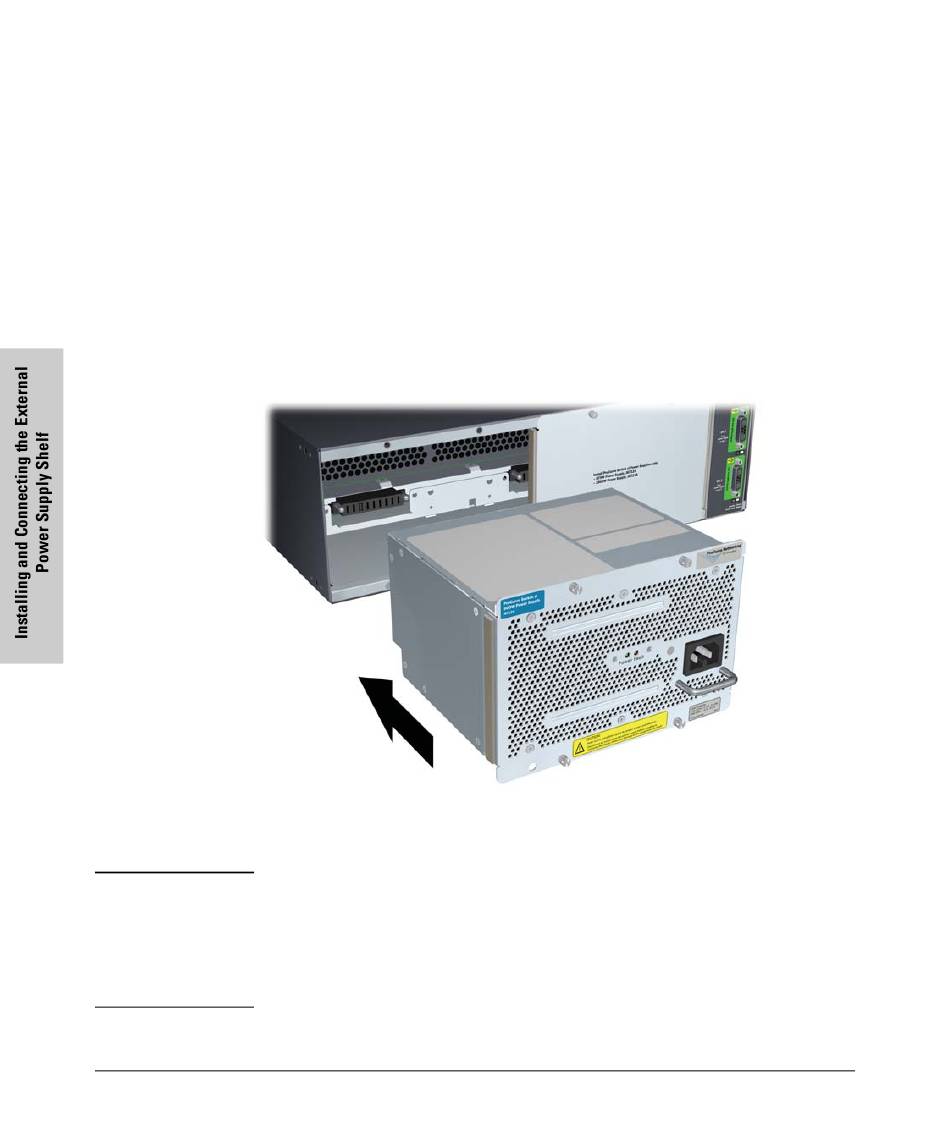

Figure 2-5. Installing a power supply
N o t e
Although mixing power supplies is supported, ProCurve Networking highly
recommends that the two types of power supplies are not mixed in the same
Power Supply Shelf.
See the Procurve Power over Ethernet (PoE) for zl and yl Products Planning
and Implementation Guide, page 4-9 for more information.
2-8
• ProCurve Switch zl Internal Power Supply, J8712A
• ProCurve Switch zl 220V Internal Power supply, J8713A
Remove the power supply slot cover if present.
Slide the power supply into the slot.
Secure the power supply by tightening the retaining screws.
