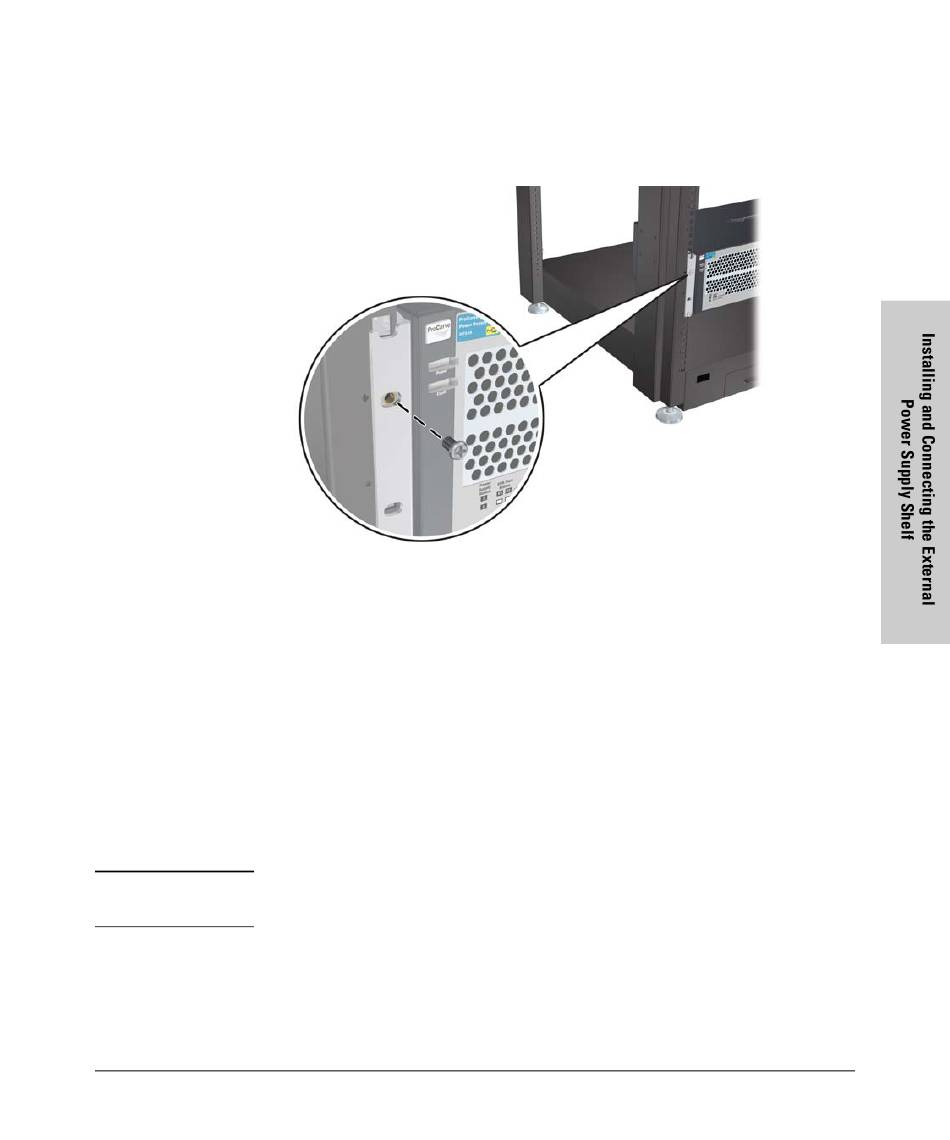

Figure 2-4. Installing top screws into bracket and rack
Horizontal Surface Mounting
Place the unit on a table or other horizontal surface. The unit comes with
rubber feet in the accessory kit that can be used to help keep the unit from
sliding on the surface.
Attach the rubber feet to the four corners on the bottom of the unit within the
embossed angled lines. Use a sturdy surface in an uncluttered area. You may
want to secure the EPS cables and the unit's power cord to the table leg or
other part of the surface structure to help prevent tripping over the cords.
C a u t i o n
Make sure the air flow is not restricted around the front, sides or back of the
unit.
Installing and Connecting the External Power Supply Shelf
Install the other screw into the upper hole in each bracket. Tighten these
screws.
Installation Procedures
2-7
