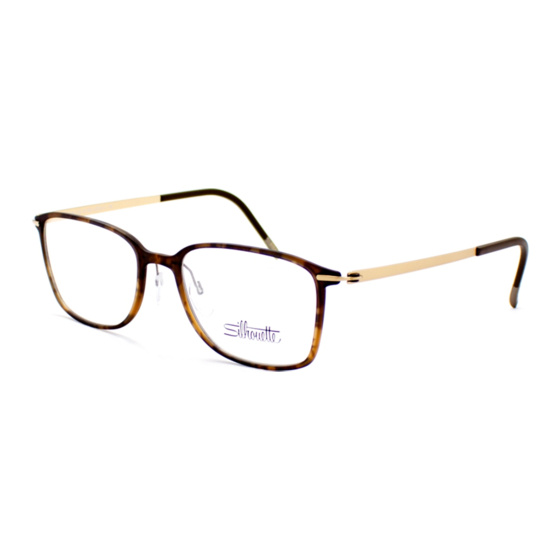

- Page 1 DAY-LITE Technical Instructions...
-
Page 2: Incline With Inclination Lever
INCLINE with INCLINATION LEVER AC 400 from advanced glazing box P0032 1. Hold side part and frame firmly with your hands. TIP: Gloves made of fabric or a piece of leather will simplify fixation. 2. Place inclination lever on side part and hinge and adjust requested inclination angle. -
Page 3: Inclination By Hand
INCLINATION by HAND 1. Hold sidepart firmly with mounting pliers on frame. 2. Cover temple edge with hinge closely. 3. Adjust inclination at titanium side part. -
Page 4: Temple Disassembly
TEMPLE DISASSEMBLY 1. Hold titanium side part firmly at frame. 2. Close temple slightly and pull straight out of the BLS-hinge. ATTENTION: Pull backwards only! Do not twist temple. -
Page 5: Fixing Hinge Plates (Bls)
FIXING HINGE PLATES (BLS) BLS 89 Place hinge-BLS form-fit on both sides of the hinge loop. NOTE: The oval shape of the BLS plug system will ensure correct positioning. -
Page 6: Hinge Greasing
HINGE GREASING P0030 Grease inside loop of hinge with high precision lubricant. Attach small plastic plates and mount temple. -
Page 7: Temple Assembly
TEMPLE ASSEMBLY Place temple exactly at the slot of the BLS-hinge and click it in carefully until it stops. -
Page 8: Temple Adjustment
TEMPLE ADJUSTMENT Curve temple in large movements. Metal inlay inside the temple enables cold adjustment of the temple end. Curve gradually. -
Page 9: Spx Cold Glazing
SPX COLD GLAZING Prescription lenses can be inserted at room temperature since the frame‘s SPX material is flexible and resilient.
