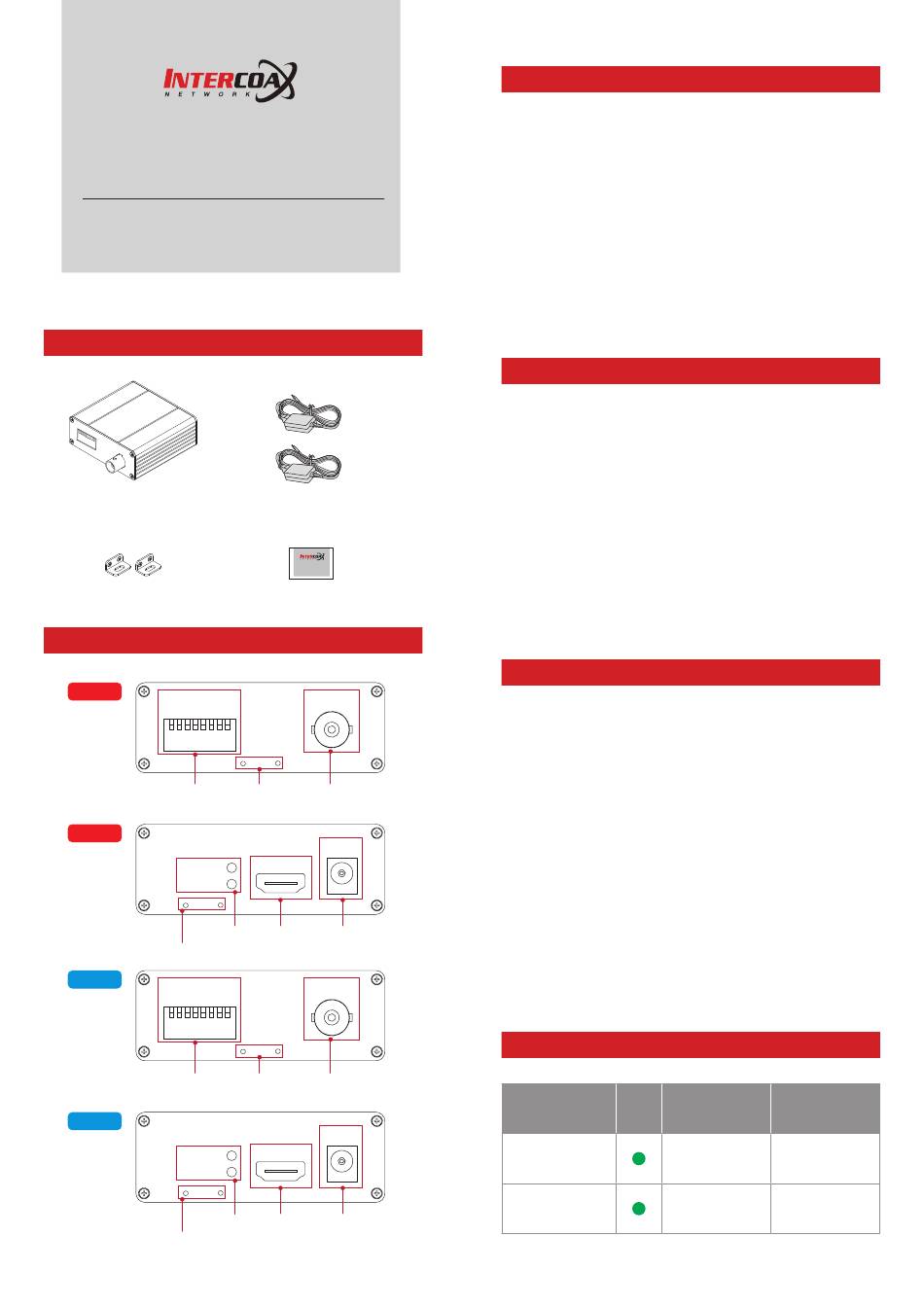

Intercoax HOC-500T Quick Start Manual

Quick Start Guide

HOC-500T / HOC-500R
Please read carefully the instruction manual before use.
Depending on the model, the image
and the actual look of the product may vary.
[Rev.1.0]

Package

HOC-500T : Transmitter
HOC-500R : Receiver
Bracket

Hardware Overview

Tx_Right
CHANNEL
1 2 3 4 5 6 7 8
Channel setting Channel Bracket Hole
DIP Switch
설정 스위치
Tx_Left
POWER
HDMI
Bracket
상태표시등 Status LED
indicator
브라켓 홀
Bracket Hole
Rx_Right
CHANNEL
1 2 3 4 5 6 7 8
Channel
Channel setting Bracket Hole
설정 스위치
DIP Switch
Rx_Left
POWER
HDMI
Bracket
상태표시등
Status LED
indicator
브라켓 홀
Bracket Hole
Adapter (Optional)
Quick Start Guide
RF OUT
Bracket
브라켓 홀 RF OUTPUT RF 출력
5V DC
HDMI IN
HDMI 입력 HDMI DC POWER DC 전원
INPUT INPUT
입력 포트
RF IN
Bracket
브라켓 홀 RF 입력
RF INPUT
5V DC
HDMI OUT
HDMI 출력 DC 전원
HDMI DC POWER
OUTPUT INPUT
입력 포트

Overview

The HOC-500T / R is an HDMI Extender that can transmit HDMI
signals over long distances using coaxial cable.
By using the coaxial cables already installed or newly installed
coaxial cable, it is possible to transmit HDMI video and audio
signal with Max.1920x1080P 60fps Full HD resolution up to 500
meters.
HOC-500T/R offers solutions for various system configurations
such as CCTV, AV equipment and conference room, information
distribution, etc.

Features

 Long range HDMI (Video / Audio) signal transmission up to
500 meters over Coaxial cable.

Support Max. 1920x1080P 60fps Full HD resolution.
 2.0CH Audio (LPCM)

Support Max. 80 Channel frequency band (140~950Mhz).

Anti-interference and error correction function by adopting
digital TV communication protocol.

Easy installation and channel setting by DIP switch.

Installation Guide

1. Connect RF OUT BNC Port of HOC-500T to RF IN BNC Port
with coaxial cable.
2. Connect HDMI output port of the HDMI Source device to
HDMI IN port of the HOC-500T using HDMI Cable.
3. Connect HDMI Input port of the display to HDMI OUT port of
HOC-500R using HDMI Cable.
4. Set the Channel ID of the HOC-500T and HOC-500R to the
same using DIP Switch.
5. Supply power to the HOC-500T and HOC-500R with DC5V
adapter.
6. If the image is not displayed properly, reset the DIP switch
according to the installation guide.

LED Indicators

Indicator Color
POWER
HDMI IN
HDMI OUT
HOC-500T HOC-500R
(Transmitter) (Receiver)
Power Input Power Input
HDMI Input HDMI Output
