SMART Coin System Quick Start and Configuration Guide
Secure the baseplate in position using the screw holes provided. See the Specification
section 6.6 for a specification on the screws to be used.
WARNING!
Ensure baseplate mounting
screws are flush with the
surface of the baseplate.

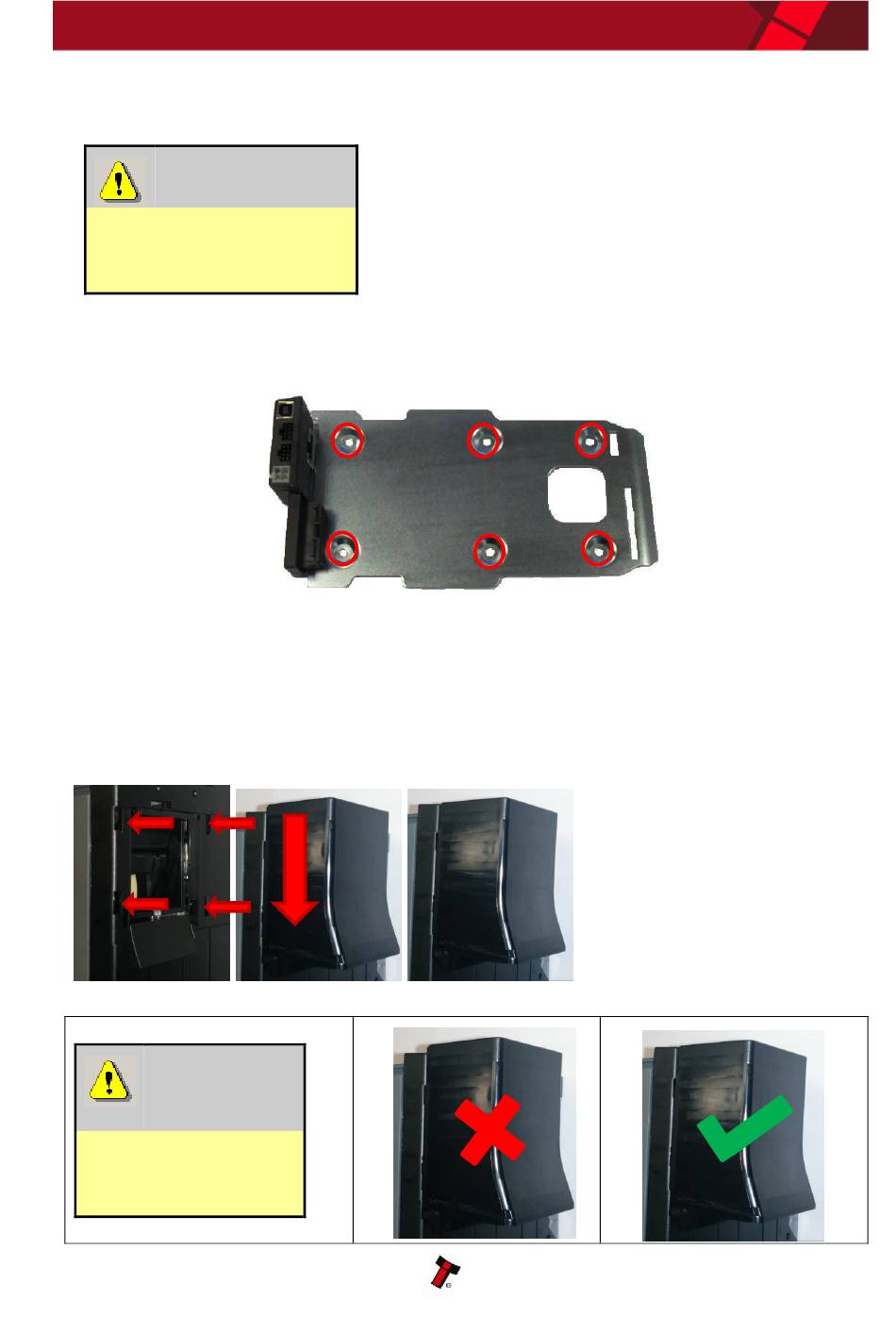

2.3 Fit the payout nozzle to the SMART Coin System

Place nozzle hooks in to the Hopper with Feeder removed. Then push down on the
Nozzle it clip in to place.
WARNING!
Ensure the Nozzle is
firmly clipped and
latched
Copyright © Innovative Technology Ltd 2014
Do not allow screw heads to foul the SMART Coin
System.
--
8
GAXXXX-01
