SMART Coin System Quick Start and Configuration Guide

2 Assembly

Install: Attaching Smart Coin Feeder to SMART Hopper
Machine Type: Access to front – in order to allow access
Entry: Pay-in Chute

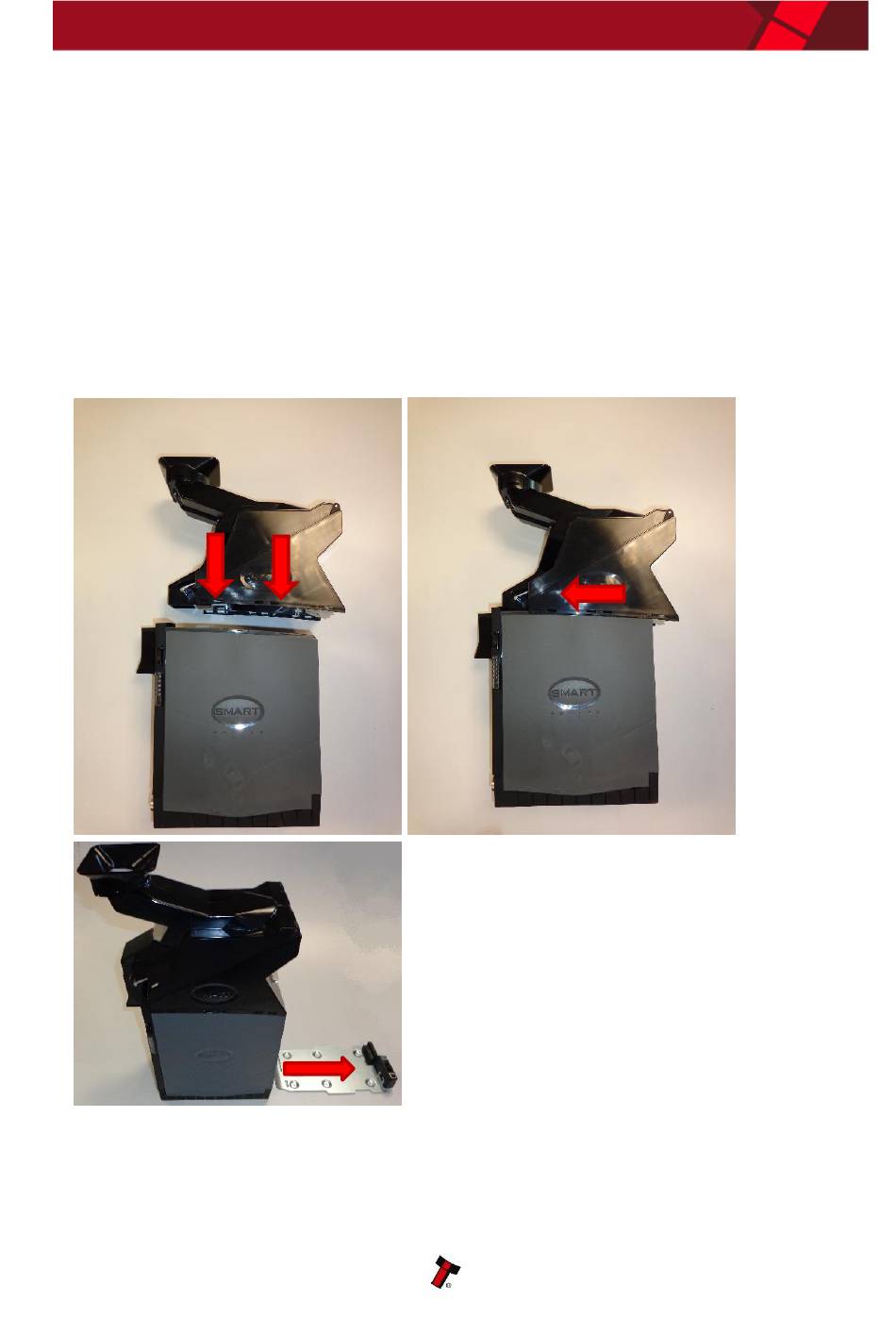

1. Place the feeder on top of the hopper ensuring the feeder is overhanging by
approximately 4cm so as to line up with the latches on the top of the smart
hopper.
2. Slide the Feeder forward until it locks securely in place.
3. Slide the now assembled SMART Coin System on to the base plate the latch will
lock the SMART Coin System in to place.
1
3
