SMART Coin System Quick Start and Configuration Guide
When in operational mode (in a machine) the only connector available is the 8 way
connector on the baseplate.
Information
Only use the 8 way
baseplate connector in the
host machine.

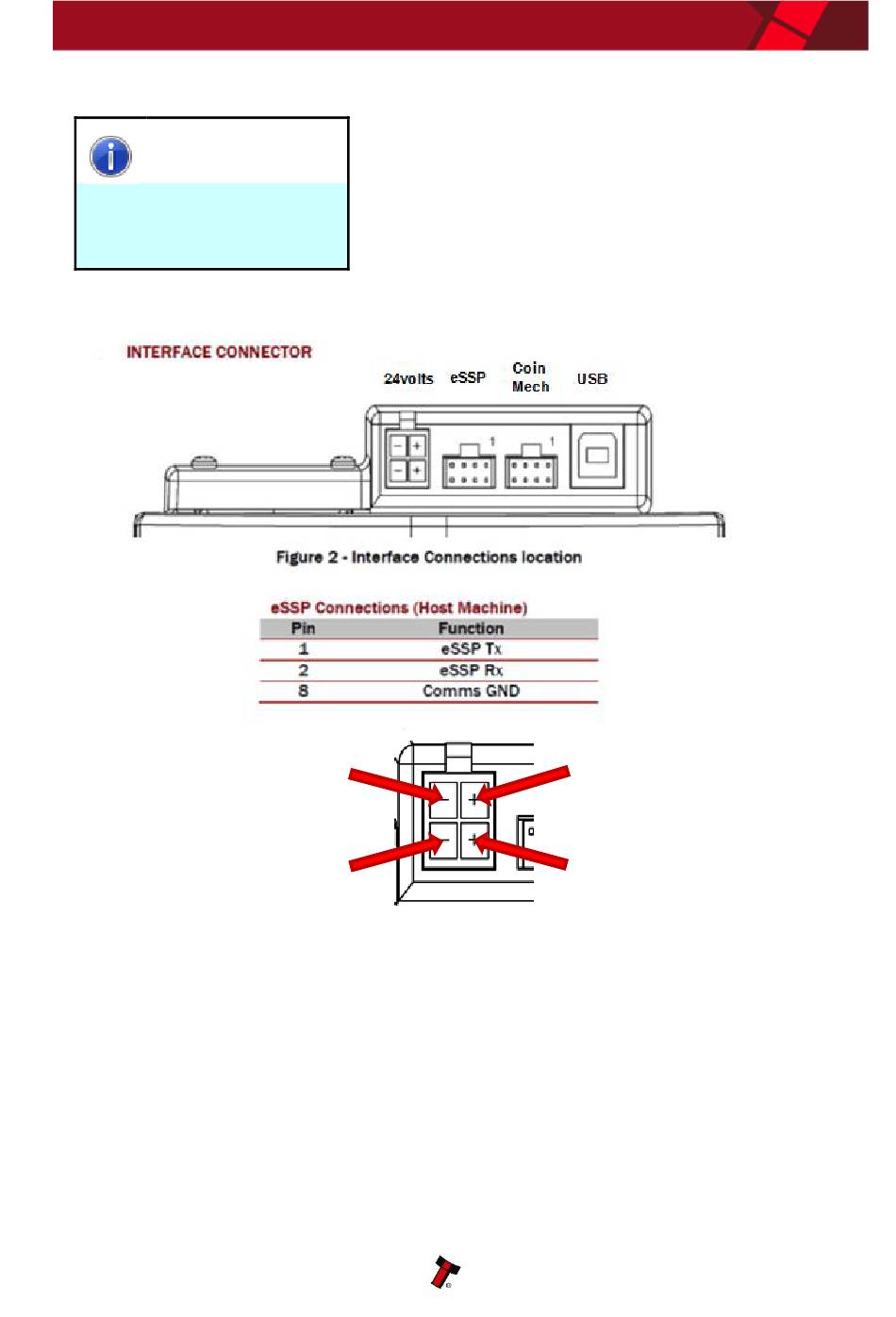

The pin numbering of the socket is shown below, as well as an overview of the socket
connections:
Power connector Pin out
Pin
Description
1
+24V DC
2
0V / Ground
Connection
3
N/C
4
N/C
Copyright © Innovative Technology Ltd 2014
Power (+V & Ground) is always required on pins 1
and 2 of the 4 way connector highlighted 24volts.
Pin 3
Pin 2
Pin 4
Pin 1
