SMART Coin System Quick Start and Configuration Guide

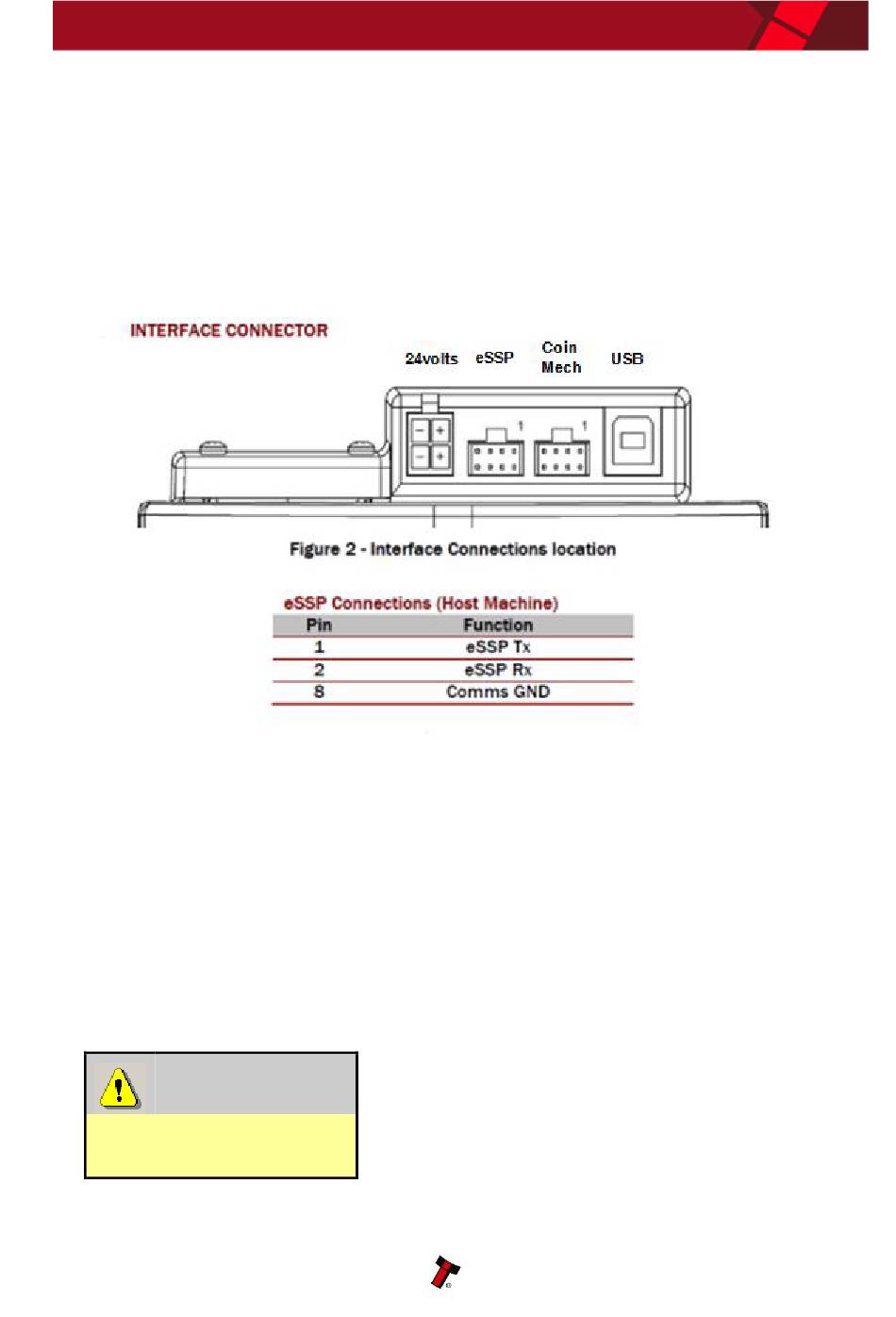

3 Connectors and Pinouts

3.1 Connections

There is only one connecting plug on the SMART Coin System for use by the host. It
is located on the rear of the baseplate please use the connector labelled SSP. The CCT
is legacy connection for use when the hopper is used in the SMART Hopper
configuration for attaching external ccTalk coin accepter. The USB port is primarily for
use during servicing and engineers use.
WARNING!
Do not attempt disassembly

3.2 Operational Connection

Copyright © Innovative Technology Ltd 2014
Do not attempt to disassemble the SMART Coin
System – trying to do this could cause personal
injury and will void the warranty.
