SMART Coin System Quick Start and Configuration Guide

2.2 Baseplate Mounting Requirements

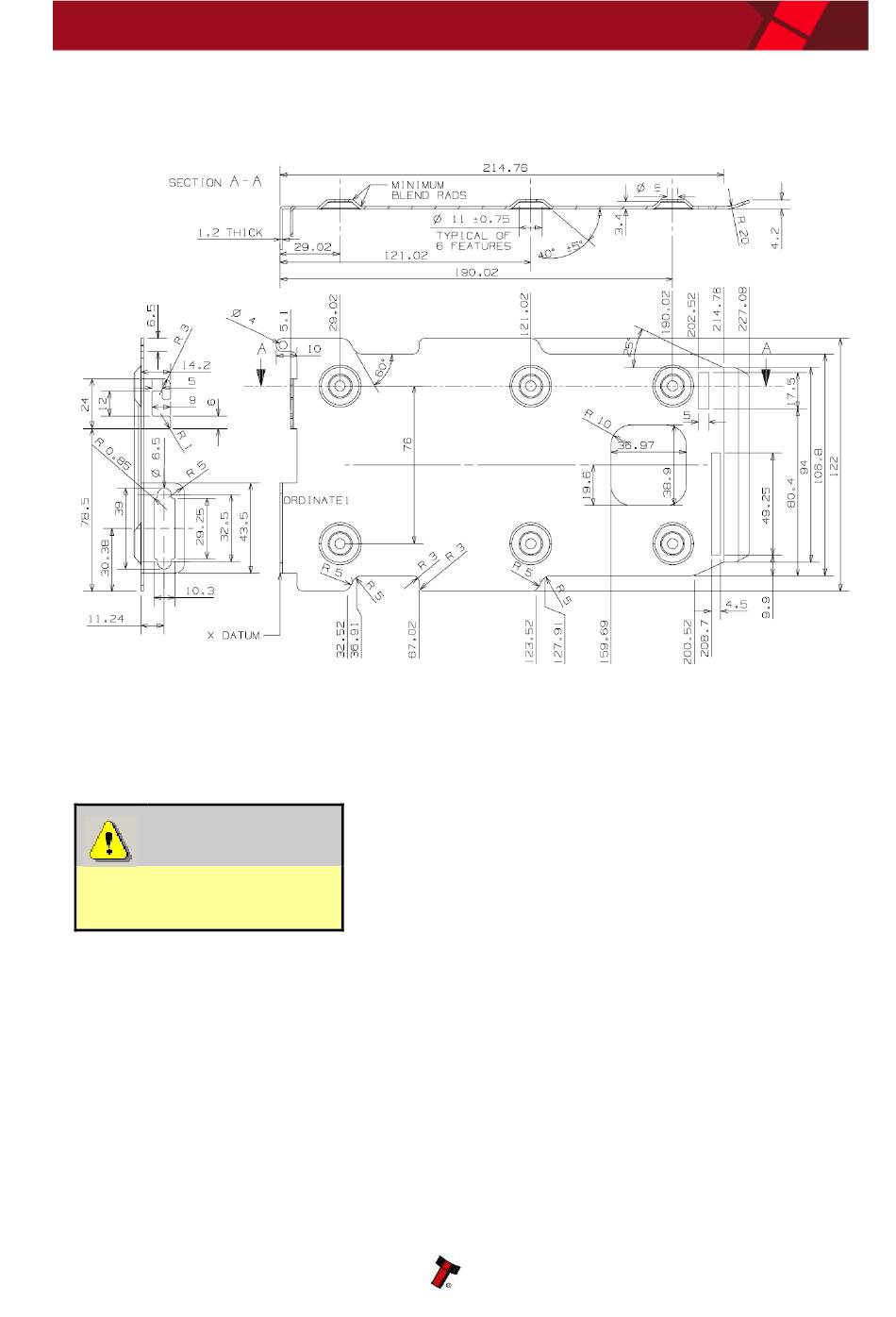

Ensure that the mounting position and note exit hole meets the dimensional
requirements as shown below (all dimensions are in millimetres mm):
The coins fall from the cashbox exit chute and are intended to be caught in the host
machine cashbox.
The maximum thickness of the shelf (on to which the baseplate is mounted) is 10mm
– including any items which protrude below it (such as nuts, washers, screws etc.).
WARNING!
Ensure there is space for
coins to fall clear.
Copyright © Innovative Technology Ltd 2014
Ensure that there is space below the exit chute to
allow the coins to fall clear of the coin exit.
7
