Summary of Contents for weBoost DRIVE REACH
- Page 1 BU-VR-GDE000366-001-032521 A WILSON ELECTRONICS BRAND DRIVE REACH Vehicle Signal Booster Kit ® Installation Guide support.weboost.com 866.294.1660 NEED HELP?
- Page 2 ______ Index Package Contents Mount Outside Antenna STEP 1: Mount Inside Antenna STEP 2: Connect Outside Antenna To Booster STEP 3: Connect Inside Antenna To Booster STEP 4: Connect Power Supply To Booster STEP 5: Booster Light Patterns Troubleshooting Safety Guidelines Specifications Warranty...

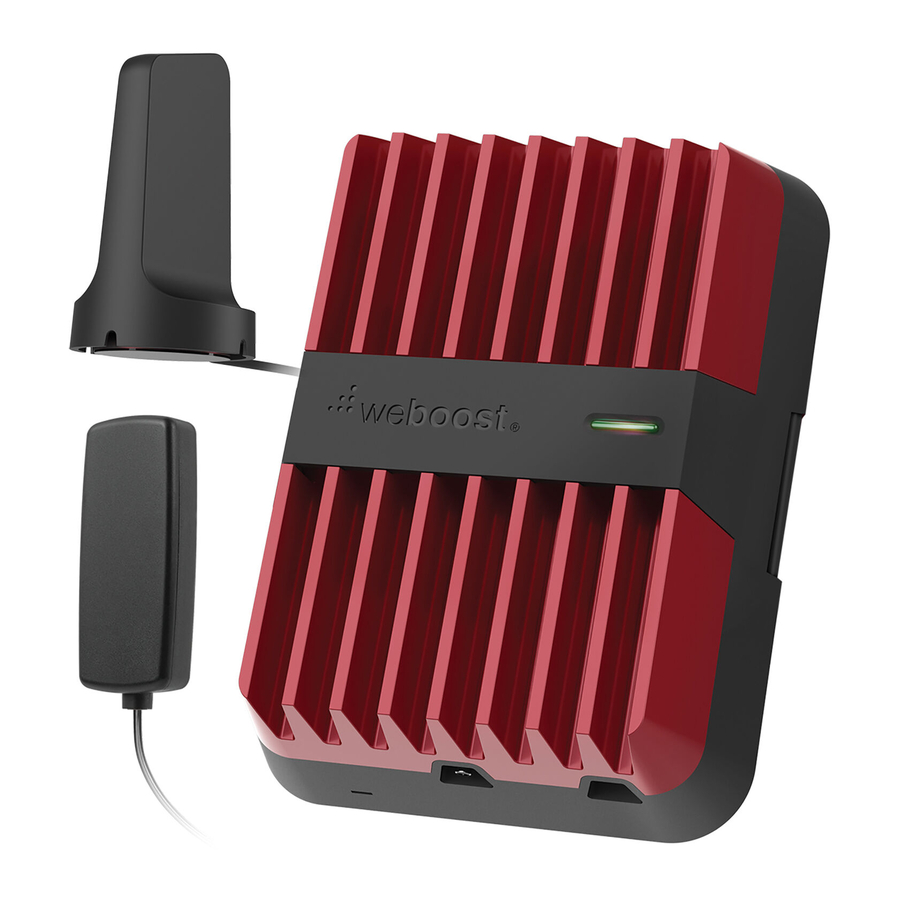

- Page 3 ________ Package Contents Outside Inside Power Adhesive Disk Booster (for use on aluminum Antenna Antenna Cable vehicles) DRIVE REACH VEHICLE SIGNAL BOOSTER...
- Page 4 12 in. away from windows (including sunroofs) NOTE: For aluminum roofs, an Adhesive Disk is included to mount the outside antenna (do not use if outside antenna will magnetize to the top of your vehicle). WORKS WITH ALL VEHICLES VEHICLE SIGNAL BOOSTER DRIVE REACH...
- Page 5 Truck: Cable routed into side door. NOTE: The cable is strong enough that it may be routed under weather stripping and shut in most vehicle doors without damaging the cable. DRIVE REACH VEHICLE SIGNAL BOOSTER...
- Page 6 2-sided adhesive strip provided and attach to the side of the antenna labeled “MOUNTING SIDE”. Then mount to desired location. WARNING: DO NOT MOUNT WHERE AIRBAGS WILL DEPLOY. Inside Antenna Seat Mount Inside Antenna Dash Mount VEHICLE SIGNAL BOOSTER DRIVE REACH...
- Page 7 Antenna To Booster Connect the cable from the Outside Antenna to the port labeled “Outside Antenna” on the Drive Reach booster. NOTE: The Velcro® strip on the bottom of the booster can also be used to keep booster from sliding around.
- Page 8 ______ Step 4: Connect Inside Antenna To Booster Connect the cable from the Inside Antenna to the port labeled “Inside Antenna” on the booster. from Inside Antenna VEHICLE SIGNAL BOOSTER DRIVE REACH...
- Page 9 (more than a day), we recommend you turn the Booster off by switching the rocker to the “OFF” position. This will prevent the Drive Reach from draining the battery in your vehicle.
- Page 10 Refer to Troubleshooting section. Light Off If the Drive Reach Signal Booster’s light is off, verify your power supply has power. NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply.
-
Page 11: Troubleshooting
Note: Horizontal separation of the two antennas typically requires a shorter separation distance than vertical separation. If you are having any difficulties while testing or installing your Booster, contact our weBoost Customer Support team for assistance (866.294.1660). FREQUENTLY ASKED QUESTIONS How can I contact customer support? Customer Support can be reached Monday thru Friday by calling 866.294.1660, or... -
Page 12: Safety Guidelines
______ Safety Guidelines Warnings Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone. - Page 13 ______ Antenna Kit Options The following accessories are certified to be used with the Drive Reach Booster. This radio transmitter 4726A-460061 has been approved by innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated.
-
Page 14: Specifications
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. VEHICLE SIGNAL BOOSTER DRIVE REACH... -
Page 15: Year Warranty
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material... - Page 16 3301 East Deseret Drive, St. George, UT 866.294.1660 www.weboost.com support.weboost.com Copyright © 2019 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000366_Rev01_03.25.21...
