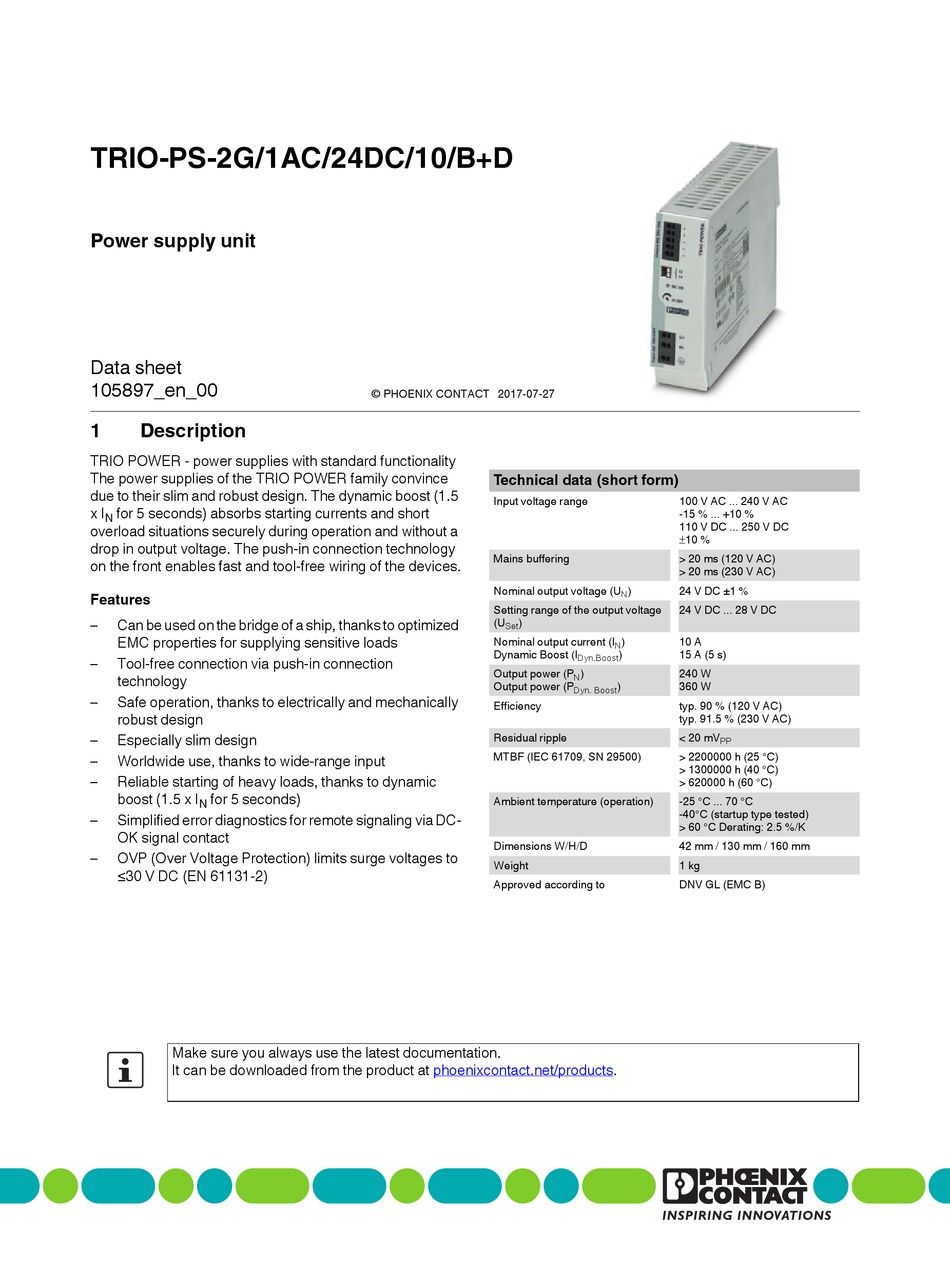

TRIO-PS-2G/1AC/24DC/10/B+D
Power supply unit
Data sheet
105897_en_00
1
Description
TRIO POWER - power supplies with standard functionality
The power supplies of the TRIO POWER family convince
due to their slim and robust design. The dynamic boost (1.5
x I
for 5 seconds) absorbs starting currents and short
N
overload situations securely during operation and without a
drop in output voltage. The push-in connection technology
on the front enables fast and tool-free wiring of the devices.
Features
Can be used on the bridge of a ship, thanks to optimized
EMC properties for supplying sensitive loads
Tool-free connection via push-in connection
technology
Safe operation, thanks to electrically and mechanically
robust design
Especially slim design
Worldwide use, thanks to wide-range input
Reliable starting of heavy loads, thanks to dynamic
boost (1.5 x I
for 5 seconds)
N
Simplified error diagnostics for remote signaling via DC-
OK signal contact
OVP (Over Voltage Protection) limits surge voltages to
≤30 V DC (EN 61131-2)
Make sure you always use the latest documentation.
It can be downloaded from the product at phoenixcontact.net/products.
© PHOENIX CONTACT
2017-07-27
Technical data (short form)
Input voltage range
Mains buffering
Nominal output voltage (U
Setting range of the output voltage
(U
)
Set
Nominal output current (I
Dynamic Boost (I
Output power (P
Output power (P
Efficiency
Residual ripple
MTBF (IEC 61709, SN 29500)
Ambient temperature (operation)
Dimensions W/H/D
Weight
Approved according to
100 V AC ... 240 V AC
-15 % ... +10 %
110 V DC ... 250 V DC
10 %
> 20 ms (120 V AC)
> 20 ms (230 V AC)
)
24 V DC ±1 %
N
24 V DC ... 28 V DC
)
10 A
N
)
15 A (5 s)
Dyn.Boost
)
240 W
N
)
360 W
Dyn. Boost
typ. 90 % (120 V AC)
typ. 91.5 % (230 V AC)
< 20 mV
PP
> 2200000 h (25 °C)
> 1300000 h (40 °C)
> 620000 h (60 °C)
-25 °C ... 70 °C
-40°C (startup type tested)
> 60 °C Derating: 2.5 %/K
42 mm / 130 mm / 160 mm
1 kg
DNV GL (EMC B)
