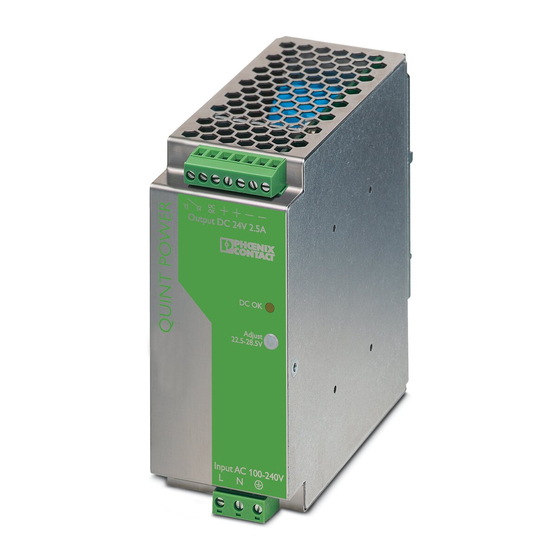

QUINT-PS-100-240AC/24DC/2.5
Single-Phase Primary-Switched Power Supply Unit
INTERFACE
Data Sheet
Description
QUINT POWER devices are 60...960 W DC power supply
units for universal use. This is ensured by the wide-range
input, single and three-phase versions, and an international
approval package.
QUINT POWER stands for guaranteed supply: powerful
capacitors ensure mains buffering of more than 20 ms at full
load.
All three-phase devices provide the full output power, even
in the event of a continuous phase failure.
The POWER BOOST power reserve starts loads with high
inrush currents and ensures that fuses are reliably tripped.
Preventive function monitoring diagnoses impermissible
operating states and minimizes downtimes in your system.
An active transistor output and a floating relay contact are
used for remote monitoring.
Danger
The device contains dangerous live elements and high levels of stored energy.
Never carry out work when the power is turned on.
Risk of burns
The housing temperature can reach high values depending on the ambient temperature and the load of the
device.
Make sure you always use the latest documentation.
It can be downloaded at www.download.phoenixcontact.com.
A conversion table is available on the Internet at
www.download.phoenixcontact.com/general/7000_en_00.pdf.
This data sheet is valid for all products listed on the following page:
100028_04_en
Phone: +49 - 52 35 - 30 0 • Fax: +49 - 52 35 - 34 12 00 • www.phoenixcontact.com
© PHOENIX CONTACT - 12/2005
PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany
www.phoenixcontact.com/salesnetwork
All QUINT POWER devices are idling-proof and
short-circuit proof, and are available with a regulated and
adjustable output voltage of 12, 24, and 48 V DC with output
currents of 2.5, 5, 10, 20, 30, and 40 A.
Power supply units for use in Ex Zone 2, uninterruptible
solutions, AS-i power supply units, and a QUINT diode
complete the product range.
QUINT POWER is a built-in device. Installation
and startup must only be carried out by
qualified personnel. The relevant country-
specific regulations (e.g., VDE, DIN) must also
be observed.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Phoenix Contact QUINT-PS-100-240AC/24DC/2.5
Summary of Contents for Phoenix Contact QUINT-PS-100-240AC/24DC/2.5
- Page 1 This data sheet is valid for all products listed on the following page: PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany 100028_04_en Phone: +49 - 52 35 - 30 0 • Fax: +49 - 52 35 - 34 12 00 • www.phoenixcontact.com...
-
Page 2: Ordering Data
QUINT-PS-100-240AC/24DC/2.5 Ordering Data Product Description Type Order No. Pcs./Pkt. Single-phase primary-switched power supply unit QUINT-PS-100-240AC/24DC/2.5 29 38 57 8 Accessories Description Type Order No. Pcs./Pkt. Assembly adapter for QUINT POWER 2.5 A and 5 A on S7 300 rails QUINT-PS-ADAPTERS7/1... - Page 3 QUINT-PS-100-240AC/24DC/2.5 DC OK Signal Output, Floating Type of output Relay contact, U > 0.9 x U : Contact closed Continuous current 1 A, maximum Maximum switching voltage 30 V AC/DC, maximum General Data Insulation voltage Input/output 4 kV AC (type test)/2 kV AC (routine test) Input/PE 3.5 kV AC (type test)/2 kV AC (routine test)
- Page 4 QUINT-PS-100-240AC/24DC/2.5 Conformance With EMC Directive 89/336/EEC and Low Voltage Directive 73/23/EEC Noise Immunity Test According to EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2 Criterion B Housing Level 4 Air discharge 15 kV Contact discharge 8 kV Electromagnetic HF field EN 61000-4-3...
-
Page 5: Safety Notes And Warning Instructions
QUINT-PS-100-240AC/24DC/2.5 Safety Notes and Warning Instructions Danger Before startup please ensure: The device contains dangerous live elements – The mains has been connected correctly and high levels of stored energy. and protection is provided against electric shock. Never carry out work when the power is turned –... - Page 6 QUINT-PS-100-240AC/24DC/2.5 Mounting Position (55) (122) Figure 4 Mounting position (dimensions in mm) Narrow mounting position: Installation depth Flat mounting position: Installation depth 58 mm (+ DIN rail) 125 mm (+ DIN rail) Narrow Mounting Position (Default Upon Delivery) Assembly Position the module with the DIN rail guideway on the top edge of the DIN rail and then snap it downwards.
- Page 7 QUINT-PS-100-240AC/24DC/2.5 Flat Mounting Position Figure 6 Flat mounting position A flat mounting position can be achieved by mounting the No additional assembly material is required. module onto the DIN rail at a 90° angle. Mount the DIN rail Mounting screws: Torx T10 (torque 0.8...0.9 Nm).
-
Page 8: Connection Of The Connecting Cable
QUINT-PS-100-240AC/24DC/2.5 Connection of the Connecting Cable The device is equipped with COMBICON connectors. This Solid Stranded Torque Stripping connection method enables quick device connection and Length visible isolation of the electrical connection, if required. [mm²] [Nm] [mm] Input 0.2...2.5 0.2...2.5 25...14... - Page 9 QUINT-PS-100-240AC/24DC/2.5 Output Floating Contact + + - - DC OK 2 , 5 2 , 5 30 V AC/DC, 1 A, maximum , 5 - , 5 - j u s j u s , 5 V , 5 V...
- Page 10 QUINT-PS-100-240AC/24DC/2.5 Signal Loop The two signal outputs described above can be easily combined. Output Output Example: Monitoring two devices + - - Use the active alarm output of device 1 and loop in the floating alarm output of device 2. In the event of an error, a group error message is output.
- Page 11 (e.g., decoupling individual devices. diode or DC fuse). This prevents high return currents in the event of a secondary device A maximum of five devices can be connected fault. in parallel. © PHOENIX CONTACT 12/2005 100028_04_en PHOENIX CONTACT...
