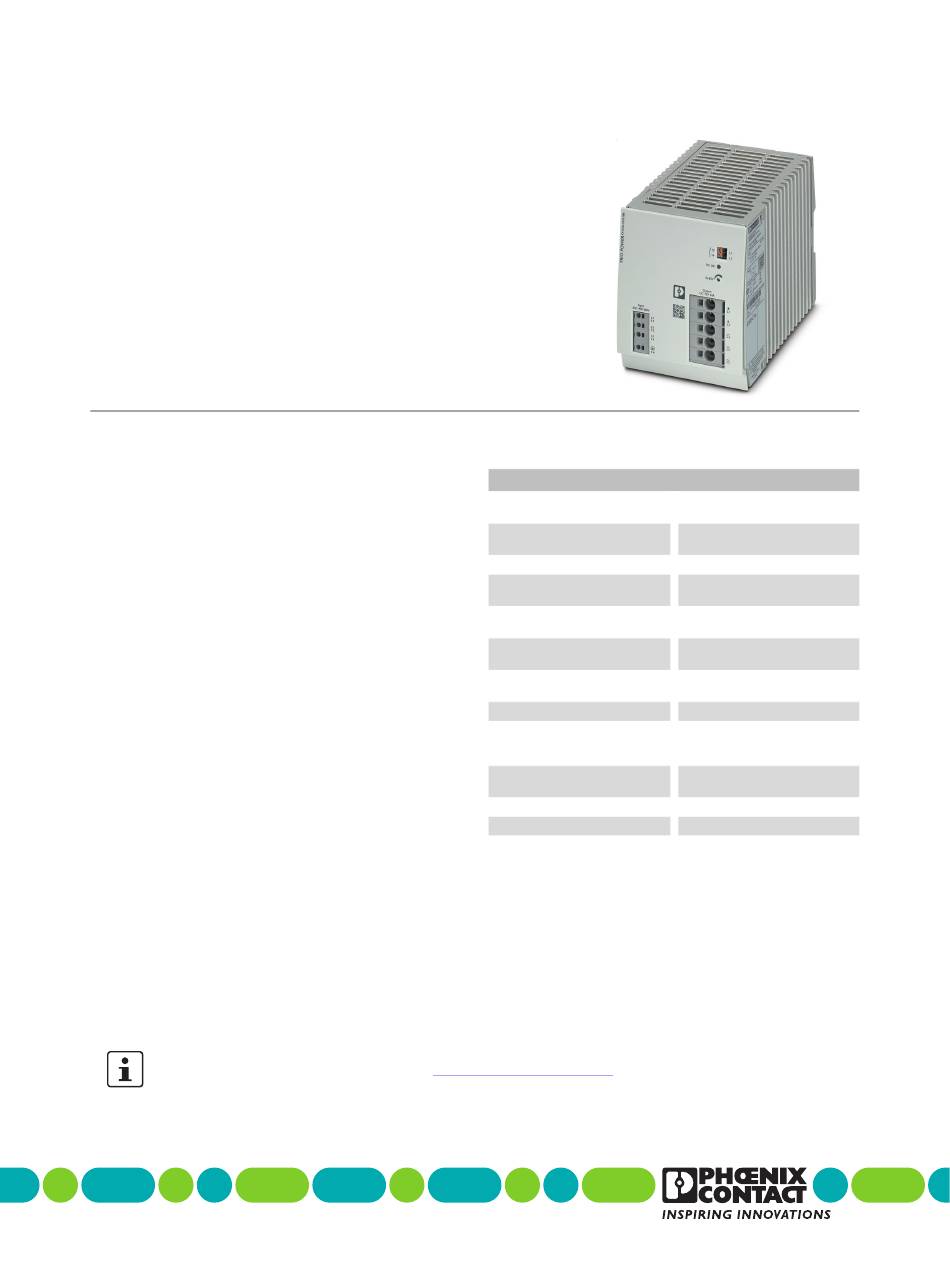

Phoenix Contact TRIO-PS-2G/3AC/72DC/14 Manual

TRIO-PS-2G/3AC/72DC/14
Power supply unit
Data sheet
109785_en_00
1

Description

TRIO POWER - power supplies with standard functionality
The power supplies of the TRIO POWER family convince
due to their slim and robust design. The dynamic boost (1.5
x I for 5 seconds) absorbs starting currents and short
N
overload situations securely during operation and without a
drop in output voltage. The push-in connection technology
on the front enables fast and tool-free wiring of the devices.
Features
– Tool-free connection via push-in connection
technology
– Safe operation, thanks to electrically and mechanically
robust design
– Especially slim design
– Worldwide use, thanks to wide-range input
– Reliable starting of heavy loads, thanks to dynamic
boost (1.5 x I for 5 seconds)
N
– Simplified error diagnostics for remote signaling via DC-
OK signal contact
– OVP (Over Voltage Protection) limits overvoltage
to ≤100 V DC
Make sure you always use the latest documentation.
It can be downloaded from the product at phoenixcontact.net/products.
© PHOENIX CONTACT 2020-09-14
Technical data (short form)
Input voltage range
Mains buffering
Nominal output voltage (U
Setting range of the output voltage
(U )
Set
Nominal output current (I
Dynamic Boost (I
Output power (P
Output power (P
Efficiency
Residual ripple
MTBF (IEC 61709, SN 29500)
Ambient temperature (operation)
Startup type tested
Dimensions W/H/D
Weight
3x 400 V AC ... 500 V AC
-20 % ....+15 %
> 10 ms (400 V AC)
> 20 ms (480 V AC)
) 72 V DC ±1 %
N
70 V DC ... 85 V DC
) 14 A
N
) 21 A (5 s)
Dyn.Boost
) 1008 W
N
) 1512 W
Dyn. Boost
> 94.6 % (400 V AC)
> 94.3 % (480 V AC)
≤ 300 mV
PP
> 1730000 h (25 °C)
> 1051000 h (40 °C)
> 510000 h (60 °C)
-25 °C ... 70 °C (> 60 °C Derating:
2.5 %/K)
-40 °C
110 mm / 130 mm / 160 mm
2.5 kg
