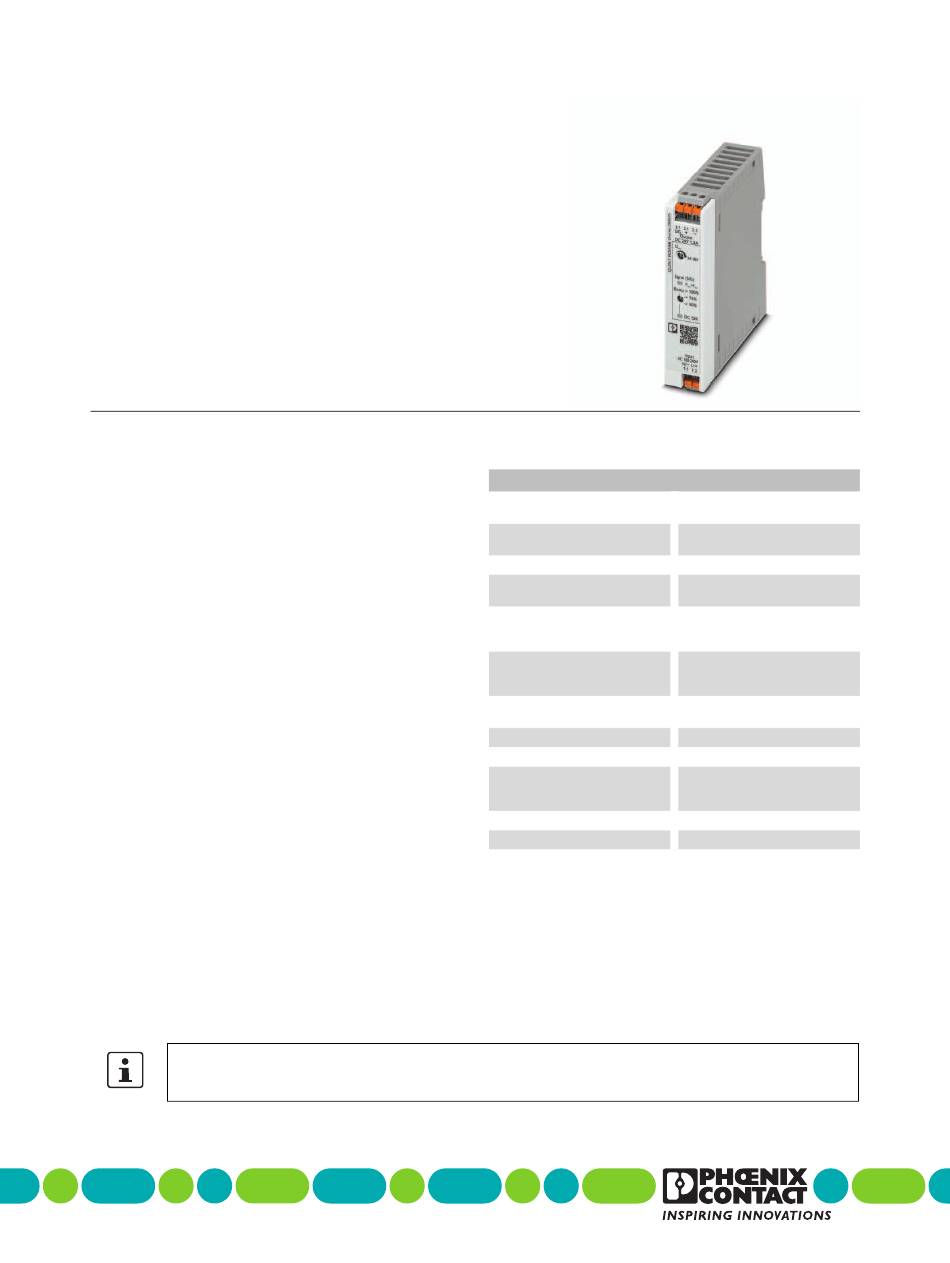

QUINT4-PS/1AC/24DC/1.3/PT

Power supply unit

Data sheet
108338_en_00
1

Description

QUINT POWER power supplies are exceptionally small yet
offer superior system availability in the sub 100 W power
range.
Powerful
Static boost of up to 125% (P
Dynamic boost of up to 200% (P
Space-saving
Slim design
Slim design for 120 mm control boxes
Preventive
Function monitoring through adjustable signaling of
power thresholds or output voltage
Flexible connection technology
Tried-and-tested screw connection
Fast Push-in connection
Durable
Efficiency up to 90%
Low power dissipation
All technical specifications are nominal and refer to a room temperature of 25 °C and 70% relative humidity at
100 m above sea level.
© PHOENIX CONTACT
) for a sustained period
N
) for 5 s
N
2017-12-20
Technical data (short form)
Input voltage range
Mains buffering
Nominal output voltage (U
)
N
Setting range of the output voltage
(U
)
Set
Nominal output current (I
)
N
Static Boost (I
)
Stat.Boost
Dynamic Boost (I
)
Dyn.Boost
Output power (P
)
N
Output power (P
)
Stat. Boost
Output power (P
)
Dyn. Boost
Efficiency
Residual ripple
MTBF (IEC 61709, SN 29500)
Ambient temperature (operation)
Dimensions W/H/D
Weight
100 V AC ... 240 V AC -15 % ...
+10 %
> 43 ms (120 V AC)
> 43 ms (230 V AC)
24 V DC
24 V DC ... 28 V DC
1.3 A
1.625 A (≤ 40 °C)
2.6 A (≤ 60 °C (5 s))
30 W
38 W
60 W
typ. 89.2 % (120 V AC)
typ. 90.7 % (230 V AC)
< 40 mV
PP
> 1107000 h (40 °C)
-25 °C ... 70 °C
-40°C (startup type tested)
> 60 °C Derating: 2.5 %/K
22.5 mm / 106 mm / 90 mm
0.188 kg
