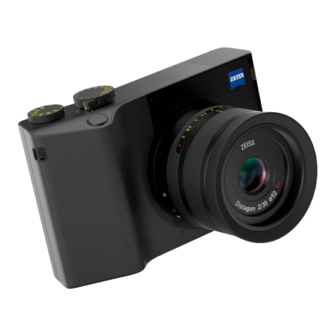

Zeiss ZX1 User Manual

Hide thumbs Also See for ZX1:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Zeiss ZX1

Summary of Contents for Zeiss ZX1

  • Page 2: Hardware Overview

    HARDWARE OVERVIEW...
  • Page 4 AF ASSIST LAMP The AF assist lamp lights up to illuminate the desired object in autofocus mode and gives feedback about the self-timer countdown. AF/MF SWITCH Use the AF/MF switch to choose between automatic and manual focus. APERTURE RING Use the aperture ring to control how much light enters the lens and reaches the sensor. DIOPTER CONTROL Use the diopter control while looking through the electronic viewfinder to adjust the diopter and accommodate to differences in vision.

  • Page 5: Power Switch

    ISO SPEED DIAL Use the ISO speed dial to control how sensitive the sensor is to the light that reaches it. POWER SWITCH The power switch is a 3-position toggle. Use it to switch on the camera, to switch between Still and Video Shooting mode, to switch to standby mode or to switch off the camera.

  • Page 6: Scope Of Supply

    SCOPE OF SUPPLY  ZEISS ZX1 camera  Lens shader  Lens cap  Protection ring  Battery  AC power adapter  USB-C cable  Camera strap and accessories  Quick guide  Safety and warranty leaflet...

  • Page 7: Safety Instructions

    SAFETY INSTRUCTIONS Please read the followingsafety instructions to prevent personal injury or damage to the ZX1 camera. Safety and handling  Do not point the camera directly toward bright light, e. g. the sun. This may lead to serious eye injuries.
  • Page 8 CAUTION – Damage to property.  Keep the camera away from strong magnetic fields.  Switch off the camera when camera use is prohibited due to -electromagnetic waves, e. g. in airplanes or hospitals.  Unplug the power adapter when not in use. ...

  • Page 9: Battery And Power Adapter

     There is no risk of leaking battery electrolyte. INTENDED USE The ZX1 camera is intended for capturing pictures and videos in dry indoor and outdoor spaces only. Liability and warranty claims are excluded in the event of improper use.
  • Page 10 REGULATORY INFORMATION ACCESSING THE REGULATORY INFORMATION ON THE CAMERA 1. Switch to Settings mode. 2. Tap on the General settings icon. 3. Go to DEVICE› ­REGULATORY INFO to view regulatory information on the camera.

  • Page 11: Fcc Information (Usa)

    Directive 2014/5 3/EU and bears the CE test mark. The EU declaration of conformity can be found at www.zeiss.com/zx1/register. FCC INFORMATION (USA) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 12 Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual.
  • Page 13 IC INFORMATION (CANADA) This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’...
  • Page 14 Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l'appareil peut être conservé aussi loin que possible du corps de l'utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible.

  • Page 15: South Korea

    SOUTH KOREA 이장치는이동전화, Wi-Fi 또는블루투스장치등무선통신장치와매우근접한장소에서사용할경우오작동을일으킬가능성이 있습니다. 해당무선설비는전파혼신가능성이있으므로인명안전과관련된서비스는할수없음. 해당무선설비는 5150~5250GHz 대역에서실내에서만사용할수있음 본제품의전자파흡수율시험은 0 cm 거리에서측정되었습니다. (This product may cause malfunction if it is used nearby wireless communication equipment such as a cell phone, an Wi-Fi or Bluetooth device or etc. This wireless equipment cannot provide a service related to human safety since it may cause radio interference.
  • Page 16 36 megapixels (7,488 x 4,992 px) ISO sensitivity: 80 - 51,200 1/8,000 - 1 sec – infinite Shutter speed: LENS Type: ZEISS Distagon lens, eight elements in five groups, two double-sided aspherical lens elements Aperture: f2-22 Focal length: 35 mm Minimum focus:...

  • Page 17: Power Adapter

    BATTERY Type: DD-PS1E / DD-PS1A Rechargeable Li-ion Battery Rated capacity: 3,190 mAh Rated voltage: 7.2 V DC Dimensions: 40.1 x 71.14 x 20.8 mm Weight: ~108 g +/-15 % Operating temperature: 0 °C to +40 °C / +32 °F to +104 °F Battery life: 1 day of typical use, ~250 frames POWER ADAPTER...
  • Page 18 SHOOTING DETAILS Drive modes: Single Continuous (max. 5fps) Self-timer Interval, AE Bracketing Enhanced Imaging Panorama Focus modes: AF-S (single shot auto focus) AF-C (continuous auto focus) Manual focus Focus area: 17 x 15 spots, 1x1, 3x3, 5x5 Lock: F and AE lock Stabilization: CONNECTIVITY Wireless:...
  • Page 19 FLASH No built-in flash, additional flash available AUDIO Built-in microphone and speaker...
