Summary of Contents for Zeiss Axiocam 208 color

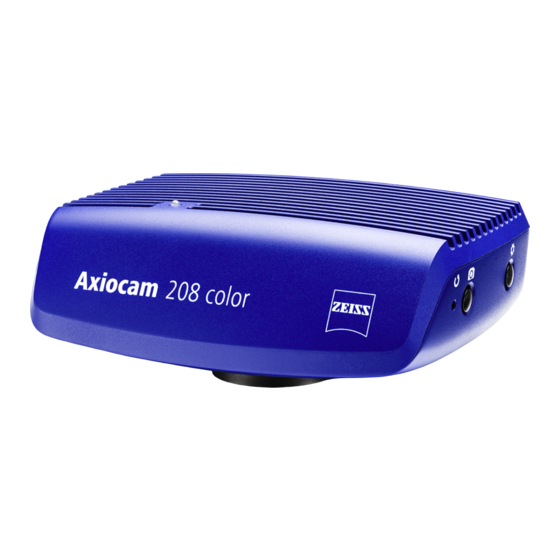

- Page 1 User Guide ZEISS Axiocam 208 color / 202 mono Microscope Camera...
-
Page 3: Table Of Contents
Powering the camera via microscope ..........25 5.3.2 Powering the camera via mains supply..........25 Connecting the camera to a display (without PC) .......... 26 User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... - Page 4 10.1 Optical system ....................48 10.2 Cleaning the infrared filter or protective glass ..........48 10.3 Updating the firmware ................. 49 11 Disposal and recycling..................50 User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
-
Page 5: About This Guide
The safety notes in this document follow a system of risk levels, defined in the following manner: CAUTION Risk of personal injury CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate personal injury. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 6: Text Formats And Conventions
Web links appear in blue text. To open the linked website, simply click on the link. Please make sure you have an internet connection established before opening the web link. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 7: Safety
2 Safety 2.1 Prevention of hazards The Axiocam 208 color and Axiocam 202 mono have been manufactured and tested by ZEISS ac- cording to the regulations specified in CE and has left the manufacturer’s premises in perfect working order. In order to ensure that this condition is maintained and to avoid any risks when operating the system, the user must comply with any notes and warnings contained in this man- ual. -
Page 8: Limitation Of Liability
2.3 Warranty ZEISS shall be exempt from any warranty obligations should the user fail to observe the safety reg- ulations. ZEISS only guarantees the safety, reliability, and performance of the system if the safety notes are closely observed. -
Page 9: Position Of The Warning Labels
Follow the notes in the instruction manual and the supplied documents. For more infor- mation, see Prevention of hazards [ 7]. Tab. 1: List of attached Warning Labels User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 10: Technical Data
§ Image storage format tiff or jpg § § Video stream format § § Live frame rate via HDMI 30 fps @ Ultra HD (4K) User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... - Page 11 Order number 426570-9000-000 Info Computer hardware, operating system, and software may decrease the frame rates. All specifi- cations are subject to change without notice. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
-
Page 12: Spectral Sensitivity
12 or 8 bit / pixel Cooling Passive cooling Exposure Time Range (Integration time) 0.3 ms - 2 s Image enhancement functions Active denoising, active sharpening User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... - Page 13 Environmental conditions for storage and op- +10°C to +40°C, max. 75% relative air hu- eration midity at 35°C, no condensation, free air cir- culation required, indoor use User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
-
Page 14: Spectral Sensitivity
The accordance to the relevant specification is indicated by a respective symbol on the unit. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 15: Symbols On The Camera
Australia and New Zealand: complies with AN/NZS 60950.1:2011 Inc A1 EN 55032:2012 Book 60335 up to 36 volts Conforms to: § UL STD. 60950-1 § UL STD. 1310 Certified to: User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... - Page 16 § IEC 60601-1:2005+A1 § EN 60601-1:2006+A1:2013+A12:2014 § IEC 60601-1-11:2015IEC 60601-1-11:2015 § EN 60601-1-11:2015 § 60950-1:2006+A11:2009+A1:2010+A12:2 011+A2:2013 JAPAN TUV R-PSE, certified to: § J60950-1(H26) § J55022(H22) User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
- Page 17 Construction of output connector CE Mark, tested to comply with: § EN 55032.2012+AC.2013 § EN 61000-3-2.2014 § EN 61000-3-3.2013 § EN 60601-1-2.2015 § EN 55024.2010 Indoor use only User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
- Page 18 Description Equipment protected throughout by double insulation or reinforced insulation Complies with EU Directive 2012/19/EU (WEEE) Tab. 3: List of attached labels concerning standards and regulations User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
-
Page 19: Shipment
Optical USB-Scroll Mouse 000000-0626-245 Keyboard, USB, Language DE 000000-0626-267 Keyboard, USB, Language US 426570-9110-000 Wi-Fi dongle package containing Wi-Fi Don- gle and USB adaptor Type-C to Type-A User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 20: Axiocam 202 Mono
Optical USB-Scroll Mouse 000000-0626-245 Keyboard, USB, Language DE 000000-0626-267 Keyboard, USB, Language US 426570-9110-000 Wi-Fi dongle package containing Wi-Fi Don- gle and USB adaptor Type-C to Type-A User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 21: Connecting The Camera
Communication and image data transfer HDMI port Image data transfer to a certified monitor, TV or pro- jector 5.1.2 Camera controls Fig. 5: Camera operator panel User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 22: Accessories
Type-A USB flash drive, Type C and Connection to camera (Type-C) or to Type A USB hub (Type-A) for immediate im- age and video storage User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... - Page 23 Monitor TFT 32" 4K For display of camera image and op- (not supplied in package, erating the OSD menu please order seperately: Order No. 410350-3201-000) User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
-
Page 24: Mounting The Camera To The Microscope
NOTICE Loss of warranty The Axiocam 208 color is delivered with an integrated IR filter (infrared cut filter). The Axiocam 202 mono is delivered with a protective glass to shield the camera against dust and to reduce optical interferences. -
Page 25: Connecting The Camera To The Power Supply
5.3 Connecting the camera to the power supply When connected to Axioscope 5/7 or Axiolab 5, the Axiocam 208 color or the Axiocam 202 mono are powered by the microscope. Otherwise the cameras have to be connected to the sup- ply mains via the plug-in power supply. -
Page 26: Connecting The Camera To A Display (Without Pc)
OSD menu functions. Certain HDMI functions (e.g. audio, com- mands from monitor to camera) are not supported. Info If you connect the Axiocam 208 color / 202 mono to a monitor, these are the minimal monitor requirements: §... -
Page 27: Connecting Camera Via Ethernet
Follow the subsequent instructions to directly connect your camera to the Wi-Fi device: 1. Select As an access point from the Choose WLAN mode menu. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 28: Connecting The Camera To A Certified Pc
1. Insert the USB 3.0 cable's Type-C connector into the corresponding socket on the camera. 2. Insert the USB 3.0 cable's Type-A connector into the corresponding socket on the PC. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 29: Function Indicator Signals
Snapping/recording in process, and saving data to USB flash drive Red flash Firmware updating/factory resetting Pink flash No USB flash drive or the drive is full No power supplied User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 30: On Screen Display (Osd) Menu
1. To open the OSD menu, press the microscope stand's Snap button and Stage control button simultaneously. The OSD menu opens on your display device. Info For more information, please refer to the Axioscope 5/7/Vario operating manual. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 31: Opening Menu Via Network Browser
Name Description Home button Opens the Home menu. Snap button Snaps a single image. Record button Starts a video recording. A time counter is displayed. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... - Page 32 Enables you to manually re-adjust the exposure time, e.g. when the Auto Exposure mode doesn't deliver ap- propriate results. When pushing the button, the following controls ex- pand: User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
- Page 33 § The thumbnail can be closed by clicking the Close symbol. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
-
Page 34: Settings Menu
System lnformation Shows the status of the entire camera/microscope sys- Back Opens the previous menu Microscope System Set- Opens the Microscope System Settings menu tings User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 35: Image Settings Menu
0.45. For Axiocam 202 mono the default gamma value is 1.2. Optimize Pixel Correc- Corrects dead and hot pixels in the image. tion button Optimize Denoise but- Reduces noise. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 36: Microscope System Menu
For example, the microscope information can be updated if a new part is installed. If required, a configuration wizard guides through the entire configuration setup. Fig. 10: Microscope System Settings menu User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... - Page 37 Fig. 11: Shading correction menu 1. Move in the reflector module and the objective to be configured. 2. Turn on the light source to be configured. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
-
Page 38: Operating System Menu
The camera restarts automatically for the new reso- lution to take effect. § If the connected monitor does not support 4K it au- tomatically switches back to 1080p after 20 sec- onds. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... - Page 39 A counter number is appended to each filename by default. Set Filename after each Activates a prompt after each image capturing to man- Snap ually set the filename. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
- Page 40 Fig. 14: Bright Pixel Correction menu Name Description Correct Initiates Bright Pixel Correction. Reset Restores the factory default Bright Pixel Correction con- figuration. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
- Page 41 Either cover the camera properly or reset the Bright Pixel configuration before restarting the procedure. The Bright Pixel Correction procedure is applied. The camera reboots after a successful procedure. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
-
Page 42: Installing Software And Drivers
7.1 Installing software on PC To acquire images with the Axiocam 208 color or the Axiocam 202 mono via PC, you must install ZEISS software (e.g. ZEN or Labscope ). You will find the installation files on the USB flash drive delivered. -
Page 43: Acquiring Images And Videos
ZEISS 8 Acquiring images and videos Due to the fact that image acquisition is already covered in the ZEISS software manuals, image ac- quisition in ZEISS software is not a part of this guide. For more information on image acquisition with these software products, please refer to the corresponding software manuals and online help. -
Page 44: Image Acquisition With Labscope
Settings menu on your PC monitor iPad. Info For support in using Labscope, visit our Forum online http://forums.zeiss.com/microscopy/com- munity/forumdisplay.php?f=38. Please check the Labscope threads for problem-solving notes. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 45: Troubleshooting
208 color does not corre- ture setting. If necessary, reduce the spond to the image seen color temperature to the lowest value through the eyepieces. possible. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 46: Camera
The buffer battery is empty. Please contact your local ZEISS service organization to change the battery. The expected battery lifetime is ap- prox. 4-5 years. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 47: Labscope
9.3 Labscope Info For support in using Labscope, visit our Forum online http://forums.zeiss.com/microscopy/com- munity/forumdisplay.php?f=38. Please check the Labscope threads for problem-solving notes. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 48: Maintenance Plan
1. Use a soft brush or cotton to wipe away dry dust from the front side of the infrared filter or the protective glass. 2. Use cotton and cleaning fluid for optics to wipe away more serious contamination from the infrared filter. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 49: Updating The Firmware
Note that the update procedure takes several minutes. à Do not operate the camera or unplug the USB flash drive during the update procedure. The firmware is updated. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001... -
Page 50: Disposal And Recycling
This product must not be disposed of with domestic waste or using municipal waste disposal services. In the event of resale, the seller must inform the buyer of the need to dispose of the product appropriately. User Guide ZEISS Axiocam 208 color / 202 mono | en-US | Rev.1 | 426570-7011-001...
