Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

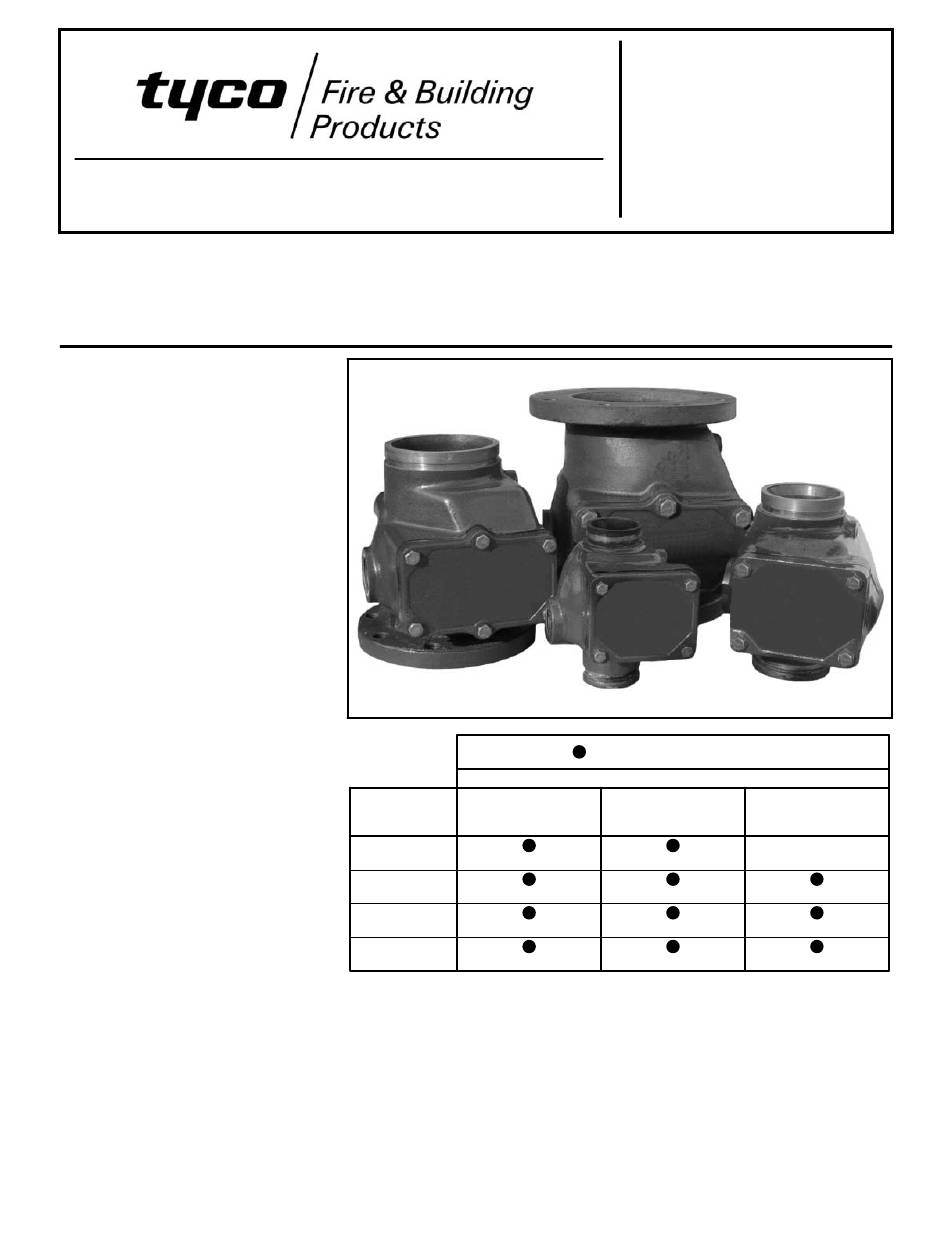

Model AV-1-300 Alarm Check Valve, 300 psi (20,7 bar)
2-1/2, 4, 6, & 8 Inch (DN65, DN100, DN150 & DN200)
Vertical or Horizontal* Installation
General
Description
The Model AV-1-300 Alarm Check
Valves are divided seat ring, rubber
faced clapper, waterflow alarm check
valves that are intended for use in wet
pipe (automatic sprinkler) fire protec-
tion systems. They may be installed
vertically or horizontally*, and they are
designed to automatically actuate
electric and/or hydraulic alarms when
there is a steady flow of water into the
system that is equivalent to the dis-
charge rate of one or more sprinklers.
A separately ordered, Model RC-1 Re-
tard Chamber (TFP920) is required for
installations subject to variable pres-
sures. It is used to help prevent false
alarms associated with pressure vari-
ations in public water supplies.
The AV-1-300 Alarm Check Valve
Trim includes pressure gauges to
monitor system pressure conditions, a
by-pass check valve, a main drain
valve, and an alarm test valve. The
bypass check valve reduces the pos-
sibility of false alarms by permitting
slow as well as small transient in-
creases in water supply pressure to be
passed through to the system without
opening the waterway clapper.
WARNING
The Model AV-1-300 Alarm Check
Valves described herein must be in-
stalled and maintained in compliance
with this document, as well as with the
applicable standards of the National
Fire Protection Association, in addition
to the standards of any other authori-
ties having jurisdiction. Failure to do
so may impair the integrity of these
devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or manufac-
turer should be contacted relative to
any questions.
Page 1 of 22
Groove
Nominal
x
Valve Size
Groove
2-1/2 Inch
(DN65)
22 lbs. (10,0 Kg)
4 Inch
(DN100)
45 lbs. (20,4 Kg)
6 Inch
(DN150)
68 lbs. (30,9 Kg)
8 Inch
(DN200)
129 lbs. (58,6 Kg)
* 4, 6, and 8 Inch (DN100, DN150, and DN200) Valve Sizes
MARCH, 2006
End Connection Available
Inlet x Outlet
Flange
x
Groove
28 lbs. (12,7 Kg)
51 lbs. (23,1 Kg)
62 lbs. (28,1 Kg)
78 lbs. (35,4 Kg)
93 lbs. (42,2 Kg)
148 lbs. (67,1 Kg)
167 lbs. (75,8 Kg)
Flange
x
Flange
N/A
TFP910
Advertisement
Table of Contents
Related Manuals for Tyco AV-1-300
Summary of Contents for Tyco AV-1-300
- Page 1 Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500 Model AV-1-300 Alarm Check Valve, 300 psi (20,7 bar) 2-1/2, 4, 6, & 8 Inch (DN65, DN100, DN150 & DN200) Vertical or Horizontal* Installation General Description The Model AV-1-300 Alarm Check...
- Page 2 8 Inch (DN100. DN150, and DN200) Valves with ISO threaded ports have a DN50 inch main drain connection. FIGURE 1 2-1/2, 4, 6 & 8 INCH (DN65, DN100, DN150 & DN200) MODEL AV-1-300 ALARM CHECK VALVE — ASSEMBLY —...
- Page 3 14 feet of 2-1/2 inch Sch. 40 pipe for the 2-1/2 inch AV-1-300 Valve calculated on a typical flow rate of 250 GPM. 23 feet of 4 inch Sch. 40 pipe for the 4 inch AV-1-300 Valve calculated on a typical flow rate of 600 GPM.
-
Page 4: Technical Data
DRAIN BEGINS TO FILL VALVE WATERFLOW Threaded port connections for the THROUGH SEAT AV-1-300 Valves are available NPT RING GROOVE AND threaded or threaded per ISO 7/1 as ALARM PORT detailed in the Ordering Procedure section. Valves with NPT threaded... -
Page 5: Design Criteria
TFP910 Page 5 of 22 could also cause the waterway Clap- Design Criteria Installation per to cycle open and shut during an inspector’s test or during a discharge In planning the installation, considera- NOTES by a single sprinkler. tion must be given to the disposal of Proper operation of the Model AV-1- the large quantities of water that may 300 Alarm Check Valves depends... - Page 6 (NORMALLY SHOWN RESTRICTION CLOSED) ASSEMBLY, SEE FIGURE 3 1-1/4 INCH NPT CONNECTION TO DRAIN FIGURE 4 — PART 1 OF 3 VERTICAL CLOSED DRAIN TRIM — STANDARD ORDER — FOR 2-1/2 INCH (DN65) MODEL AV-1-300 ALARM CHECK VALVES (52-204-2-050) —...
- Page 7 SHOWN CLOSED) 2 INCH NPT CONNECTION TO DRAIN FIGURE 4 — PART 2 OF 3 VERTICAL CLOSED DRAIN TRIM — STANDARD ORDER — SEMI-PREASSEMBLED — FOR 4 & 6 INCH (DN100 & DN150) MODEL AV-1-300 ALARM CHECK VALVES (52-204-2-951) —...
- Page 8 8 INCH (DN200) FLANGE x GROOVE SHOWN 2 INCH NPT CONNECTION TO DRAIN FIGURE 4 — PART 3 OF 3 VERTICAL CLOSED DRAIN TRIM — STANDARD ORDER — SEMI-PREASSEMBLED — FOR 8 INCH (DN200) MODEL AV-1-300 ALARM CHECK VALVES (52-204-2-952) —...
- Page 9 FUNNEL 1-1/4 INCH NPT 1-1/4 INCH NPT CONNECTION SUPPORT CONNECTION TO DRAIN TO DRAIN FIGURE 5 — PART 1 OF 3 VERTICAL OPEN DRAIN TRIM — SPECIAL ORDER — FOR 2-1/2 INCH (DN65) MODEL AV-1-300 ALARM CHECK VALVES (52-204-2-053) —...
- Page 10 2 INCH NPT TO DRAIN CONNECTION TO DRAIN FIGURE 5 — PART 2 OF 3 VERTICAL OPEN DRAIN TRIM — SPECIAL ORDER — SEMI-PREASSEMBLED — FOR 4 & 6 INCH (DN100 & DN150) MODEL AV-1-300 ALARM CHECK VALVES (52-204-2-954) —...
- Page 11 2 INCH NPT FUNNEL CONNECTION 1-1/4 INCH NPT TO DRAIN CONNECTION TO DRAIN FIGURE 5 — PART 3 OF 3 VERTICAL OPEN DRAIN TRIM — SPECIAL ORDER — SEMI-PREASSEMBLED — FOR 8 INCH (DN200) MODEL AV-1-300 ALARM CHECK VALVES (52-204-2-955) —...
- Page 12 ASSEMBLY, SEE FIGURE 3 2 INCH NPT CONNECTION TO DRAIN FIGURE 6 — PART 1 OF 2 HORIZONTAL CLOSED DRAIN TRIM — SPECIAL ORDER — FOR 4 & 6 INCH (DN100 & DN150) MODEL AV-1-300 ALARM CHECK VALVES (52-204-2-057) —...
- Page 13 SHOWN N.O. ALARM (NORMALLY CONTROL CLOSED) VALVE (BVS-1/2") 2 INCH NPT CONNECTION TO DRAIN FIGURE 6 — PART 2 OF 2 HORIZONTAL CLOSED DRAIN TRIM — SPECIAL ORDER — FOR 8 INCH (DN200) MODEL AV-1-300 ALARM CHECK VALVES (52-204-2-058) —...
- Page 14 F x G 8-7/8 (225) 8-7/8 (225) RC-1 12-1/4 (311) 12-1/4 (311) 16-1/2 (419) 3 (75) 3 (75) ELEVATION VIEW FIGURE 7 — PART 1 OF 3 INSTALLATION DIMENSIONS — FOR 2-1/2 INCH (DN65) MODEL AV-1-300 ALARM CHECK VALVES —...
- Page 15 14 (356) 15 (381) 14 (356) 15 (381) 13-3/4 (349) 14-3/4 (375) 13-3/4 (349) 14-3/4 (375) FIGURE 7 — PART 2 OF 3 INSTALLATION DIMENSIONS — FOR 4 & 6 INCH (DN100 & DN150) MODEL AV-1-300 ALARM CHECK VALVES —...
- Page 16 19-1/2 (495) F x F 16-1/2 (419) 16-1/2 (419) F x G & G x G ELEVATION VIEW PLAN VIEW FIGURE 7 — PART 3 OF 3 INSTALLATION DIMENSIONS — FOR 8 INCH (DN200) MODEL AV-1-300 ALARM CHECK VALVES —...
-
Page 17: Setting Procedure
Test Connection (or Alarm Test formed when initially setting the Model toring proprietary and/or central sta- Valve, if acceptable to the authority AV-1-300 Alarm Check Valve or after tion alarms. having jurisdiction) and verify that the system operation due to a fire. - Page 18 TFP910 Page 18 of 22 important in the case of water supplies noted in Step No. 5 is from the Alarm NOTE (such as lakes and rivers) having a Port, drain the system in accordance Loss of excess system pressure will large quantity of suspended matter.
-
Page 19: Limited Warranty
Warranty Step 1. Check for and correct the cause of continued leakage out the Products manufactured by Tyco Fire & alarm line drain. Building Products (TFBP) are war- ranted solely to the original Buyer for Step 2. Check for and clean a clogged ten (10) years against defects in mate- alarm line drain. -
Page 20: Ordering Procedure
(Closed or Open) Drain Galvanized Specify: (specify size inch) Model outside diameter not offered under Trim for (specify size) Model AV-1-300 AV-1-300 Alarm Check Valve with “Standard AV-1-300 Alarm Check Alarm Check Valve, P/N (specify). (specify end connections), P/N (spec- Valve”... - Page 21 Page 21 of 22 Part Numbers For Other Part Numbers For Other Part Numbers For Other Model AV-1-300 Alarm Valves: Model AV-1-300 Alarm Valves: Model AV-1-300 Alarm Valves: Other 2-1/2 Inch Valves with NPT Other 6 Inch Valves with NPT Ports...
- Page 22 TFP910 Page 22 of 22 TYCO FIRE & BUILDING PRODUCTS, 451 North Cannon Avenue, Lansdale, Pennsylvania 19446...
