Application note AN-ODE-2-026

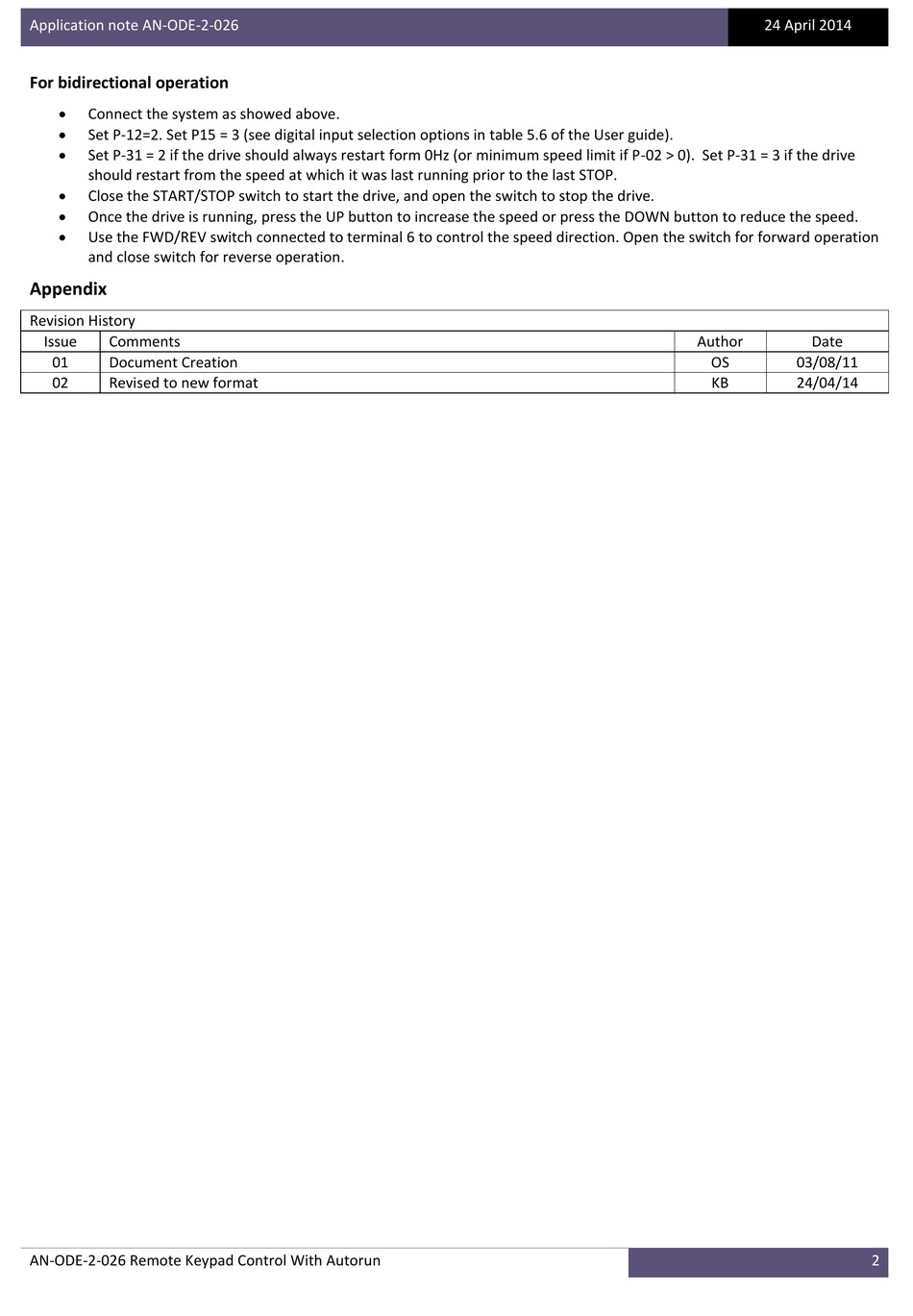

For bidirectional operation

Connect the system as showed above.

Set P-12=2. Set P15 = 3 (see digital input selection options in table 5.6 of the User guide).

Set P-31 = 2 if the drive should always restart form 0Hz (or minimum speed limit if P-02 > 0). Set P-31 = 3 if the drive
should restart from the speed at which it was last running prior to the last STOP.

Close the START/STOP switch to start the drive, and open the switch to stop the drive.

Once the drive is running, press the UP button to increase the speed or press the DOWN button to reduce the speed.

Use the FWD/REV switch connected to terminal 6 to control the speed direction. Open the switch for forward operation
and close switch for reverse operation.

Appendix

Revision History

Issue Comments
01 Document Creation
02 Revised to new format
AN-ODE-2-026 Remote Keypad Control With Autorun
24 April 2014
Author Date
OS 03/08/11
KB 24/04/14
