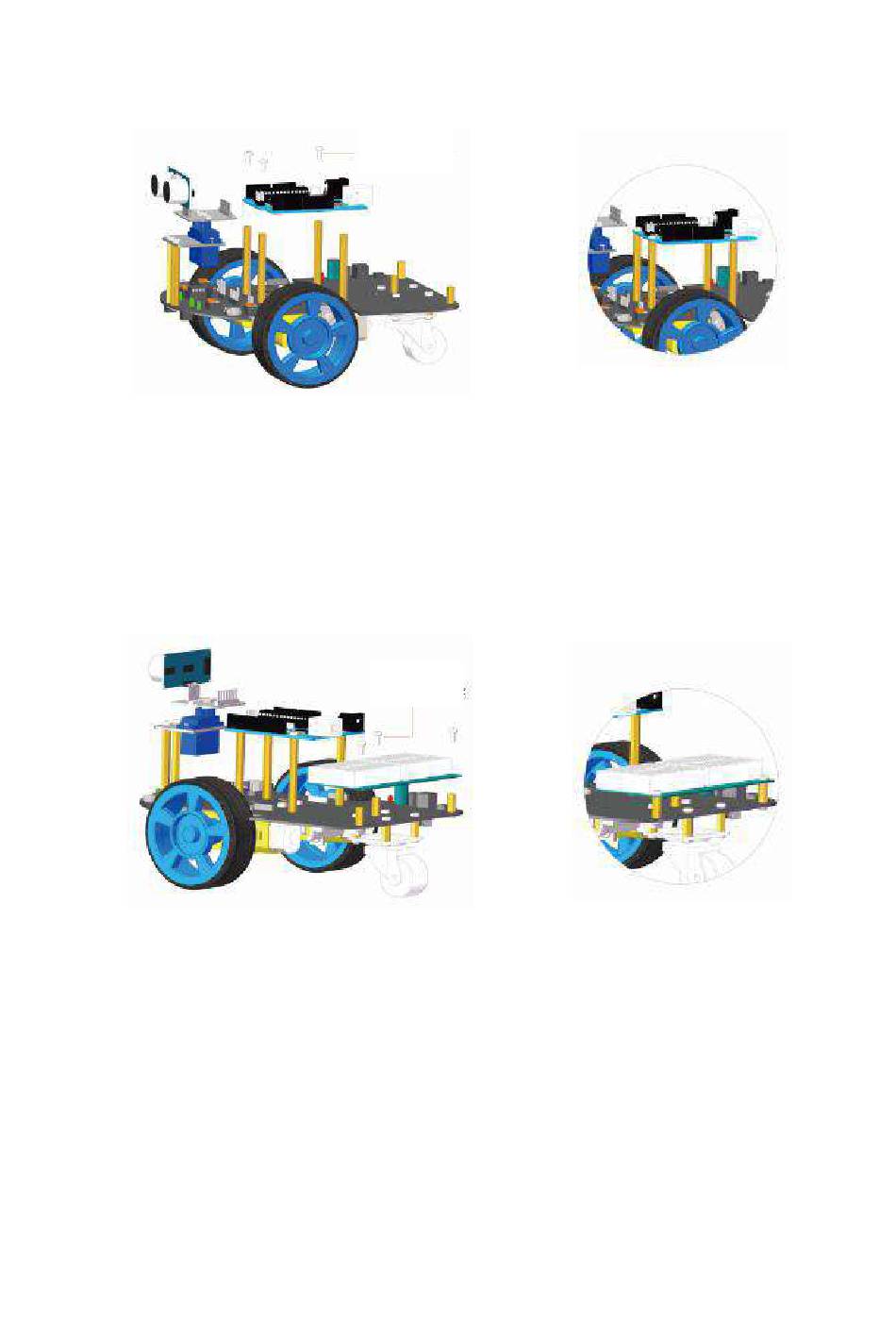

2.7 Installation for Arduino board
M3*6mm
Screw
Design Sketch (After Installation)
Installation Instruction: Install Arduino board on the 4pcs M3*45mm copper pillars,then fixed by
M3*6mm screws.
2.8 Installation for Breadboard
M3*6mm
Screw
Design Sketch (After Installation)
Installation Instruction: Install a breadboard holder on the 3pcs M3*8mm copper pillars at
tailstock and fixed with screws. Remove the sticker on the back of the breadboard and affix it to
the holder. After the installation is completed, please select the connection diagram according to
the experimental requirements.
5
