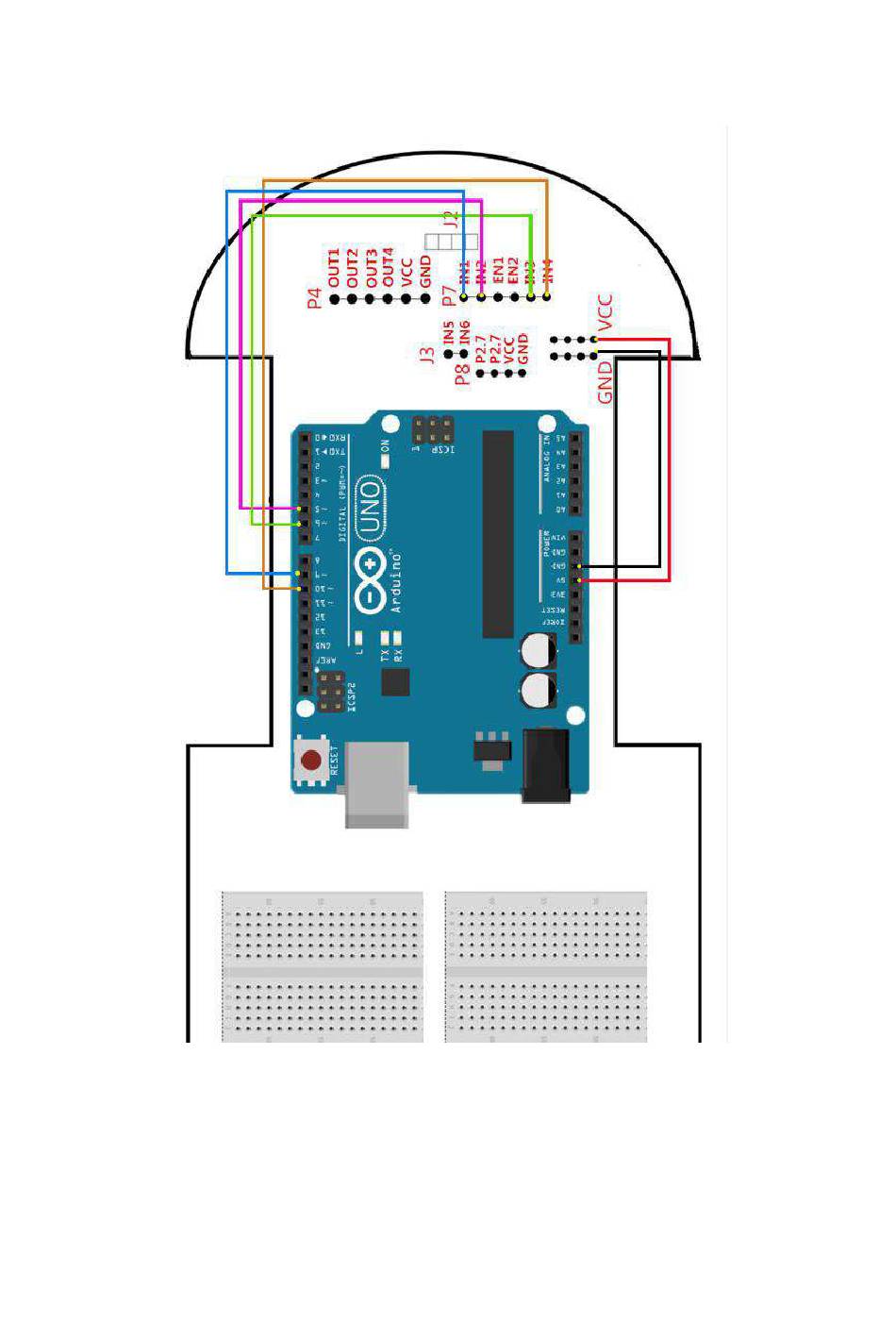

4.6 Remote control wiring diagram
This experiment requires the use of an infrared remote control. Before use, please remove the
insulated plastic sheet at the bottom of the remote control. The numbers 2,8,4,6 on the remote
control correspond to advance, return back, turn left and ture right; 1,3 corresponds to left and
right rotation; 5 is the stop button.
