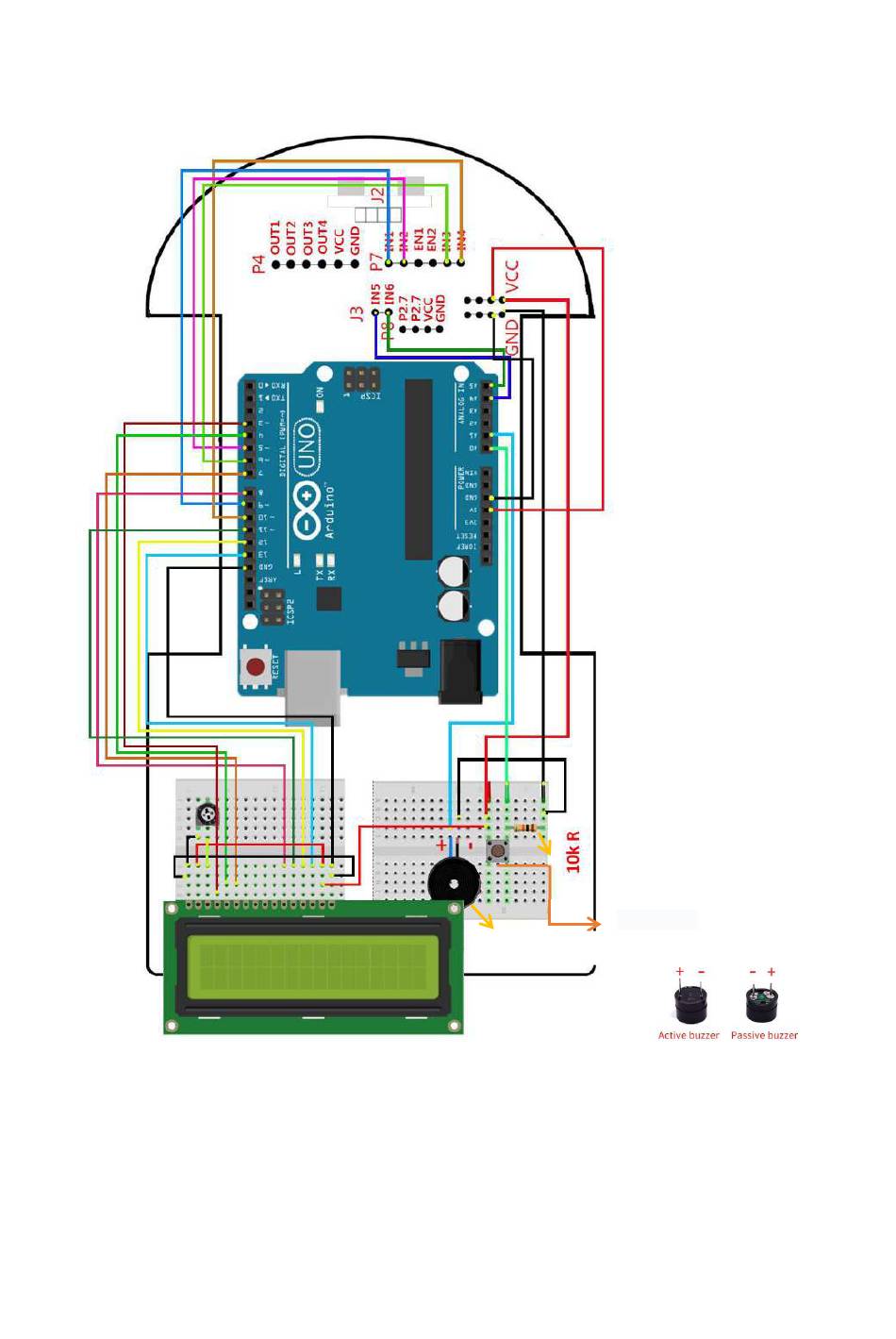

4.4 Ultrasonic obstacle avoidance(no servo) wiring diagram
Start button
Active Buzzer
Note: At the J2 slot, insert the ultrasonic sensor as picture.
If you only use the ultrasonic obstacle avoidance function without displaying the distance, you
can not install the 1602 sdisplay and yellow adjustable resistance.
