Installation Instruction: Install the fixing copper pillar in the right side of the car chassis, 2pcs
M3*40mm copper pillars in the car head, 4pcs M3*45mm copper pillars in the middle, 3pcs
M3*8mm copper pillars in the tailstock. Then using M3*6mm screws to fix them at
of the car chassis.

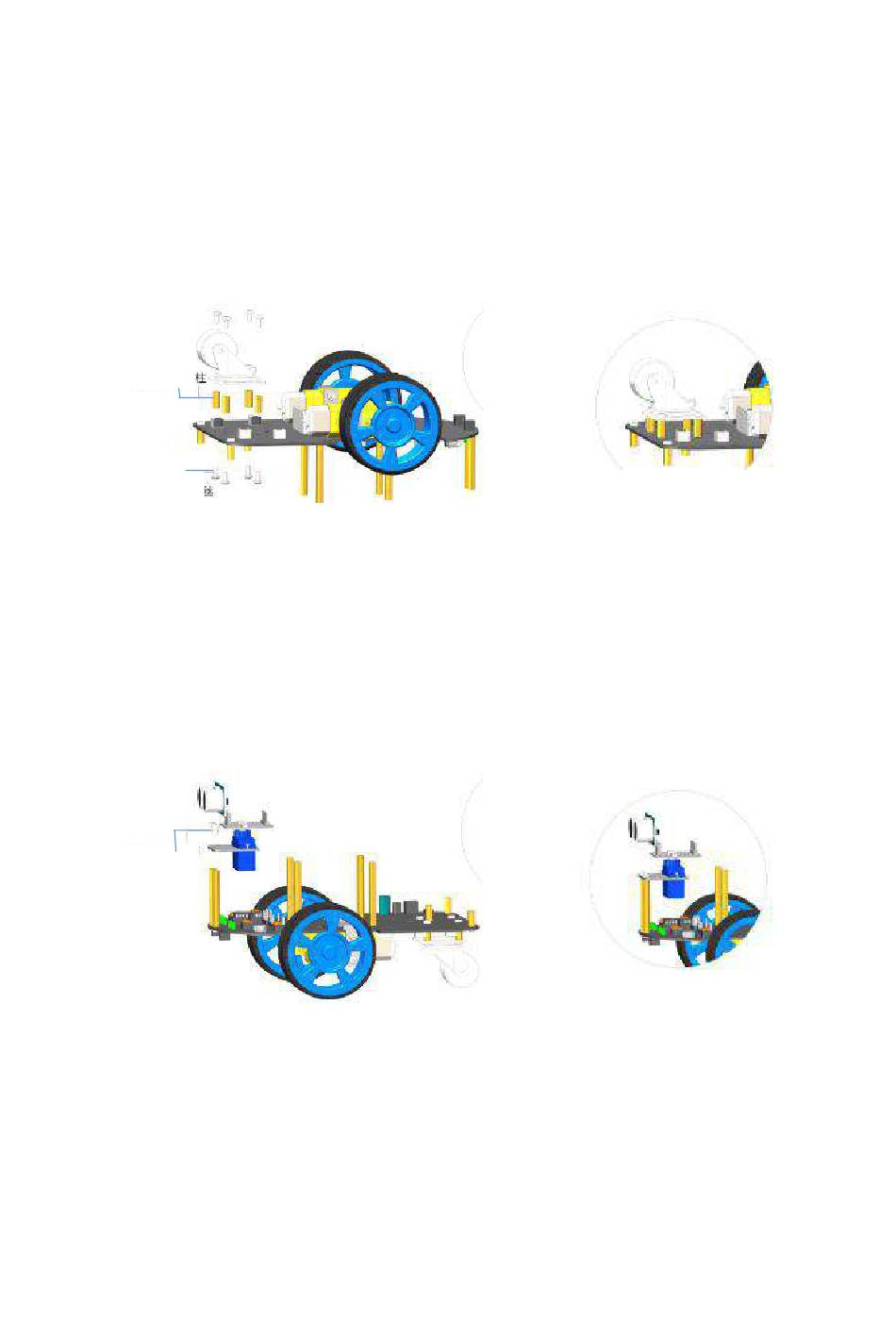

2.5 Installation for Universal Wheel
M3*8mm
Copper pillar
M3*6mm
Screw
Installation Instruction: Install 4pcs copper pillars on the back of the tailstock and fix it with
screws on the front. Then install the universal wheel on the back of the car corresponding to the
copper pillar and fix it with screws.
2.6 Installation for Servo and Ultrasonic Board
M3*6mm
Screw
Installation Instruction: Install the servo support on the M3*40mm copper pillars at car head and
fixed with the M3*6mm screws.
Design Sketch (After Installation)
Design Sketch (After Installation)
4
the bottom
