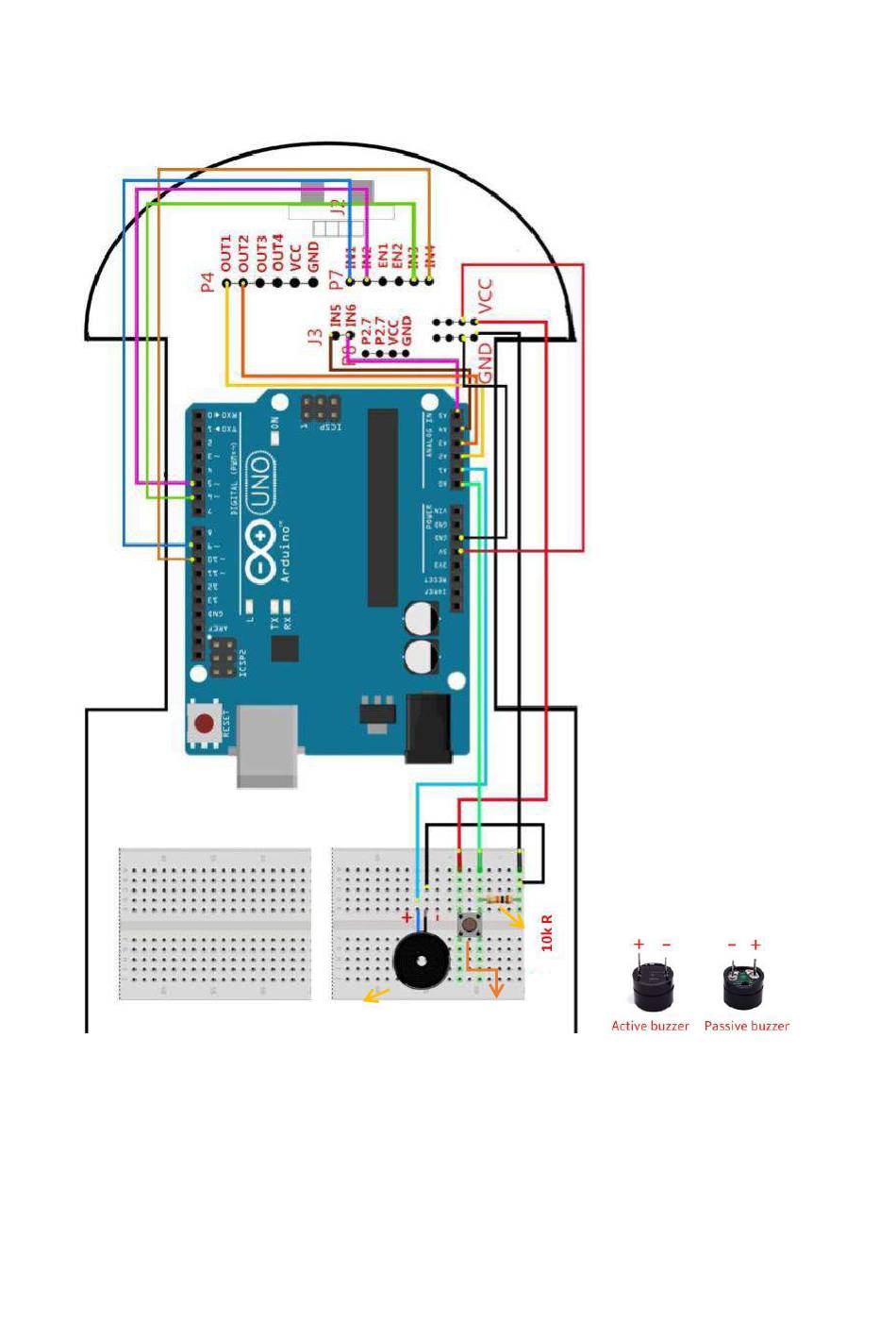

4.7 Tracking & Ultrasonic wiring diagram
Start botton
Active buzzer
Note: At the J2 slot, insert the ultrasonic sensor as picture.
This experiment is a 2in1 comprehensive experiment. The car can detect the obstacles while
tracking. When encountering an obstacle, the car stops waiting in place. After clearing obstacle,
the car continues to track.
