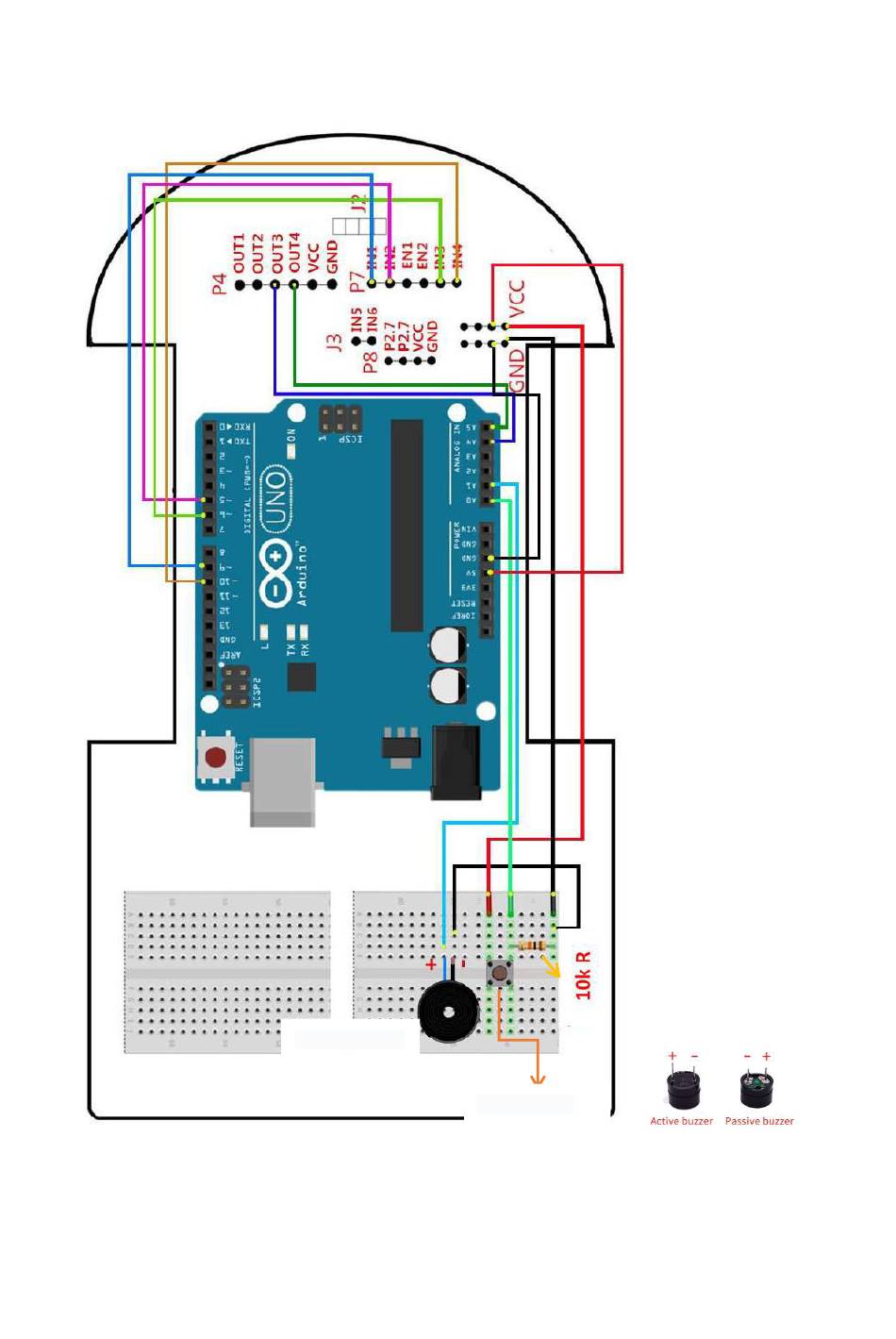

4.3 Infrared obstacle avoidance wiring diagram
Active buzzer
Start button
According to the wiring diagram, the smart car can realize infrared obstacle avoidance and
infrared follow-up functions after uploading the corresponding program. Before the experiment,
please refer to (III. Fuctions of Usage Intstructions).
