red lion PAX Lite PAXLHV Quick Start Manual

Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

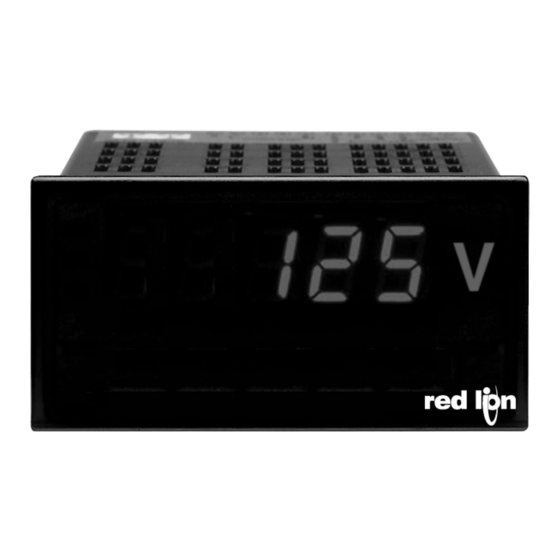

MODEL PAXLHV - PAX LITE AC VOLTAGE MONITOR
U L
C US LISTED
R
IND. CONT. EQ.
51EB
GENERAL DESCRIPTION
The Model PAXLHV is designed for AC voltage monitoring. The half-wave
rectified input signal is calibrated to indicate the RMS value of a pure
sinusoidal wave-form. The front bezel meets NEMA 4X/IP65 requirements
when properly installed.
CAUTION: Read complete
instructions prior to installation
and operation of the unit.
DIMENSIONS In inches (mm)
125
3.80
(96.5)
CAUTION: Risk of electric shock.
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is
2.1" (53.4) H x 5.0" (127) W.
1.95
(49.5)
0.10
(2.5)
3-DIGIT, 0.56" (14.2 mm) HIGH RED LED DISPLAY

AUTO ZEROING CIRCUIT

NEMA 4X/IP65 SEALED FRONT BEZEL

OPTIONAL CUSTOM UNITS OVERLAY W/BACKLIGHT

UP TO 600 VAC MAX

SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
DEFINITION OF TERMS
INSTALLATION CATEGORY (overvoltage category) I:
Signal level, special equipment or parts of equipment, telecommunication,
electronic, etc. with smaller transient overvoltages than Installation
Category (overvoltage category) II.
INSTALLATION CATEGORY (overvoltage category) II:
Local level, appliances, portable equipment, etc. with smaller transient
overvoltages than Installation Category (overvoltage category) III.
1.75
(44.5)
4.10
(104.1)
1
Bulletin No. PAXLHV-C
Drawing No. LP0568
Released 12/09
1 2 3 4 5 6 7 8 9 10 11
3.60 (91.4)
1.75
(44.5)
