Features and Benefits
•
Compliant with USB specifications revision 2.0
•
Conforms to PCI specifications revision 2.2
•
Supports simultaneous operation of multiple high-
speed USB 2.0 and USB 1.1 devices
•
Supports high-speed (480 Mbps), full-speed (12
Mbps), and low-speed (1.5 Mbps) data transfer
modes
•
User friendly hot-swapping feature allows you to
attach/remove USB devices withou turning off your
system
Note: USB 1.1 devices are limited to USB 1.1 speeds
even when they are connected to USB 2.0 host adapter
or USB 2.0 hubs.
System Requirements
PC:
•
Pentium-class computer with an available PCI slot
•
Windows 98SE/ME/2000/XP/Server 2003
Mac:
•
Power Mac G3 (blue & white) or later with an
available PCI slot
•
Mac OS 8.6 or later *
* Requires Mac OS X (version 10.1.3 or later) for USB
2.0 support
04-0216H
USB 2.0 5-Port PCI

Quick Installation Guide

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB 2.0 5-Port PCI and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG USB 2.0 5-Port PCI

Summary of Contents for SIIG USB 2.0 5-Port PCI

  • Page 1: Quick Installation Guide

    USB 2.0 5-Port PCI Quick Installation Guide Features and Benefits • Compliant with USB specifications revision 2.0 • Conforms to PCI specifications revision 2.2 • Supports simultaneous operation of multiple high- speed USB 2.0 and USB 1.1 devices • Supports high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) data transfer...

  • Page 2: Package Contents

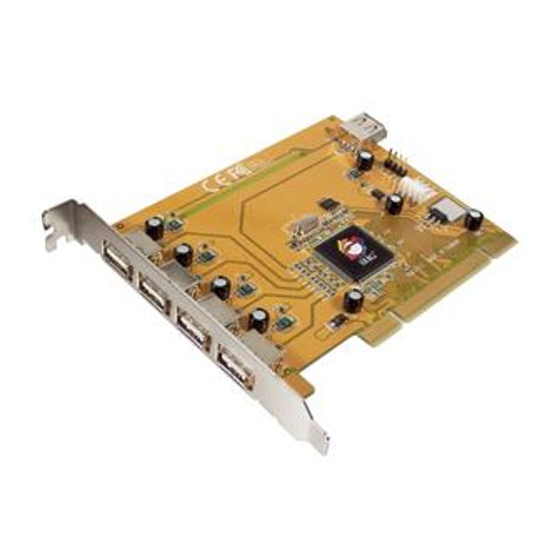

    Package Contents • (1) USB 2.0 5-Port PCI • (1) Driver CD • This quick installation guide Layout Internal port USB Pin-out External Header ports Power connector (Optional)* Figure 1. Board Layout * Note: This power connector (same as the one used with your floppy disk drive) is designed to provide additional power to the board when needed.

  • Page 3: Hardware Installation

    USB Pin-out Header The USB pin-out header consists of 4 pins and allows for 1 USB connection. Important: The internal USB port and the USB Pin-out Header can not be used at the same time. Do not connect devices to both ports at the same time. Black Green White...

  • Page 4: Windows Driver Installation

    Figure 3. Inserting the PCI board Windows Driver Installation The USB 2.0 5-Port PCI has three built-in USB hosts. Two hosts handle USB 1.1 devices and the third host handles USB 2.0 devices. USB 1.1 and USB 2.0 devices are automatically routed to the correct USB hosts.
  • Page 5 Choose Yes, I want to restart my computer now, then click Close to restart Windows. When Windows restarts, a USB 1.1 host is detected. At the Add New Hardware Wizard, click Next. Choose Search for the best driver for your device. (Recommended)., click Next.
  • Page 6 Windows XP Note: If you have Windows XP with Service Pack 1 (SP1) or later, the drivers will be installed automatically by the operating system. Otherwise, follow the instructions below. Install the board and boot up your system. At the Found New Hardware Wizard, click Cancel.
  • Page 7 The drivers for this controller show up differently under different versions of Windows. Please refer to the correct Windows version to verify. Windows Server 2003, XP with SP1 or later, 2000 with SP4 or later: Under Universal Serial Bus controllers: - NEC PCI to USB Open Host Controller - NEC PCI to USB Open Host Controller - Standard Enhanced PCI to USB Host Controller...

  • Page 8: Mac Os Driver Installation

    Mac OS Driver Installation The USB 2.0 5-Port PCI requires Mac OS X (version 10.1.3 or later) to work at USB 2.0 speed. Mac OS 8.6, 9.x, X (v10.0-10.1) This board will only work at USB 1.1 speed in these OSs.
  • Page 9 Mac OS X (v10.2.3-10.2.6) Install the board and boot up your system. Insert the driver CD. Double click the Drivers CD icon on the desktop. At the new window, double click OS10.2X. Double click USB2EHCI_V3_1_5.pkg. At the Authenticate window, enter your administrator password, and click OK.
  • Page 10 Mac OS X (v10.1.3-10.1.5) Double click OS 10.1x volume/drive icon. Go to System/Library/Extensions folder. If the file OMI_EHCI.kext is in the Extensions folder, the USB 2.0 driver is installed successfully. Mac OS X (v10.2.3-10.2.6) Double click OS 10.2x volume/drive icon. Go to System/Library/Extensions folder.

  • Page 11: Technical Support

    The 5-year manufacturer warranty supplied with this product is offered by SIIG, Inc. If you should happen to encounter any problems with this product, please follow the procedures below.
  • Page 12 Fremont, CA 94538-3152 USB 2.0 5-Port PCI is a trademark of SIIG, Inc. SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Mac and Mac OS are registered trademarks of Apple Corporation.
