Features and Benefits
•
Support CF Type I , CF Type II, MicroDrive, PIO
mode 0-6, and UDMA mode 0-4 (CF 3.0)
•
Compliant with ExpressCard™ standard
•
Suitable for desktop or laptop equipped with
ExpressCard™ /54 slot
•
Extreme high speed: Transfer files up to
33MB/sec.
Note: Actual throughput may vary based on the
computer configuration.
Serial # Sticker
For future product return or exchange, this serial # is
required. Please keep it for your reference.
04-0470A

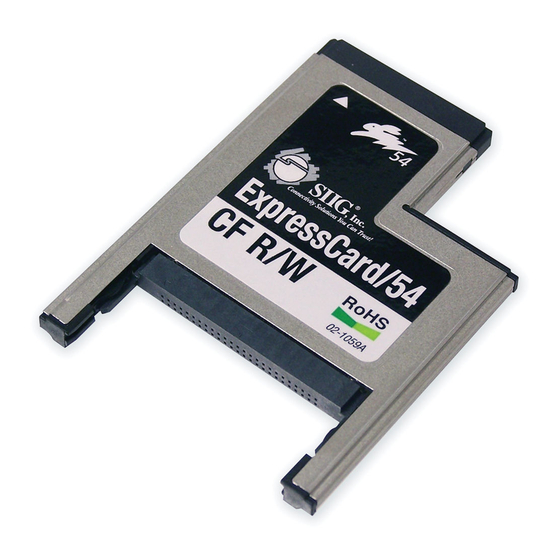

ExpressCard/54 CF R/W
Quick Installation Guide
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG ExpressCard/54 CF R/W
Summary of Contents for SIIG ExpressCard/54 CF R/W
- Page 1 ExpressCard/54 CF R/W Quick Installation Guide Features and Benefits • Support CF Type I , CF Type II, MicroDrive, PIO mode 0-6, and UDMA mode 0-4 (CF 3.0) • Compliant with ExpressCard™ standard • Suitable for desktop or laptop equipped with ExpressCard™...
- Page 2 System Requirements • Notebook or desktop computer with an available ExpressCard slot ® • Windows 2000/XP/Server 2003/Vista Package Contents • ExpressCard/54 CF R/W • This quick installation guide Layout Figure 1. ExpressCard/54 CF R/W...
-
Page 3: Hardware Installation
ExpressCard, turn it on and go to Driver Installation on page 3. Otherwise, go directly to Driver Installation on page 3. Driver Installation Windows 2000, XP, Server 2003 and Vista automatically detects and installs the correct driver for the ExpressCard/54 CF R/W. No driver installation is needed. - Page 4 Verify Windows Installation Check Device Manager to verify successful driver installation. For 2000/XP/Server 2003: Right click My Computer, click Manage For Windows Vista™: Right click Computer, click Manage, click Continue. Click Device Manager. Click on the + (plus sign) in front of Disk Drives, Generic STORAGE DEVICE USB Device should be displayed.
- Page 5 Removing Memory Cards Memory cards can be removed at any time. Gently pull the memory card from the ExpressCard/54 CF R/W. Accessing Memory Cards When the reader/writer is successfully installed, a Removable Disk icon will appear in My Computer. To access the memory card, double click the disk icon.
- Page 6 For Windows XP/Server 2003/Vista Click the Safely Remove Hardware icon located in the taskbar by the system clock. Click Safely remove USB Mass Storage Device..When Safe to Remove Hardware box pops up, the ExpressCard/54 CF R/W can be ejected.
-
Page 7: Technical Support And Warranty
You can also submit questions online and a technical support analysts will promptly respond. SIIG offers a 5-year manufacturer warranty with this product. Please see our web site for more warranty details. If you encounter any problems with this product, please follow the procedures below. - Page 8 6078 Stewart Avenue Fremont, CA 94538-3152, USA ExpressCard/54 CF R/W is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are registered trademarks of Microsoft Corporation. Other names used in this publication are for identification only and may be trademarks of their respective companies.
