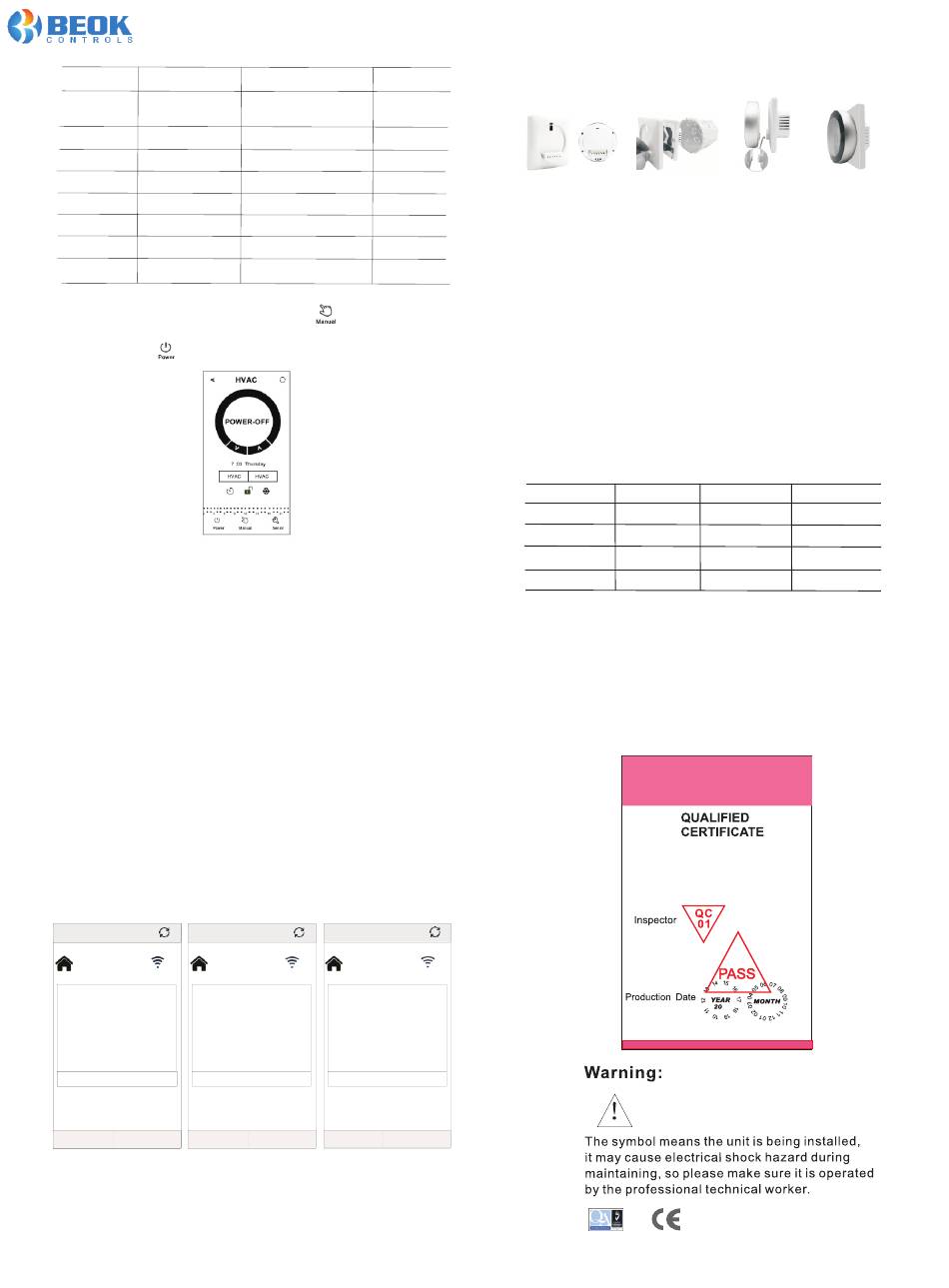

Display Code Function
Sensor mode
SEN
OSV
Floor set temp. range
DIF Floor temp. ctrl diff
Room temp set max
SVH
SVL
Room temp set min
ADJ Room temp. adjust
Anti-frozen
FRE
Power memory
PON
7. Switch of Manual mode and Auto mode: Press
mode or Auto mode.
8.Power off : Press to turn on or off thermostat.
X. Attention to Phone WiFi Connection:
1. After you press Configure, if connection fails:
a. Please confirm your mobile phone is set to WLAN mode, and ensure its
(mobile data)3g/4g is turned off. Please connect to 2.4G wifi, not 5G wifi.
b. Please add your wifi router name, we recommend it does not include
spaces or Chinese symbol.
c. Please check your wifi router password. We recommend not over 32
characters, no spaces, no blank password, no special symbols except
letters and numbers.
d. Please check module is successfully reset . In power-off state, press
Time key firstly, then press Power key to enter Advanced Setting. Find
FAC mode, to change FAC to 10 or 32, then turn thermostat off......
Press Time key within 2 minutes, then press Power key again. This time,
it will not enter Advanced Setting, but WIFI symbol on the LCD screen will
be flashing quickly and frequently. This means wifi module has been reset
successfully. Then wait for APP to connect well.
e. Please confirm wifi password is correctly filled. We recommend you
check password to be visible when it is input.
2. If it displays the following reminder, please go to Advanced Setting to
reset corresponding setting.
My Thermostat My Thermostat My Thermostat
Edit Edit Edit
HVAC-A HVAC-A HVAC-A
34:ea:34:c8:84:7a 34:ea:34:c8:84:7a 34:ea:34:c8:84:7a
remind
Data setting wrong
If Room set temp(21.5℃) If Room set temp(21.5℃)
Room temp set max(svh)
higher than Room temp higher than Room temp
< Room temp set min(svl).
set max(SVH)(14℃). set max(SVH)(14℃).
Pls reset in advanced Pls reset in advanced
Pls reset in advanced
date setting date setting
date setting
Done Done
Search Search Configure Configure Search
XI. Installation Instruction
This product is suitable for standard 80*80mm wall box and
60 mm european round box.
Setting And Options Factory Defult
In-s control
Out-s control
In-s control
In-s control., Out-s limit
5-99℃ 42℃
1-9℃
2℃
5-99℃ 35℃
5-99℃ 5℃
-5-5℃ 0℃
close/open Close
off/on
On
to switch manual
My Thermostat
Edit
HVAC-A
34:ea:34:c8:84:7a
Remind
Room set temp(SV)
.
(5 0℃)lower than Room
set temp max(svh)(14℃)
Pls reset in advanced
date setting
Done Done
Search Configure
Configure
This thermostat is suitable for standard 80*80mm wall box Or
60*60 mm Europe standard round box.
1 2
1.Turn off the main power. Take away the front display screen part, then use
screwdriver to open the installation panel.
2. Refer the wiring diagram(VII) to connect the lines with terminals.
Fix the installation panel with installation box with screws, and insert into wall
3. Insert the display screen part into the installation panel.
4. Installation finished.
NOTICE: The installation wire should be 1.5-2.5mm2.
Thank you for buying this product!
Please read this manual for complete instructions on installing and
operating your thermostat. If you require further assistance, please
feel free to contact us.
In the box you will find:
Model TGR87WIFI-EP
√
Thermostat
√
User Manual
Screws √
External sensor
√
Our Service:
We offer the warranty of 24 months from the sales day.
During the warranty, if it is belong to the quality issue, we will fix or
replace them for you by free after test them.
If it is not quality problem or beyond the warranty time, we will
charge for the after-sales service.
BEOK
Wifi Series Touch Screen Thermostat
3
4
TGR87WIFI-WP TGR87WIFI-WPB
√
√
√
√
√
√
