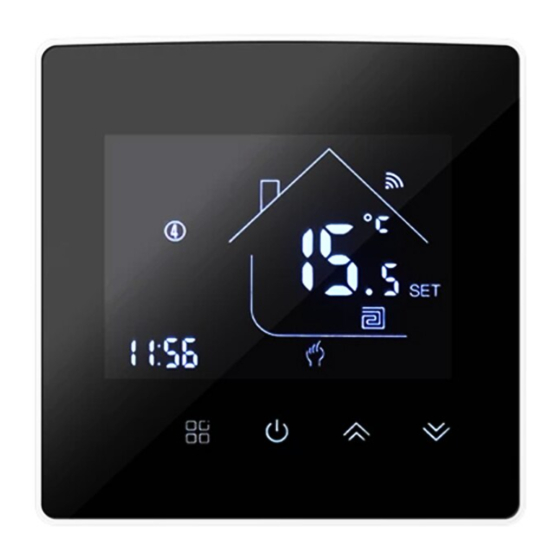

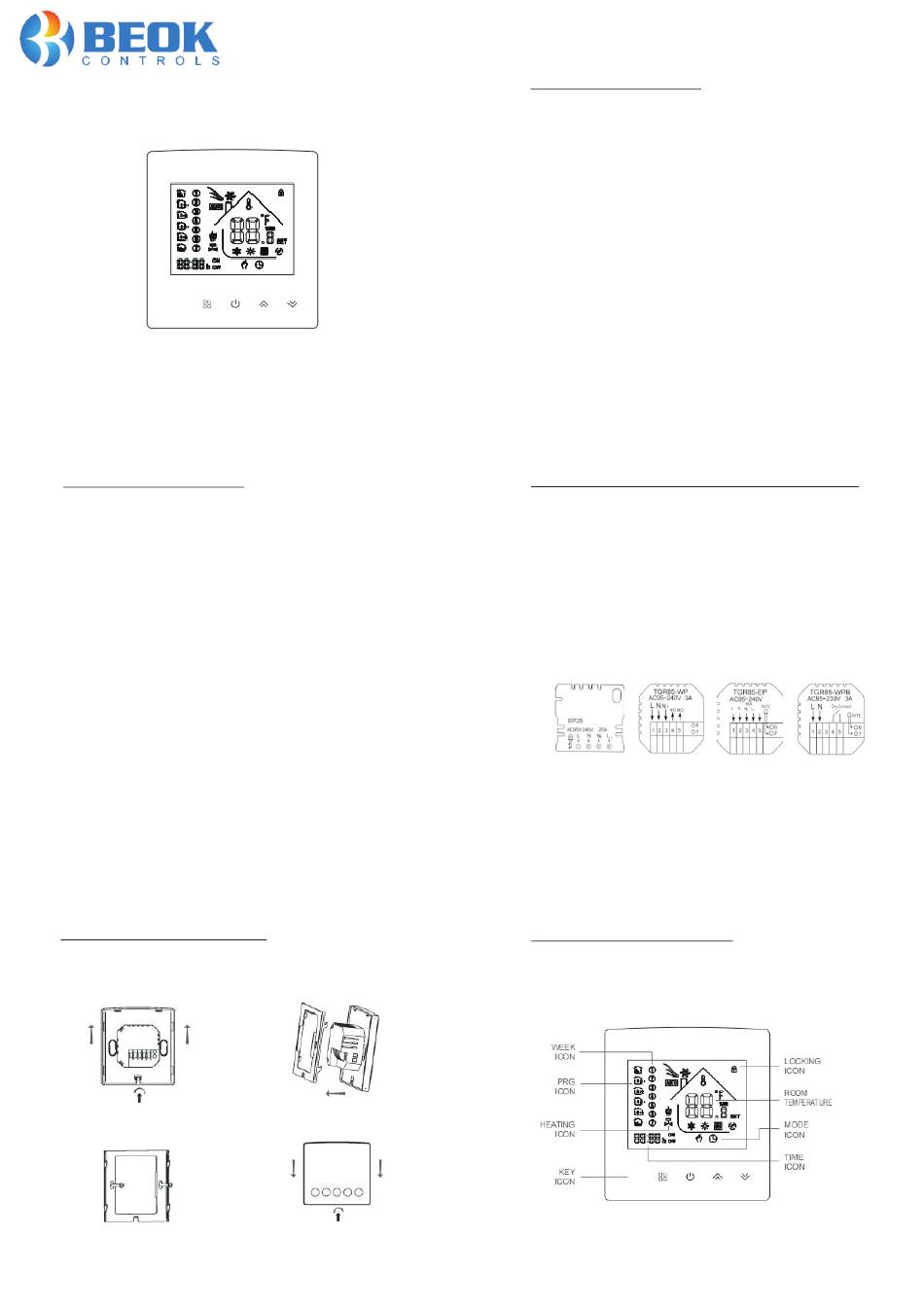

TGR-85 THERMOSTAT USER GUIDE
THIS THERMOSTAT IS SUITABLE FOR WATER HEATING,
ELECTRIC HEATING AND GAS BOILER
TGR-85 THERMOSTAT USER GUIDE
Product packaging
Thermostat host---------------
1 PC
Qualification certificate------
1PC
Sensing line (optional)-------
1 PC
Product Model
WP Plumbing 3A
EP Electric Heating 16A
WPB linkage, gas boiler 3A
02
TGR-85 THERMOSTAT USER GUIDE
Installation procedure
This product is installed with a standard 86 control switch (in compliance with
European regulations)
1. Turn the fixator so that the arrow is
aligned with the display screen. Remove
the mounting plate
3. Fix the mounting plate on
4. Insert the thermostat into the mounting plate
from top to bottom and reuse ,The screwdriver will
the cassette with a screw
rotate the fixator 180 degrees to complete the installation.
04
Manual--------------- 1 PC
Screw----------------- 2 PCS
2. Remove the mounting plate in this direction
TGR-85 THERMOSTAT USER GUIDE
Welcome
Thank you for your trust and support. By adopting higher-end technology and
more perfect technology, your new thermostat will provide you with the right
temperature environment every day in the future, making your life more
comfortable and your living environment more stylish and beautiful. For
detailed instructions on the installation and use of this thermostat, please read
this manual carefully. Please contact a professional to install the thermostat for
you and install and use the product to the extent permitted by law
Application
Intelligent digital temperature controller is a floor heating system suitable for
room temperature control and household temperature control. It controls the
operating state of the floor heating equipment by comparing the ambient
temperature with the set temperature, which improves comfort and achieves
energy saving. This digital temperature controller adopts microcomputer
control technology and is equipped with full-screen display touch buttons,
which is elegant in design and easy to use. The thermostat has manual
automatic, programmable and state memory functions.
01
TGR-85 THERMOSTAT USER GUIDE
User Notes
Please read this manual carefully. Improper operation may damage the
1.
product or cause dangerous conditions.
The installation personnel must be well-trained and experienced service
2.
technicians.
After installation, please read this manual carefully and operate the product
3.
according to the instructions.
Caution: Risk of electric shock or equipment damage.
Wiring Diagram
Note: WP for water heating; EP for electric heating; WPB for gas boiler
03
TGR-85 THERMOSTAT USER GUIDE
Description of display & Icon
05
