Beok Controls TGR85-ZB Series User Manual

TGR85 ZIGBEE THERMOSTAT USER GUIDE
THIS THERMOSTAT IS SUITABLE FOR WATER HEATING, ELECTRIC
HEATING AND GAS BOILER
Welcome
Thank you for your trust and support. By adopting higher-end technology and
more perfect technology, your new thermostat will provide you with the right
temperature environment every day in the future, making your life more
comfortable and your living environment more stylish and beautiful. For detailed
instructions on the installation and use of this thermostat, please read this manual
carefully. Please contact a professional to install the thermostat for you and install
and use the product to the extent permitted by law.
Application
Intelligent digital temperature controller is a floor heating system suitable for room
temperature control and household temperature control. It controls the operating
state of the floor heating equipment by comparing the ambient temperature with
the set temperature, which improves comfort and achieves energy saving. This
digital temperature controller adopts microcomputer control technology and is
equipped with full-screen display touch buttons, which is elegant in design and
easy to use. The thermostat has manual automatic, programmable and state
memory functions.
Product packaging
Thermostat host 1 PC
Sensing line (optional) 1 PC
Screw 2 PCS
Product Model
WP Plumbing 3A
EP Electric Heating 16A
WPB linkage, gas boiler 3A
Qualification certificate 1 PC
Manual 1 PC
User Notes
1.Please read this manual carefully. Improper operation may damage the product
or cause dangerous conditions.
2.The installation personnel must be well-trained and experienced service
technicians.
3.After installation, please read this manual carefully and operate the product
according to the instructions.
Caution: Risk of electric shock or equipment damage.

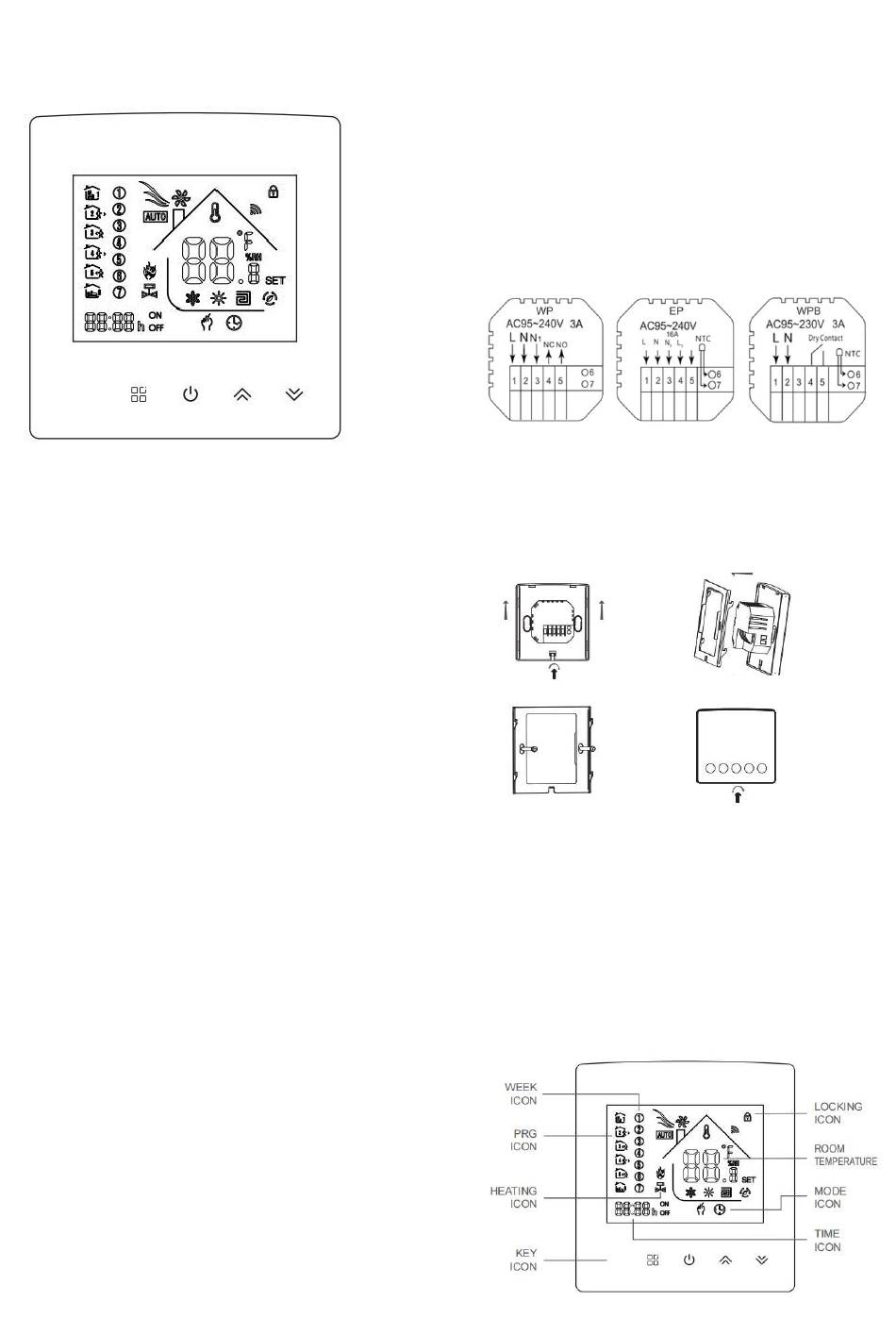

Wiring Diagram
Note: WP for water heating; EP for electric heating; WPB for gas boiler
Installation procedure
This product is installed with a standard 86 control switch (in compliance with
European regulations).
1.
3.
1. Turn the fixator so that the arrow is aligned with the display screen. Remove
the mounting plate.
2. Remove the mounting plate in this direction.
3. Fix the mounting plate on the cassette with a screw.
4. Insert the thermostat into the mounting plate from top to bottom and reuse.
The screwdriver will rotate the fixator 180 degrees to complete the installation.
Description of display & Icon
2.
4.
