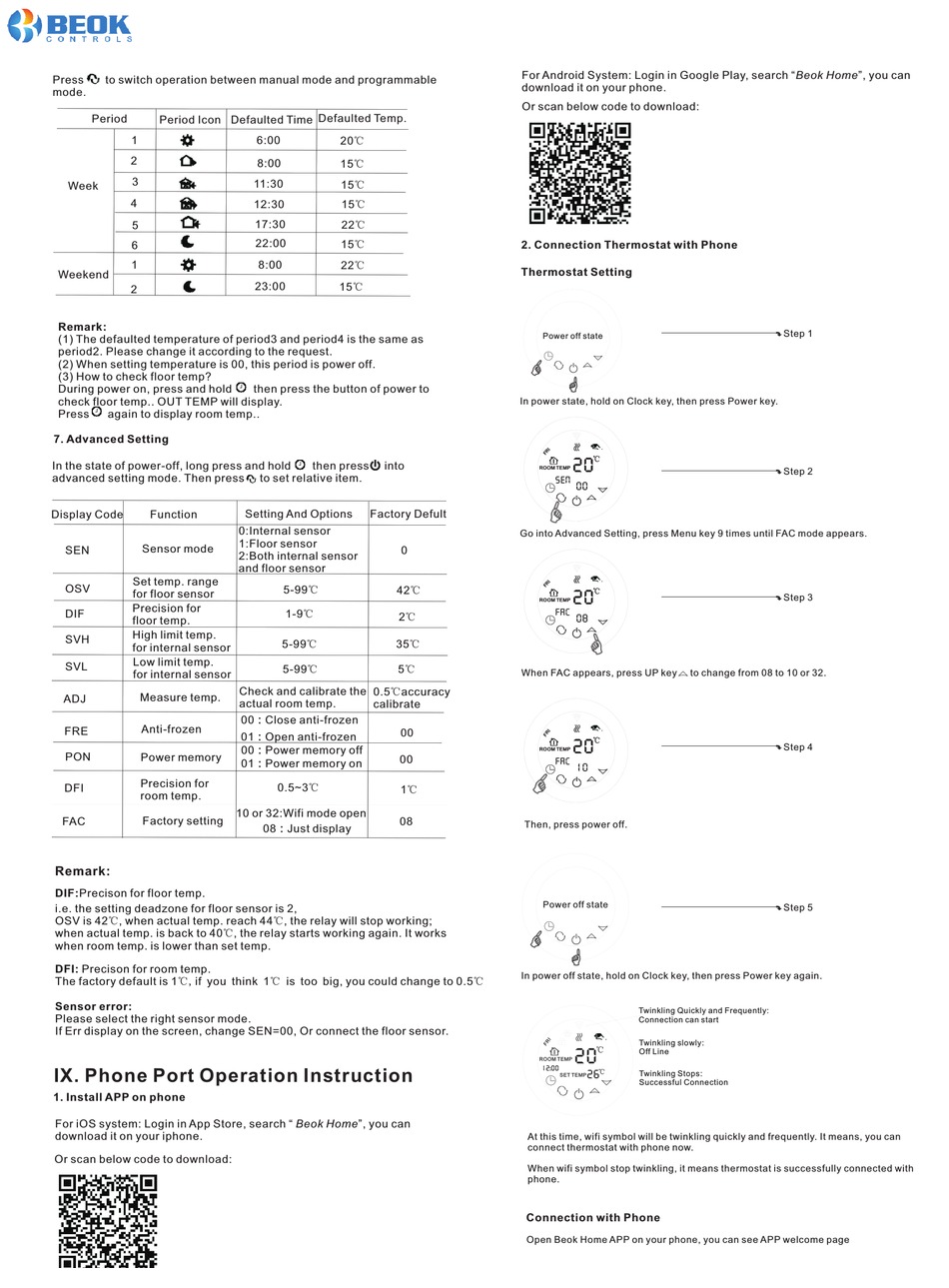

Beok Controls TGR87WIFI-WP Manual page 2

Press to switch operation between manual mode and programmable
mode.
Period Period Icon Defaulted Time Defaulted Temp.
1
2
3
Week
4
5
6
1
Weekend
2
Remark:
(1) The defaulted temperature of period3 and period4 is the same as
period2. Please change it according to the request.
(2) When setting temperature is 00, this period is power off.
(3) How to check floor temp?
During power on, press and hold
check floor temp.. OUT TEMP will display.
Press again to display room temp..
7. Advanced Setting
In the state of power-off, long press and hold
advanced setting mode. Then press
Display Code Function
Sensor mode
SEN
Set temp. range
OSV
for floor sensor
Precision for
DIF
floor temp.
High limit temp.
SVH
for internal sensor
Low limit temp.
SVL
for internal sensor
Measure temp.
ADJ
Anti-frozen
FRE
PON Power memory
Precision for
DFI
room temp.
FAC Factory setting
Remark:
DIF: Precison for floor temp.
i.e. the setting deadzone for floor sensor is 2,
OSV is 42℃, when actual temp. reach 44℃, the relay will stop working;
when actual temp. is back to 40℃, the relay starts working again. It works
when room temp. is lower than set temp.
DFI: Precison for room temp.
The factory default is 1℃,if you think 1℃ is too big, you could change to 0.5℃
Sensor error:
Please select the right sensor mode.
If Err display on the screen, change SEN=00, Or connect the floor sensor.
IX. Phone Port Operation Instruction
1. Install APP on phone
For iOS system: Login in App Store, search " Beok Home", you can
download it on your iphone.
Or scan below code to download:
6:00
20℃
8:00 15℃
11:30 15℃
12:30 15℃
17:30
22℃
22:00
15℃
8:00
22℃
23:00
15℃
then press the button of power to
then press into
to set relative item.
Setting And Options Factory Defult
0:Internal sensor
1:Floor sensor
0
2:Both internal sensor
and floor sensor
5-99℃ 42℃
1-9℃
2℃
5-99℃ 35℃
5-99℃ 5℃
Check and calibrate the
0.5℃accuracy
actual room temp. calibrate
00：Close anti-frozen
00
01：Open anti-frozen
00：Power memory off
00
01：Power memory on
0.5~3℃
1℃
10 or 32:Wifi mode open
08
08：Just display
For Android System: Login in Google Play, search "Beok Home", you can
download it on your phone.
Or scan below code to download:
2. Connection Thermostat with Phone
Thermostat Setting
Power off state
In power state, hold on Clock key, then press Power key.
20 20
℃ ℃
ROOM TEMP ROOM TEMP
sen
00
Go into Advanced Setting, press Menu key 9 times until FAC mode appears.
20 20
℃ ℃
ROOM TEMP ROOM TEMP
FAC
08
When FAC appears, press UP key to change from 08 to 10 or 32.
20 20
℃ ℃
ROOM TEMP ROOM TEMP
FAC
10
Then, press power off.
Power off state
In power off state, hold on Clock key, then press Power key again.
Twinkling Quickly and Frequently:
Connection can start
Twinkling slowly:
20
℃
Off Line
ROOM TEMP
12:00
26
℃
Twinkling Stops:
SET TEMP
Successful Connection
At this time, wifi symbol will be twinkling quickly and frequently. It means, you can
connect thermostat with phone now.
When wifi symbol stop twinkling, it means thermostat is successfully connected with
phone.
Connection with Phone
Open Beok Home APP on your phone, you can see APP welcome page
Step 1
Step 2
Step 3
Step 4
Step 5
