- Page 1 TDR89 THERMOSTAT USER GUIDE This thermostat is suitable for water heatiing,electric heating and boiler...
- Page 2 Welcome Thank you for your trust and support! We have adopted advanced technology and perfect craftsmanship so that your new thermostat will provide you with a suitable temperature environment every day in the future. Main Functions and Characteristics 1.WIFI for Android & Apple iOS 2.Large screen display and touch screen 3.Power-off memory function 4.Real-time data save function...
-
Page 3: Product Packaging
Product Packaging Model TDR89-EP TDR89-WP TDR89-WPB √ √ √ Thermostat √ √ User Manual √ Screws *2 √ √ √ External sensor √ Model Spec Week Current Controlled Objects Loading Program TDR89-EP For electric heating appliances For water heating appliances... -
Page 4: Technical Parameter
Technical Parameter: Power Supply 100 ~ 240V ≤3A（water heating/gas boiler) Current Load ≤16A(electric heating) Power Consumption <1W External Material PC+ABS (flame retardant） Sensing Element Set Temp. Range 5-95℃ 5-60℃ Floor Set Temp. Range adjustable 0.5-10℃) Temperature hysteresis ±1℃ (Defaults Dimension 86x86x14mm Ambient Temp. -
Page 5: User Notes
User Notes 1.Please read this manual carefully. Improper operation may damage the product or cause dangerous conditions. 2.The installation personnel must be well-trained and experienced service technicians. 3.After installation, please read this manual carefully and operate the product according to the instructions. Caution: Risk of electric shock Wiring Diagram (External sensors... -
Page 6: Installation Instruction

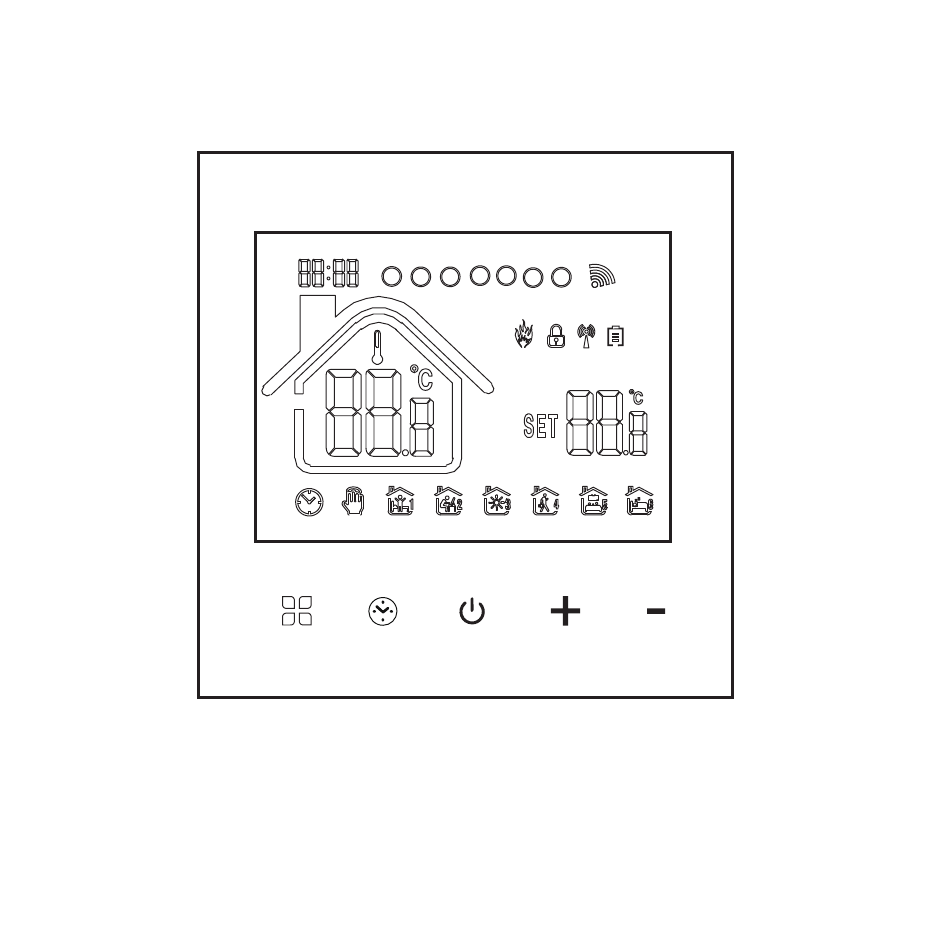

Installation Instruction This product is suitable for standard 86*86mm wall box and 60 mm european round box. 2.Separate the power supply from the 1.Connect the power box control board cable. according to the wiring diagram. 3.Screw the power supply into 4.Connect the power board to the board the box of 86. - Page 7 Description of display & icon...
- Page 8 Operation Instruction 1.Power on/off Press to turn on/off the power. 2.Set Temperature Press “ ” or “ ” to set the temperature. 3.Set the Clock press to set minute, Press “ ” or “ ” for adjusting Then press to adjust the hour and the week in turn. 4.Switch modes Press key to switch between Manual and Programming mode...
- Page 9 6.Set the programming Mode. Press and hold into programming mode setting. time and ①②③④⑤ will display. ①②③④⑤ display in the position of week means 5(working day)+2(rest day) Press “ ” or “ ” to set the time. Press to enter the temperature adjustment. Press “...
- Page 10 Period Period Icon Defaulted Time Defaulted Temp. 6:00 20℃ 8:00 16℃ 11:30 Working 16℃ 12:30 16℃ 17:00 22℃ 22:00 16℃ 8:00 22℃ Rest day 23:00 16℃ Remark: 1.The defaulted temperature of period3 and period4 is the same as period2. Please change it according to the request. 2.Do not set the last time point of each day beyond 23:59...
- Page 11 7. Advanced Setting In the state of power-off, press the key and the key for 5 seconds to enter the advanced option setting. Press to enter the next option, press “+” or “-” to adjust,and press save and exit Factory Setting And Options Display Code Function...
- Page 12 00:close the main and Main and auxiliary auxiliary reversal function reverse selection 01:indicate the auxiliary reversal (optional) 00:turn off the backlight 01:low brightness Backlight 02:medium brightness brightness 03:high brightness Set temperature 60℃ 15-95℃ upper limit “+” key long press to adjust the Reset display to“---”,press button to...
- Page 13 Phone Port Operation Instruction Preparation before Wi-Fi connection APP download and account registration: 1.Download APP For iOS system: Login in App Store, search “Tuya Smart”, you can download it on your iphone. For Andriod system: Login in Google Play, search “ Tuya Smart” , you can download it on your phone.
- Page 14 2. Register Account If you do not have an APP account yet, you can choose to register or log in via SMS verification code. Click “Creat a new account”, you will enter the Tuya Smart Platform Privacy Policy page. After you click Agree, you will officially enter the mobile phone registration page.
- Page 15 The system automatically determines the current country/ region.You can also select the country/region manually. After entering your mobile phone number or email address, click “get verification code”. Enter the received verification code, then enter the password, and click “Finish” to register successfully.
- Page 16 WIFI connection 1.Turn on your mobile phone‘s Bluetooth and wifi (please make sure your mobile phone connect to 2.4Ghz Wi-Fi). 2.Activate the thermostat WiFi module:When the thermostat is “ ” turned on,press and hold the button for 5 seconds,the WIFI icon flashes on the thermostat display,and the thermostat enters the code matching state 3.Add Device...
- Page 17 Method 2: Enter the Tuya APP,Click "Add Device" or "+" (as picture 2) on the upper right corner of the APP homepage,and enter the "Add Device" interface.It will prompt: find the deviceto be added (as picture 3) and follow the prompts. picture 3 picture 2...
- Page 18 Method 3:Enter the Tuya APP,Click"+"on the upper right corner of the APP homepage,Find the temperature control product (Bluetooth + WIFI model)in the (small household appliance).(as picture 4) As picture 5 ignore the content of the page and tap Next. picture 4 picture 5...
- Page 19 As picture 6 Ignore the content of the page and click Next As picture 7 tick confirm the indicator is blimking click Next picture 6 picture 7...
- Page 20 4.Enter Wi-Fi information Enter the name and password of the 2.4Ghz Wi-Fi (please make sure that the Wi-Fi name and password contain only numbers and letters and not special symbols) Follow the prompts to the next step,you can see the device is being added,and after a few seconds,you will see that the device is added successfully (the length of time will depend on the strength of the wifi signal).
- Page 21 5.Display of temperature controller APP interface If you encounter any problems during the use of the product, please feel free to contact us through the purchase platform, we will try our best to help you.
