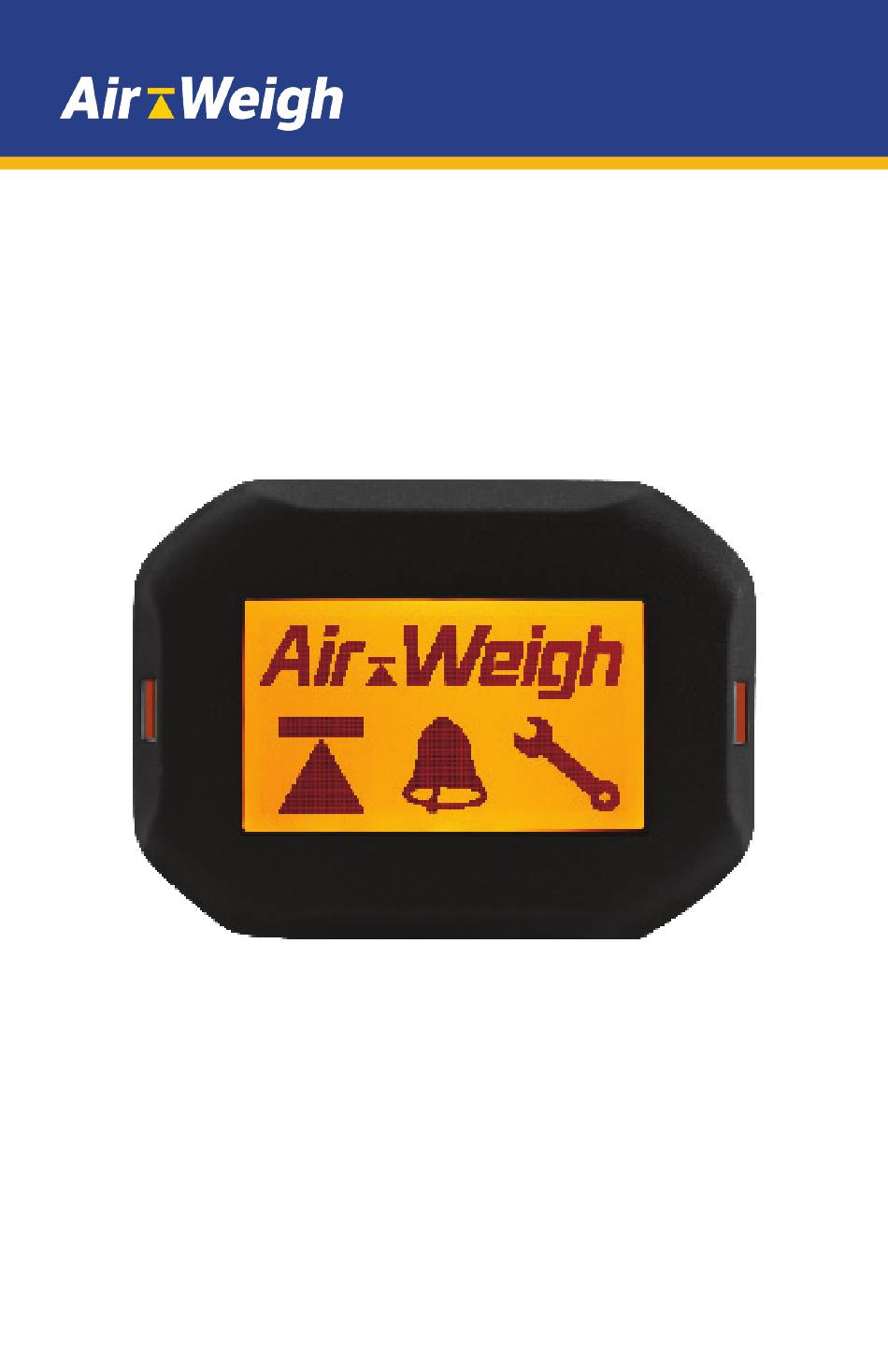

- Page 1 LoadMaxx User Guide For Trailers with Air Ride Suspensions Air-Weigh Customer Support: 888-459-3247 PN 901-0159-000 R1...
-
Page 2: Table Of Contents
Table of Contents Overview...................1 How to Use the Touch Screen.............1 Power On/Off.................1 Calibrating Your Scale..............3 Before You Calibrate..............3 Calibrating with the Set-Up-Wizard..........4 Setting additional Calibrations ..........7 Setting Your Alarms...............10 Settings..................11 Limited Warranty................12 Procedure for Warranty Claims............13... -
Page 3: Overview
Overview LoadMaxx Trailer scales provide on-the-ground weights within 300lbs for each axle group. With an easy to use icon based interface, you’ll find using your new trailer scale is simple. In this manual we will demonstrate how to calibrate your scale, set a pin number and set your alarms. If you want to learn more, visit www.air-weigh.com to view some of our videos or call our customer support department at 888-459-3247. How to Use the Touch Screen • Touch a picture icon or menu button to navigate to the screen it represents. • Use the arrows to navigate through options or to increase/decrease digit values. - Page 4 Weight Screen Weight Adjust Entry Diagnostic Menu Alarm Menu and Auxiliary Input Language Selection Setup Menu Additional Settings Menu Previous Screen Display Time-Out Entry Accept Selection Create PIN Entry Scroll Up or Increase the Selected Digit Setup Wizard Scroll Down or Decrease Tandem Axle Trailer the Selected Digit No Previous Items No Further Items Next Digit (During Data...
-
Page 5: Calibrating Your Scale
Calibrating Your Scale For the most accurate weights, we always suggest using the wizard and selecting manual calibration during your first calibration. For a second and additional calibrations you will enter the weights in the manual calibration area. This manual walks you through those steps. If you need assistance, please call Air- Weigh’s customer support at 888-459-3247. Before You Calibrate In order to achieve the best calibration, we recommend the following: • When entering empty weights, the trailer needs to be empty and when entering heavy weights, the trailer needs to have near the maximum legal heavy load on the trailer. • It does not matter the order your enter your heavy and empty weights. •... -
Page 6: Calibrating With The Set-Up-Wizard
Calibrating with the Set-Up Wizard Begin by selecting the wrench to enter the settings menu. Press the gears icon. Press the wand icon to enter the wizard. Selecting YES will clear previous calibrations before accepting new information. Using the arrows, select the language you want. - Page 7 Choose LBS or KGS We recommend setting a PIN to protect calibration on all scales. Choose your PIN and hit OK. Use the arrows to find and select your configuration. If you have questions about which icon to select, see the key on page 2. (If you are setting up more than 1 calibration, make sure to select the appropriate icon). Choose manual calibration. Select the empty or heavy calibration icon depending on...
- Page 8 Confirm you are either empty or heavy Enter your empty or heavyweight you obtained from a certified scale and hit OK. To complete the calibration, select the heavy (or empty) icon and repeat the previous two steps.
-
Page 9: Setting Additional Calibrations
Setting Additional Calibrations In order to setup multiple calibrations for different trailer configurations you must have gone through the set up wizard and picked the correct trailer icons. To calibrate a trailer for 2 calibrations, you must select a trailer icon with lift axles. To calibrate a trailer for 3 calibrations, you must select the trailer icon pin on with the numeral 2 underneath it. To calibrate a trailer for 4 calibrations, you must select the trailer icon pin on with the numeral 3, or 4 underneath it. - Page 10 Begin by selecting the wrench to enter the settings menu Press the weights icon Press manual calibration Select either the empty or heavy, icon depending on your trailers current status Confirm you are either empty or heavy...
- Page 11 Enter your empty or heavyweight you obtained from a certified scale and hit OK. Press the back arrow 3 times: (NOTE: If you are completely calibrating a trailer configuration one at a time you will stop here and either load or unload to finish the other half of the calibration if you haven’t done so already. Once you have completely calibrated a single configuration then proceed to the next step to change the configuration.) Press the Scale icon...
-
Page 12: Setting Your Alarms
Setting Your Alarms The LoadMaxx Trailer scale provides two individually programmable alarm settings. Built-in LEDs will light when either one – or both – of the following conditions are met: • Slow blink when the Warning Weight alarm setting is exceeded. • Fast blink when the Overweight Alarm setting is exceeded. From the main screen, select the bell. Alarms are on when the box next to the top left bell is checked. To set the alarm timeouts select he bottom left icon. To set the alarms, choose the icon in the upper right. -
Page 13: Settings
To set the overweight alarm, select the icon on the right. Enter your desired alarm weight and hit OK. Go back and select the warning weight icon on the left and,repeat to set your overweight warning. Settings You can change many of the settings on your LoadMaxx trailer scale by selecting the wrench icon. From there you can change the weights, language, PIN and more. See the key on page 2 for questions on icons. -
Page 14: Limited Warranty
Limited Warranty Air-Weigh warrants (the “Limited Warranty”) that the Products will be free from defects in material and workmanship under normal use and service with proper maintenance for the following time periods: (a) for new Scale kits, the Limited Warranty period will be 3 years; (b) for new parts and accessories sold separately, the Limited Warranty period will be 1 year; and (c) for repaired or refurbished items, including repaired or refurbished Scale kits and repaired or refurbished parts and accessories sold separately, the Limited Warranty period will be 90 days. If any Product is determined to not conform to this Limited Warranty during its applicable Limited Warranty period, Air-Weigh will, at its exclusive option, either repair or replace the Product. Limitations of Limited Warranty. Air-Weigh will have no obligation under the Limited Warranty with respect to any product if (a) Buyer fails to notify Air-Weigh in writing during the warranty period of a non-conformity, or (b) Buyer or any other person, entity, or governmental authority uses, misuses, or neglects the product in a manner inconsistent with the product’s specifications or directions for use or maintenance, modifies the product or improperly installs, handles, or maintains the product. No Repair or Modification of the products. Except as explicitly authorized or in a separate written agreement with Air-Weigh, Buyer will not service, repair, modify, alter, replace, reverse engineer, or otherwise change any of the products. -
Page 15: Procedure For Warranty Claims
Procedure For Warranty Claims ALL customers should first contact Air-Weigh Customer Support Department at (888) 459-3247 for questions regarding the use, operation, repair or return of any Air-Weigh product. In the event Air-Weigh requests to examine the product prior to disposition OR for repair or replacement, Air-Weigh requires a Return Material Authorization (RMA) number be issued before the item is returned. Customer Support will issue the RMA number. Please reference this RMA number in all correspondence. Claimed items shall be shipped freight pre-paid to: Air-Weigh Customer Support Department 1730 Willow Creek Circle, Suite 100 Eugene, Oregon 97402, USA The Air-Weigh RMA number must appear on the outside of the return packaging. Air-Weigh shall examine returned material within 30 days after receipt, or sooner if mutually agreed upon. If Air-Weigh determines that the part or assembly was defective in material or workmanship and within the warranty period, Air-Weigh will repair or replace the part or assembly and return freight pre-paid. In the event Air- Weigh determines that the part or assembly cannot be repaired or replaced and is within the warranty period, a credit not to exceed the purchase price will be issued to the Air-Weigh customer. - Page 16 1730 Willow Creek Circle • Eugene, OR 97402-9152 USA P.O. Box 24308 • Eugene, OR 97402-0437 USA Telephone (541) 343-7884 • Order Desk (888) 459-3444 Customer Support (888) 459-3247 • Fax (541) 431-3121 www.Air-Weigh.com...
