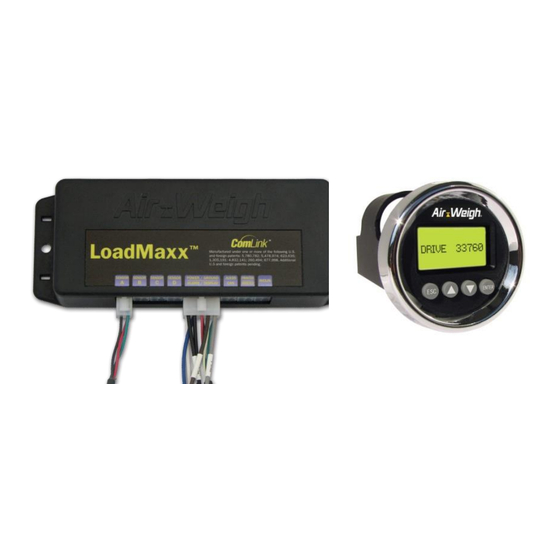

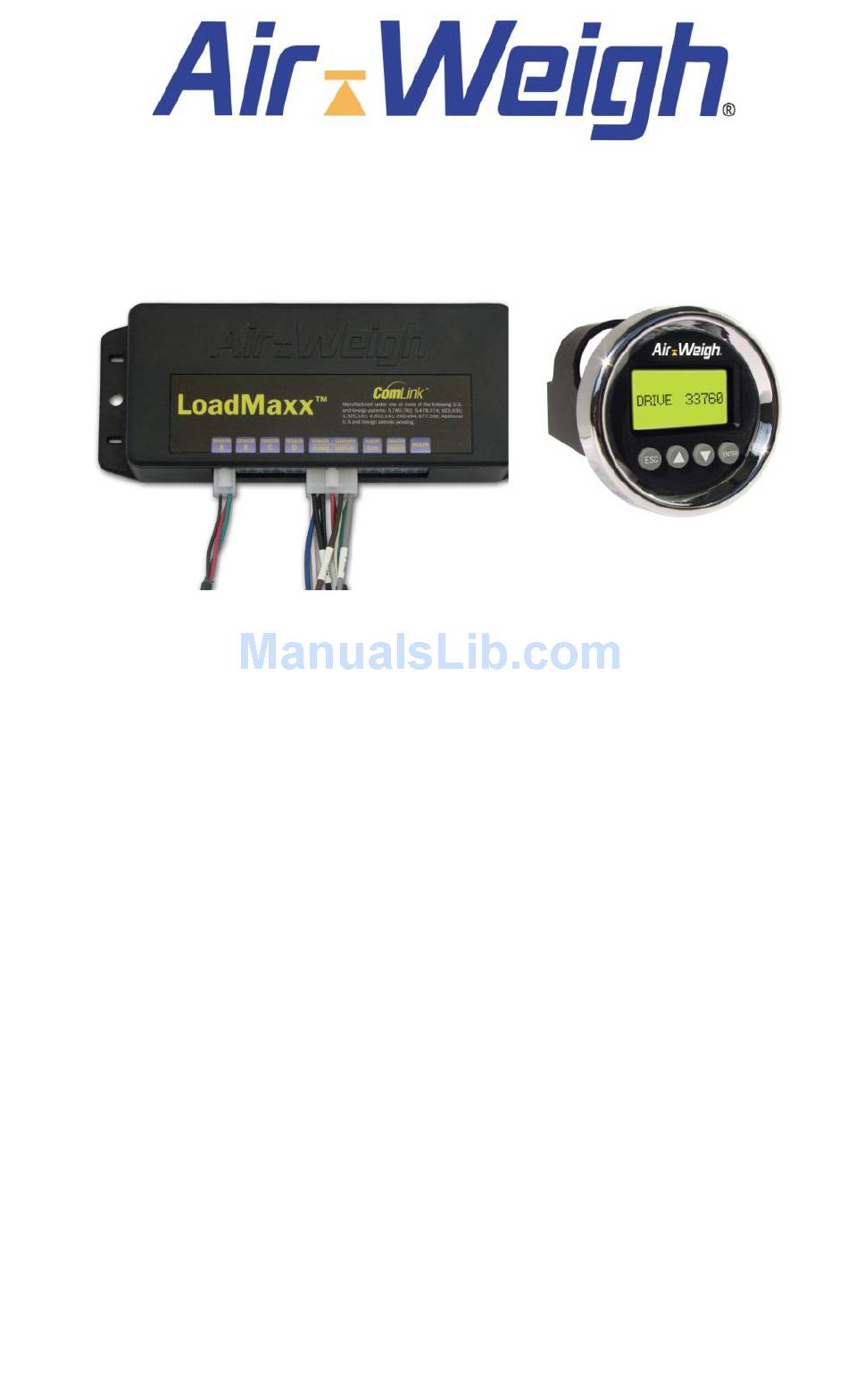

Page 1: Loadmaxx™ On-Board Scales
™ Self-Weighing Truck and Trailer Scales LoadMaxx™ On-Board Scales TRACTOR SCALE SYSTEM Calibration and Operations Manual for Tractors with a Hydraulic Lift MODEL 5809 PN: 901-0121-000 R4... -
Page 2: Table Of Contents
Table of Contents LoadMaxx™ On-Board Scales ............. 1 MODEL NUMBER NOTE ............... 5 I. LOADMAXX TRACTOR SCALE SYSTEM OVERVIEW ... 5 I.A. Scale Display Overview ............7 II. CALIBRATION ................7 II.A. Preliminary Considerations ..........8 II.B. CALIBRATING THE TRACTOR SCALE OVERVIEW ..9 II.D. - Page 3 ALARMS ................19 PRINT, SETUP MENU ............19 PRINT MENU ...............19 SYSTEM SETUP MENU ............19 CALIBRATION ..............19 SYS CONFIG ...............19 SET PIN # ................19 SYS CONFIG MENU............19 DISPLY SETUP ..............19 SCALE TYPE ...............20 DISPLY SETUP MENU ............20 WEIGHT SETUP MENU ............20 LBS / KGS ................20 2 OR 3 LINES ...............20 FILTER FREQ ..............20 SHOW / HIDE ...............20...
- Page 4 TEST ALARM ...............22 DIAGNOSTICS: COMLINKS MENU ........22 A/D READINGS ..............22 CALIB DATA ................22 COMLINK ID ................22 VII. SYSTEM TROUBLE SHOOTING .........23 VII.A. INCORRECT WEIGHT READINGS ......24 VIII. MAINTENANCE ..............25 IX. CUSTOMER SUPPORT ............25 X. Index of Application Notes ...........26 Limited Warranty .................27 Procedure for Warranty Claims ..........28...
-
Page 5: Model Number Note
MODEL NUMBER NOTE This guide is intended for use with the sensor configuration represented by model number 5809. Configuration Lift Trailer Drop & Hook: Trailer weight is available when a trailer 5809 Hydraulic equipped with a calibrated Air-Weigh scale is attached to the tractor. - Page 6 is not necessary to recalibrate unless the suspension characteristics change. For details see “Troubleshooting”. For best accuracy, calibrate and weigh on a level surface. To calibrate or weigh the hydraulic lift, you must lift the front of the trailer slightly to pressurize the hydraulic system. Briefly release the PTO pressure to stabilize the hydraulic pressure.
-
Page 7: Scale Display Overview
I.A. Scale Display Overview Before using your Air-Weigh Tractor Scale, it is necessary to calibrate it. Before starting that process it’s a good idea to become familiar with the Scale Display. Below is a definition of the use of each button. The function and use of these buttons remain the same throughout all operations of the scale. -
Page 8: Ii.a. Preliminary Considerations
When selecting this calibration method, you MUST enter empty weights when the vehicle is empty and heavy weights when the vehicle is loaded heavy. Failing to do so will result in inaccurate weight readings. Alternatively, for those with hydraulic lift systems or suspensions on several vehicles, it may be more convenient to enter the RATIO and OFFSET calibration data directly, if these are known. -
Page 9: Ii.b. Calibrating The Tractor Scale Overview
II.B. CALIBRATING THE TRACTOR SCALE OVERVIEW For Manual Calibration, the EMPTY and HEAVY axle weights must be entered by the user. When calibrating using this method, the EMPTY weights must be entered while the vehicle is empty, and the HEAVY weights must be entered while the vehicle is fully loaded. -
Page 10: Ii.d.1. Calibrating Empty Weights
II.D.1. CALIBRATING EMPTY WEIGHTS Press <ESC> one or more times until the Main Menu appears, with VIEW WEIGHTS blinking. Select PRINT,SETUP, leading to next menu. Select SYSTEM SETUP, leading to next menu. Select CALIBRATION, leading to next menu. Select MANUAL CALIBRATION, leading to next menu. Select EMPTY WEIGHT, leading to next menu. -
Page 11: Ii.d.2. Calibrating Heavy Weights
II.D.2. CALIBRATING HEAVY WEIGHTS Press <ESC> one or more times until the Main Menu appears, with VIEW WEIGHTS blinking. Select PRINT,SETUP, leading to next menu. Select SYSTEM SETUP, leading to next menu. Select CALIBRATION, leading to next menu. Select MANUAL CALIBRATION, leading to next menu. Select HEAVY WEIGHT, leading to next menu. -
Page 12: Ii.e. Calibration By Direct Entry Of Ratio And Offset
II.E. Calibration by Direct Entry of RATIO and OFFSET To use this method, you must first obtain the RATIO and OFFSET values from another LoadMaxx Tractor Scale on a tractor with an identical hydraulic lift system, which already has been correctly calibrated. Then you can directly enter these values into the Tractor Scale you wish to calibrate. -
Page 13: Iv.b. How-To-Weigh Instructions
On all Weight Displays, when a weight is changing, it flashes rapidly until it stabilizes. On all Weight Displays, if a particular axle (or GVW or Net) is over the alarm or warning weight, causing an alarm, a bell icon flashes rapidly between the axle name (or GVW or Net) and its weight. -
Page 14: Iv.c. Creating A Pin
Note: You can turn off the How-To-Weigh instructions temporarily, until the next time you turn the truck off and on, by pushing either of the up/down arrows < > when the instructions are visible. IV.C. Creating a PIN When the trailer scale PIN is set to 0, the operator will not need to enter a PIN to access the PROGRAM menu functions. -
Page 15: Iv.d.1. Alarm Function Programming Procedure
deactivation, by up to sixty seconds. These delays can prove useful in moderating alarm responses to weight oscillations, such as those occurring during travel. For details, see Product Application Note Installing and Programming Overweight Alarms, P/N 903-0122-000. To deactivate and reset an active warning or alarm weight alarm, simply press the Enter button <ENTER>... -
Page 16: Iv.d.2. Using Alarm 2 For Steer Axle Underweight
(See Section IV.C for PIN setup instructions) The bottom line gives the state of the alarm feature, “(Now ON)” or “(Now OFF).” Select TURN ON/OFF to change this state to its opposite. NOTE: Remember, to deactivate and reset an active warning or alarm weight, simply press the Enter button <ENTER>... -
Page 17: Iv.g. Large Character Display
Press the <> buttons to select the desired time period. Press ENTER. This backlight will automatically dim to the “sleep mode” after the selected operation time period. To turn on the backlight, press any button. IV.G. LARGE CHARACTER DISPLAY The Air-Weigh LoadMaxx Tractor Scale can display weights on either three lines, with twelve characters per line as shown here on the left, or with... -
Page 18: Quick Reference Menu Directory
V. QUICK REFERENCE MENU DIRECTORY LoadMaxx Scale System CALIBRATION REQUIRED PRINT, SETUP BEFORE USE SETUP shows only if data stream WEIGHTS PRINT MENU if no data stream) ALARMS PRINT REPORT PRINT, SETUP DATE / TIME REPRT COPIES SETUP shows only if data stream SYSTEM SETUP PRINT MENU... -
Page 19: Menu Operations And Definitions
VI. MENU OPERATIONS AND DEFINITIONS Press the <ESC> button one or more times to reach the Main Menu. Use the <> and <> buttons to scroll to new selections. Refer to the Quick Reference Menu Directory above for the entire menu structure. WEIGHTS DISPLAYS See Section IV.A. -
Page 20: Scale Type
SCALE TYPE See the SCALE TYPE MENU subsection, below. DISPLY SETUP MENU WEIGHT SETUP MENU LBS / KGS Changes the weight display and data entry modes to pounds or kilograms. Changing this selection will also automatically convert any calibration values previously entered to the new unit of measure. 2 OR 3 LINES Causes the Weight Displays to appear in large or normal characters. -
Page 21: More Options
When either DATA STREAM or OBM STREAM is selected, menu changes occur. In the first level menu screen, PRINT, SETUP will change to SETUP. The second level PRINT MENU screen is no longer an option choice. MORE OPTIONS Provides access to CAN bus options and inclinometer control. CAN PROTOCOL Used to change the databus protocol between J1939 (the default) and CANopen. -
Page 22: Diagnostics: Alarm Weights Menu
DIAGNOSTICS: ALARM WEIGHTS MENU ALRM WEIGHTS Shows the programmed warning and alarm weights for each axle group, GVW and Net. Values are shown on a different display for each axle group (or GVW or Net). Use the up/down arrows <> to scroll between the axle groups. -
Page 23: System Trouble Shooting
VII. SYSTEM TROUBLE SHOOTING The Air-Weigh LoadMaxx Tractor Scale system is extremely self- sufficient. To operate correctly, power and ground are the only tractor electrical connections needed. Ensure all connectors (male/female) make a good connection and at least 9.5 volts is entering the system. When troubleshooting, initially check for power at the connecting plugs. -
Page 24: Vii.a. Incorrect Weight Readings
VII.A. INCORRECT WEIGHT READINGS If both empty and heavy weights are always off by the same amount, see the subsection ADJUST WEIGHTS in the CALIBRATION section, above. If weights are otherwise incorrect, including 0 (zero) or unstable, ensure that the sensor is connected to the Truck ComLink or Trailer Scale correctly. -
Page 25: Maintenance
VIII. MAINTENANCE Scale Display: The Air-Weigh electronic scale display should be maintenance-free under normal operation. Keep the scale in a protected environment and treat as any electronic component. Gently use a clean, soft cloth, slightly damp with water, to wipe away dust from the display. -
Page 26: Index Of Application Notes
X. Index of Application Notes The following Application Notes are available from Air-Weigh Customer Support for additional information on these subjects: 903-0071-000 – Collecting and Entering Calibration 903-0073-000 – 5800, Calculating Axle Weights on a Platform Scale 903-0075-000 – J1587 Weight Messages for Users 903-0077-000 –... -
Page 27: Limited Warranty
Limited Warranty For product failures due to material or manufacturing defects, Air-Weigh will replace or repair all components for up to 3 years from shipment date to the end-user Air-Weigh customer. These three-year components include: Displays, ComLinks, Air Sensors, Power Cables, Air Sensor Assemblies, Air Sensor Harnesses, and all other associated external components. -
Page 28: Procedure For Warranty Claims
Procedure for Warranty Claims In the event Air-Weigh requests to examine product prior to disposition, OR for repairs or replacements, Air-Weigh requires a Return Material Authorization (RMA) number to be issued before the item is returned. Contact Customer Support Department at (888) 459- 3247 for an RMA number. - Page 29 Installation data See Diagnostics Menu sections, pages 22 – 23, to find the following. Scale Display serial number DIAGNOSTICS / SYSTM STATUS /▼ _________________________ Scale Display software version DIAGNOSTICS / SYSTM STATUS /▼ _________________________ LoadMaxx model number DIAGNOSTICS / COMLINKS / ID _________________________ LoadMaxx serial number DIAGNOSTICS / COMLINKS / ID...
- Page 30 Drive axle warning 2 weight DIAG / ALARMS / WTS /▼▼▼ ▼▼▼ _________________________ Drive axle alarm 2 weight DIAG / ALARMS / WTS /▼▼▼ ▼▼▼ _________________________ GVW alarm 2 weight DIAG / A’S / WTS /▼▼▼ ▼▼▼ ▼ _________________________ GVW warning 2 weight DIAG / A’S / WTS /▼▼▼...
- Page 31 Notes...
- Page 32 1730 Willow Creek Circle • Eugene, Oregon 97402-9152 USA P.O.Box 24308 • Eugene, Oregon 97402-0437 USA Telephone (541) 343-7884 • Order Desk (888) 459-3444 Customer Support (888) 459-3247 • FAX (541) 431-3121 Hours of Operation: Mon-Fri, 7am – 5pm, Pacific Time www.Air-Weigh.com...
