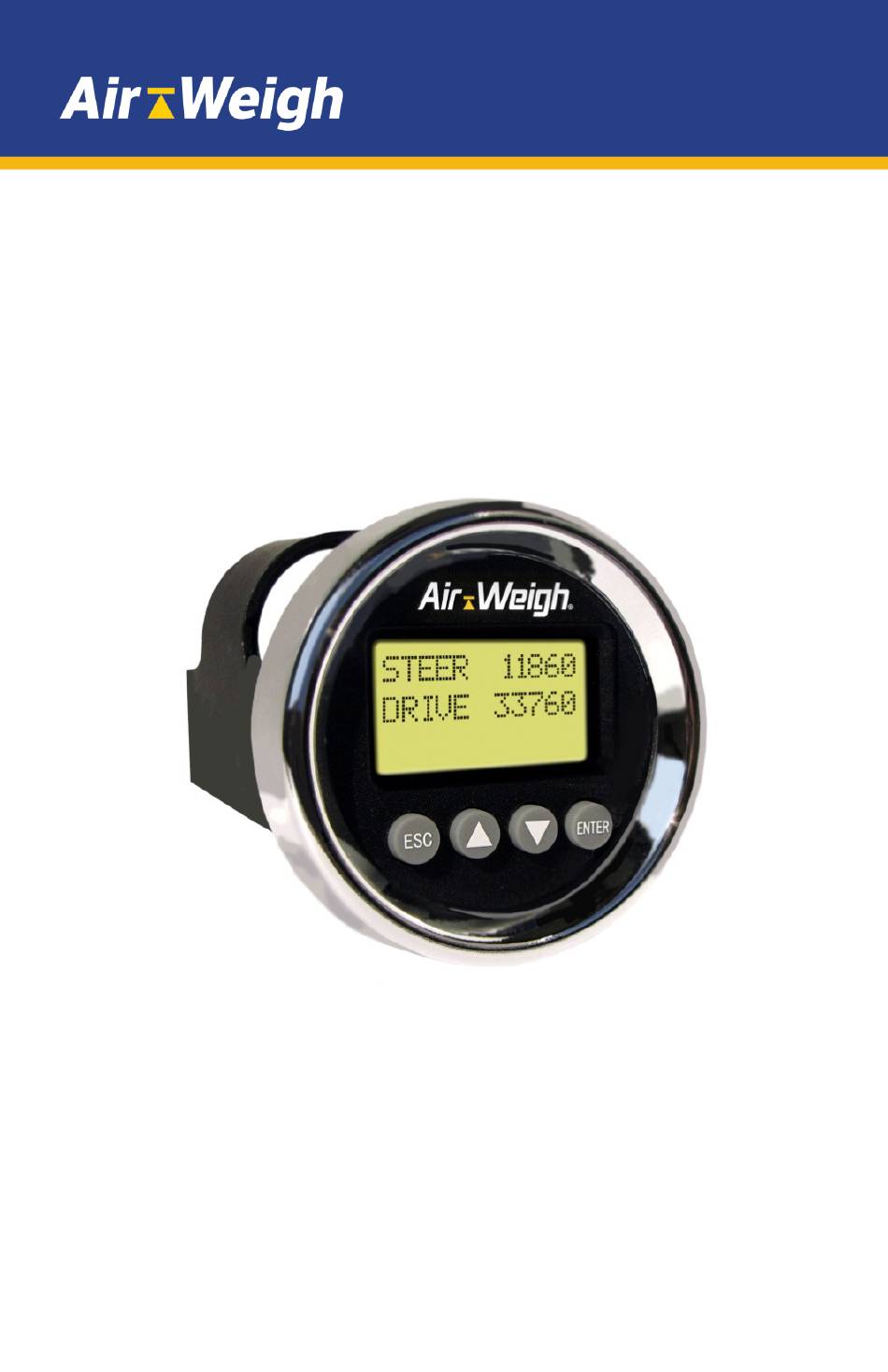

- Page 1 LoadMaxx Installation Guide Mack Camelback Suspensions Welded Steer and Drive Brackets Air-Weigh Customer Support: 888-459-3247 PN 901-0102-004 R0...
-
Page 2: Table Of Contents
Table of Contents ABOUT LOADMAXX FOR CAMELBACK SUSPENSIONS......1 ABOUT INSTALLATION................1 Overview..................1 TOOLS REQUIRED...................2 Optional Tools................2 INSTALLING THE STEER AXLE SENSOR BRACKET......3 Preparing the Steer Axle Sensor Brackets.......3 Welding the Bracket..............6 Adding a Protective Spray Paint Coating........7 INSTALLING THE DRIVE AXLE SENSOR BRACKET......8 Preparing the Camelback Suspension........8... - Page 3 NOTES......................24 LIMITED WARRANTY................27 PROCEDURE FOR WARRANTY CLAIMS..........28...
-
Page 4: About Loadmaxx For Camelback Suspensions
About LoadMaxx for Camelback Suspensions LoadMaxx is a weighing system for vehicles that works by using delection sensors and/or air pressure sensors. The sensors measure suspension lex or air pressure changes and converts that number into weight which is displayed in the truck cab. Weight information, which includes axle group weights as well as net and gross vehicle weights, are also displayed The LoadMaxx scale for vehicles with Mack Camelback suspension includes a dash-mounted display, a ComLink™... -
Page 5: Tools Required
Tools Required You will need the following tools to install delection sensors on the steer and drive axles. • Sander/grinder • 40-grit medium sandpaper • Chalk or permanent marker • MIG or ARC welder • For ARC welder: E7018 welding electrodes OR • For MIG welder: E70S-3 or E71T-1 welding wire •... -
Page 6: Installing The Steer Axle Sensor Bracket
Installing the Steer Axle Sensor Bracket Preparing the Steer Axle Sensor Brackets 1. Locate and mark the center of the steer axle. Marking the Center of the Steer Axle 2. Using chalk or a permanent marker, mark the top of the steer axle 3” on either side of the center mark (6” in total). Clean this area. - Page 7 Sanding the Steer Axle 4. Re-mark the center of the steer axle. 5. Verify that the bracket contact pads it into the sanded area and that no axle paint is left under the pad. If there is any paint at all that will be touching the brackets, sand until it has been removed.
- Page 8 7. Remove the protective tape from around the bottom of the bracket assembly. Removing the Protective Plastic Strips 8. Clean the underside of the bracket assembly with one of the supplied isopropyl alcohol pads. Cleaning the Bottom of the Bracket Assembly...
-
Page 9: Welding The Bracket
Welding the Bracket NOTE: Air-Weigh takes no responsibility for damage or failure of the steer axle due to improper welding. 1. Place the new bracket assembly at the center of the axle. Use C clamps to hold the bracket in place. Make sure you leave the alignment tool in the bracket assembly while welding. -
Page 10: Adding A Protective Spray Paint Coating
Adding a Protective Spray Paint Coating To prevent steer axle corrosion, we recommend you spray paint around the base of the bracket. 1. Using any enamel-based spray paint, paint around the base of the bracket and over the welded section. Paint all bare metal around the bracket completely. -
Page 11: Installing The Drive Axle Sensor Bracket
Installing the Drive Axle Sensor Bracket Preparing the Camelback Suspension 1. Locate and mark the top center of the trunnion tube. Marking Center of Trunnion Tube 2. Using chalk or permanent marker, mark the top of the trunnion tube 3-3/8 in. (85.725mm) on both sides of the center mark. The overall measurement is 6-3/4 in. (171.45 mm). 3. -
Page 12: Welding The Bracket
Welding the Bracket 1. Place the mounting bracket assembly on the top center of the trunnion tube. Mark the center on the alignment tool and ensure it lines up with the center mark on the trunnion tube. 2. Use C clamps to hold the bracket in place. Make sure you leave the alignment tool in the bracket assembly while welding. -
Page 13: Adding A Protective Spray Paint Coating
Adding a Protective Spray Paint Coating 1. To prevent the drive axle brackets from delaminating due to corrosion, we recommend you spray paint around the base of the brackets. 2. Using any enamel-based spray paint, paint around the base of the bracket. Paint all bare metal around the bracket completely. -
Page 14: Routing Cables
Routing Cables 1. Route the 20’ steer extension cable and the 40’ drive extension cable along their respective axles and the frame, and then through the cab irewall. Leave enough length for sensor connections. If at all possible, route along an existing wire harness. Be careful to avoid routing along pieces of the frame that may move or cause wiring to rub. -
Page 15: Installing The Comlink And Display
Installing the ComLink and Display Preparing the Cab Display for Installation 1. Select a location for the display (1) on the dash panel (5) with at least 3” of clearance behind the dash panel (5) for the unit and its connections. A higher dash position provides better visibility. 2. Using a hole saw, cut a 2-1/8” hole (2) in the dash where you will mount the display. 3. Remove the hex nuts (4) from the studs (6) on the back of the display (1) to release the mounting bracket (3). Display Preperation and Installation Installing the Cab Display 1. Position the display (1) in the hole so that it appears level on the dash. -
Page 16: Mounting The Comlink
Mounting the ComLink 1. Select a location behind the dash for the ComLink module, ensuring there is adequate access to the scale and the electrical connections. 2. The ComLink module should be oriented with the connectors facing downward and installed by either one of the following methods, using the hardware provided: Use zip ties through the holes in the ComLink module mounting ears to secure it to any appropriate wire harness... -
Page 17: Connecting Cables
Connecting Cables The provided cables are used to connect the ComLink to the vehicle’s electrical system, to the dash display unit, and, if desired, to an alarm output. Power and Ground Table White Wire Vehicle Chassis Ground Blue/Black Wire with In- 12VDC or 24VDC Key Line Fuse Hot Power... -
Page 18: Installing And Adjusting The Steer Axle Sensor
Installing and Adjusting the Steer Axle Sensor Installing the Delection Sensor 1. Remove the alignment tool from the brackets. Retain the nuts and bolts. 2. Insert the steer axle sensor with its cable extending toward the side of the vehicle where the sensor extension cable has been routed to the irewall. Make sure the engraved lettering faces up. - Page 19 5. Insert the second bolt through the second bracket hole so that the bolthead is secured in the manufactured bolthead holder.. Hand-tighten the nut. Attaching the Sensor to the Bracket...
-
Page 20: Installing And Adjusting The Drive Axle Sensor
Installing and Adjusting the Drive Axle Sensor 1. Remove the alignment tool from the brackets. Retain the nuts and bolts. 2. Insert the delection sensor into the brackets with its cable extending toward the side of the vehicle where you’ll route the sensor extension cable to the irewall. The engraved lettering on the sensor should face up. 3. Align the delection sensor with the bracket holes. -
Page 21: Setting A/D Values
A/D values. A/D refers to the analog-to-digital conversion of the sensor reading. This step will require the use of either the LoadMaxx in-dash display or the Delection Sensor Test box (P/N 1001). If using the LoadMaxx in-dash display, the scale must be installed and powered, and the Delection Sensor Extension Cable must be installed. -
Page 22: Adjusting The A/D Reading
3. Verify the A/D reading using the display in the cab (start the ignition to power on the display), or the delection sensor test box. If the reading is within range (750-1250), continue to instructions for the Final Sensor Torque. If the reading is not within range, follow the instructions to adjust the A/D readings below. Adjusting the A/D Reading If the A/D reading is above 1250, follow these instructions: 1. Loosen the nuts on both ends of the sensor 2. -
Page 23: Final Sensor Torque
If the A/D reading is below 750, or there is no A/D reading at all, follow the steps below: 1. Loosen the nuts on both ends of the sensor 2. At the plastic nut where the cable enters the sensor, exert UPWARD pressure with your ingers until the A/D reading is between 750 and 1250. Continue to apply pressure to maintain the desired A/D reading during the torque procedures in step 3. 3. -
Page 24: Cover Installation
Steer Axle Cover Installation 1. Mount the cover over the sensor and the brackets so that the sensor cable is completely under the cover. The sensor extension cable should emerge from the cover’s end port on whichever side you choose to route the cable. Ensure that the cable has free play and is not pinched by the sensor cover. - Page 25 Drive Axle Cover Installation 1. Locate the opening in the end of the cover. The opening is used for the sensor cable to go through. Cable Opening in Cover 2. Cut a notch in the supplied grommet and place it on the sensor cable.
- Page 26 3. Slide the sensor cable/grommet combination into the cover hole with the Molex connector of the sensor cable on the outside of the cover and set the Delection Sensor Cover over the sensor on the trunnion tube. Placing the Cable and Grommet into Cover 4. Slip each band clamp over the lange on the ends of the cover and tighten in place. Clamping the Cover to the Trunnion Tube Your Air-Weigh scale installation is now complete.
- Page 27 Notes...
- Page 28 Notes...
- Page 29 Notes...
- Page 30 Limited Warranty For product failures due to material or manufacturing defects, Air-Weigh will replace or repair all components for up to 3 years from shipment date to the end-user Air-Weigh customer. These three-year components include: Displays, ComLinks, Sensors, Power Cables, Sensor Assemblies, Sensor Harnesses, and all other associated external components.
- Page 31 Procedure For Warranty Claims ALL customers should irst contact Air-Weigh Customer Support Department at (888) 459-3247 for questions regarding the use, operation, repair or return of any Air-Weigh product. In the event Air-Weigh requests to examine the product prior to disposition OR for repair or replacement, Air-Weigh requires a Return Material Authorization (RMA) number be issued before the item is returned. Customer Support will issue the RMA number. Please reference this RMA number in all correspondence. Claimed items shall be shipped freight pre-paid to: Air-Weigh Customer Support Department...
- Page 32 1730 Willow Creek Circle • Eugene, OR 97402-9152 USA P.O. Box 24308 • Eugene, OR 97402-0437 USA Telephone (541) 343-7884 • Order Desk (888) 459-3444 Customer Support (888) 459-3247 • Fax (541) 431-3121 www.Air-Weigh.com...
