Summary of Contents for Air Weigh iWeigh

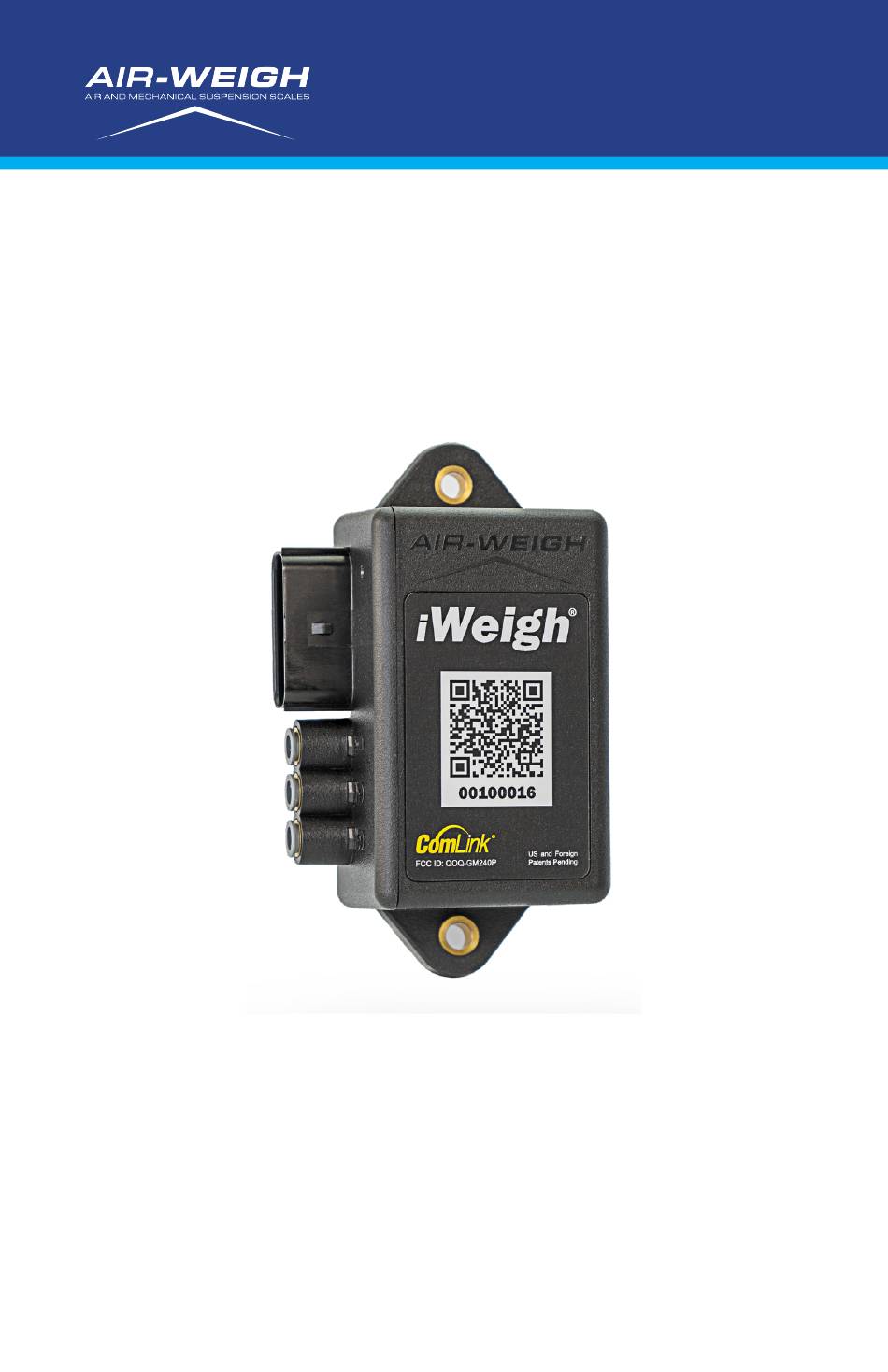

- Page 1 ® Installation Guide For Trailers Air Suspensions Air-Weigh Customer Support: 888-459-3247 PN 901-0186-000 R0 9/30/24...
-
Page 2: Table Of Contents
Table of Contents Scale Overview.................3 Air-Weigh App................3 Install Kit Includes..............3 Tools needed................3 Mounting the Scale................5 Mounting Best Practices............5 Mounting the Scale..............7 Connecting Power to the Scale............8 Installing the Air Line and Brass T Fitting........11 Downloading the Air-Weigh App..........13 Using the Air-Weigh App..............13 Limited Warranty................14 Procedure for Warranty Claims............15 Please note: Every effort has been made to ensure that the information in this... -
Page 3: Scale Overview

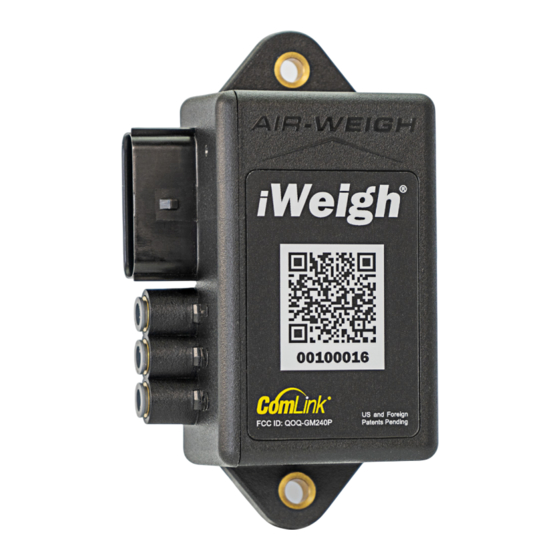

Scale is an on-board weighing system for air-ride and ® spring ride suspensions on trucks, tractors and trailers. The sensors in the iWeigh scale measure the air pressure change or axle flex ® and converts this into a displayed weight that can be viewed on the optional external display or on the Air-Weigh app. - Page 4 The front face of the iWeigh scale should face towards the tractor. ®...
-
Page 5: Mounting The Scale
Drill tapping holes where you have marked and install the installation bracket and scale to the vehicle. As a best practice, the front face of the iWeigh scale should face ®... -
Page 6: Connecting Power To The Scale
ABS system. Locate the ABS system harness. Trace the ABS harness to where the T-breakout connection will be connected. Recommended iWeigh mounting location will be approximately 3 ® feet from T-breakout inside the channel of trailer framing. -
Page 7: Installing The Air Line And Brass T Fitting
7. Slide the air line onto the T fitting as far as it will go. 8. Securely tighten the end cap. Check that the air lines are secure. 9. Route the blue air line to the installaed iWeigh location. Cut ®... -
Page 8: Using The Air-Weigh App
Using the Air-Weigh App The home screen will show all Air-Weigh iWeigh and QuickWeigh ® ® scales within broadcast range. Prior to naming your scale, it will show as QuickWeigh or iWeigh and the serial number of your ® ®... -
Page 9: Limited Warranty
Limited Warranty Procedure For Warranty Claims Air-Weigh warrants (the “Limited Warranty”) that the Products will be free from defects in ALL customers should first contact Air-Weigh Customer Support Department at material and workmanship under normal use and service with proper maintenance for the (888) 459-3247 for questions regarding the use, operation, repair or return of any following time periods: Air-Weigh product. - Page 10 1720 Willow Creek Circle • Eugene, OR 97402-9152 USA P.O. Box 24308 • Eugene, OR 97402-0437 USA Telephone (888) 459-3444 Customer Support (888) 459-3247 • Fax (541) 431-3121 www.Air-Weigh.com PN 901-0186-000 R0 9/30/24...
