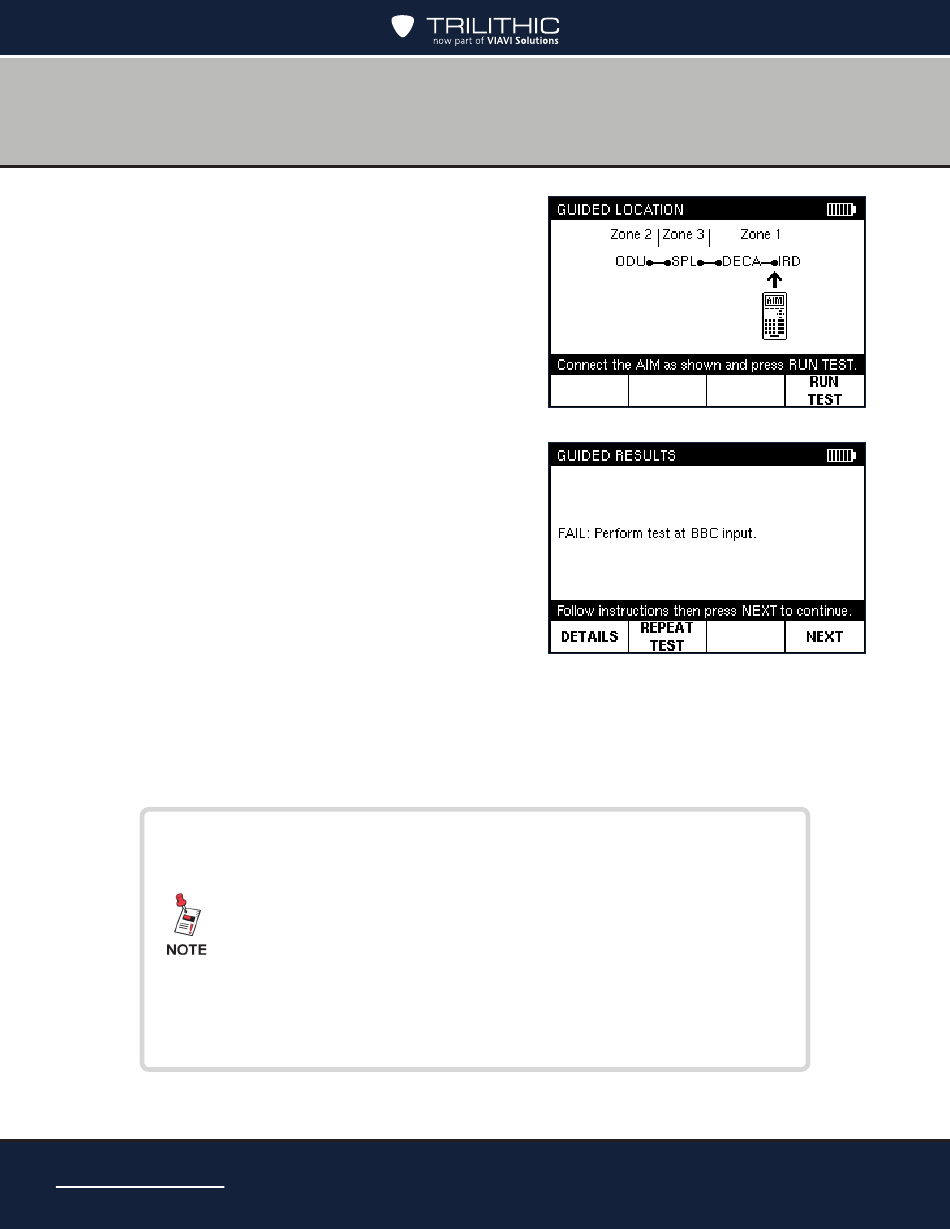

6. Connect the AIM ODU F connector at the
location in the distribution network indicated on
the display. Then press RUN TEST and wait for
the results.
7. On the GUIDED RESULTS screen, review the
results of the EIV Plus. Then do one of the
following:
•
To view detailed results, press DETAILS
to go to the GUIDED DETAILS screen.
Go to Step 8.
•
To repeat EIV Plus at the same location,
press REPEAT TEST and wait for the
results of the test.
•
If results indicate a problem with the
ODU alignment, press REPOINT to go
to the PRE CONFIGURE ODU screen.
Then follow the instructions in Chapter 6
to align the ODU.
To continue troubleshooting, press NEXT
•
to go to the GUIDED LOCATION screen
and perform EIV Plus at a new location. Repeat Step 6.
•
When all problems have been addressed and troubleshooting is complete, you
can press DONE to return to the TEST screen.
If it is raining and an attempt to realign the ODU fails, you can
enable Rain Mode to account for environmental conditions
and continue troubleshooting.
Press Fn and then 4 to enable Rain Mode. Press Repeat
Test and wait for the results of the test. The Rain Mode icon
appears on the Results screen to indicate the test was run
in Rain Mode. If the test fails again, the failure may be due to
signal degradation from the rain, or there may an issue with
the LNB.
AIM 2 Operation Manual
Page 70
