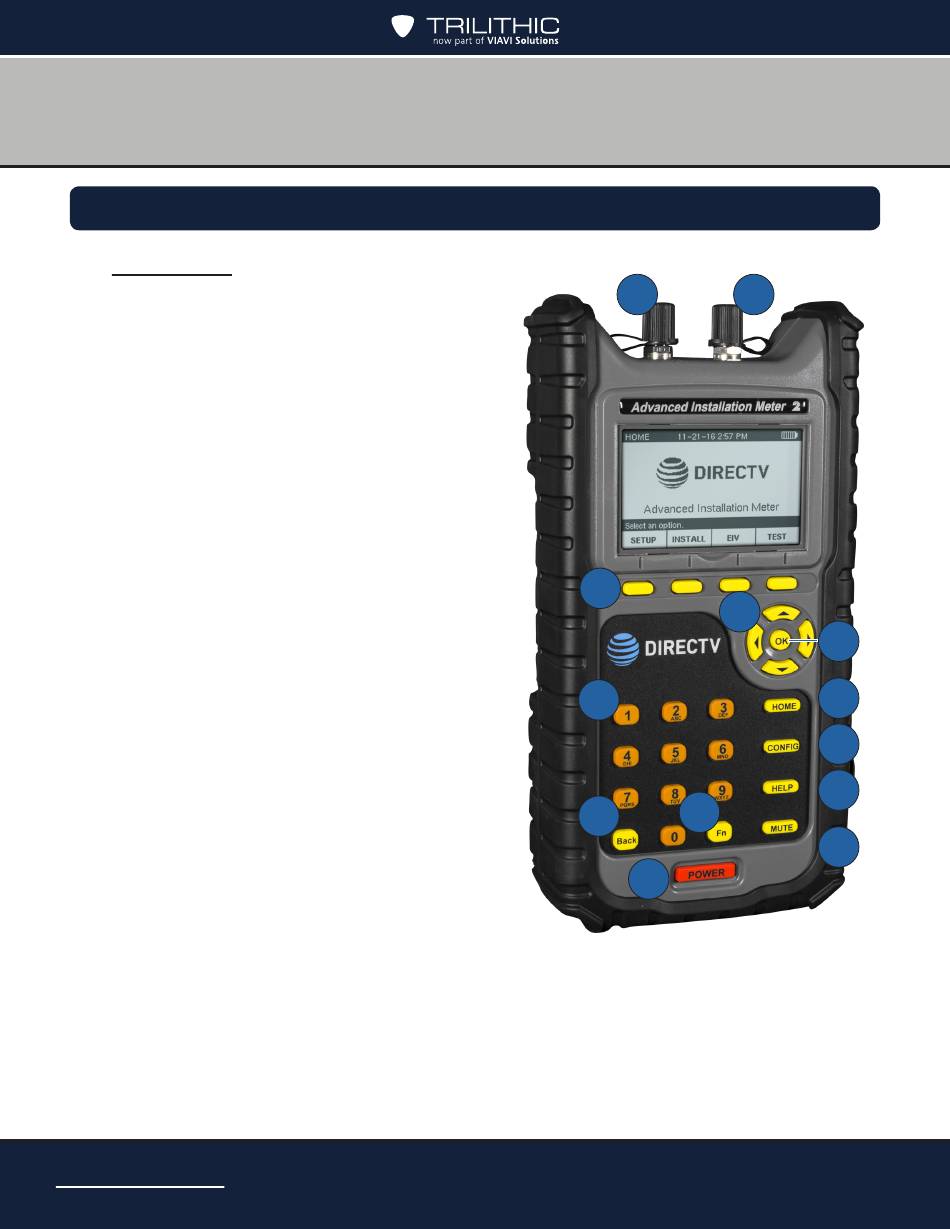

A Guided Tour of Your AIM

Front View

1. IRD F Connector
2. ODU F Connector
3. Softkeys – Select options that correspond
to the onscreen labels above
4. Arrow buttons – Navigate up and down to
select an option in a list, as well as right or
left when entering information
5. OK button – Selects the option highlighted
on the screen
6. Alphanumeric buttons – Enter text or
select a numbered list option
7. Back button – Go back to the previous
screen
8. Function button – Quickly change the
display contrast, display brightness,
volume, enable Rain Mode, and capture
screenshots
9. Power button – Turn on and off the meter
(with a long press) or backlight (with a quick
press)
10. HOME button – Displays the HOME screen
11. CONFIG button – View, delete and transfer
records, change meter settings, and
upgrade the meter's firmware.
12. HELP button – Displays instructions to help
you complete the task being performed
13. MUTE button – Turns on and off the sound
on the meter
AIM 2 Operation Manual
Page 16
1 2
3
4
6
8
7
9
5
10
11
12
13
