Typical Wiring Block Diagram Example - Danfoss PVE Series 4 Technical Information

Technical Information
Safety in application
PVE, Series 4 for PVG 32/100/120 and PVHC
Electrical block diagram for above illustration
Main power supply Emergency stop and
(battery) Man present switch
Main controller
Neutral
HMI / Joystick
Detection
Joystick
neutral switch
Control
Conditioning
Signal

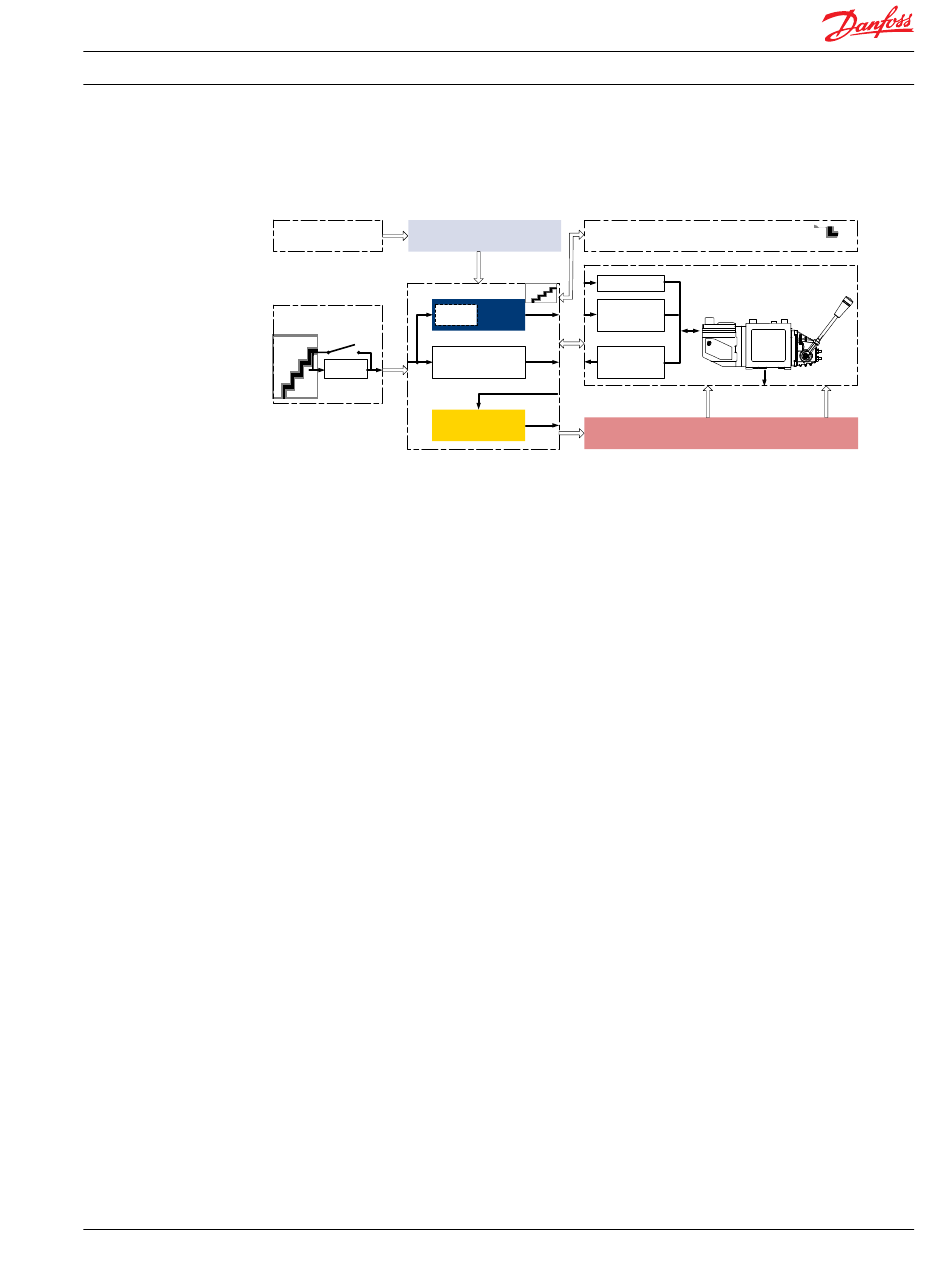

Typical wiring block diagram example

Example of a typical wiring block diagram using PVEH with neutral power off switch and fault monitoring
output for hydraulic deactivation.
520L0553 • Rev GD • Jan 2014
Supply
Supply
Signal
Conditioning
Control
Signal Fault
Monitoring
PVE fault output
Failure
Detection
Motion detection sensor
Main control valve
PVE
Hydraulic deactivation
P301 317
21
