Connecting a Satellite Receiver
Disconnect all power sources before making any connections.
1
Connect the satellite antenna cable to the satellite receiver's SATELLITE
IN jack.
2 Using AUDIO and S VIDEO cables, connect the satellite receiver' s AUDIO
and S VIDEO OUT jacks to the TV's AUDIO and S VIDEO IN jacks
(VIDEO IN 1 or 3).
3 Connect the supplied 75-ohm coaxial cable from your cable or antenna to the
TV' s VHF/UHF jack.

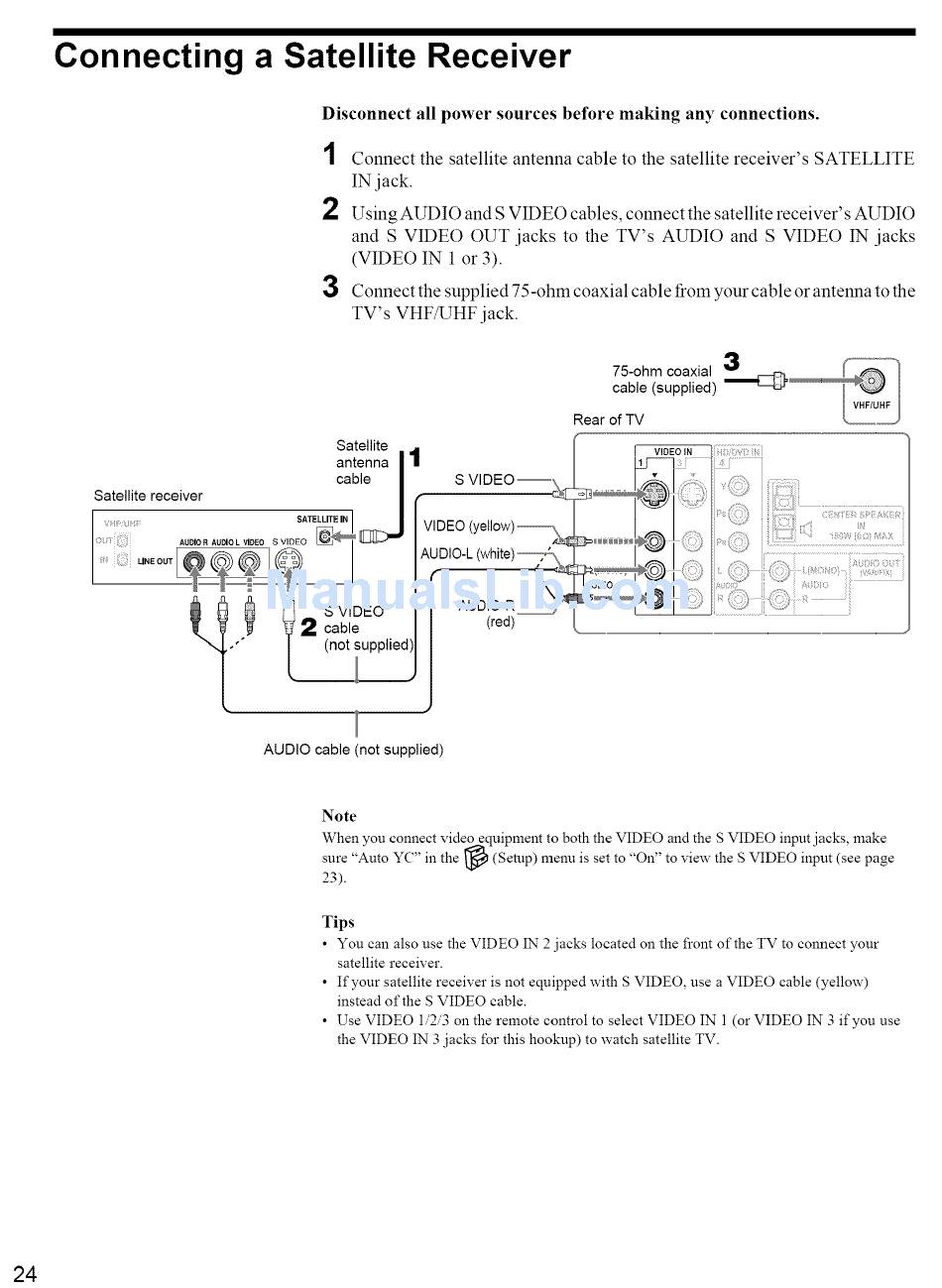

Satellite =
a2_2 na I 1
Satellite receiver I
_'_ l S VIDEO
m'_ cable
.'" (not supplied',
AUDIO-R
(red)
75-ohm coaxial 3 /')
cable (supplied) _ { V2F_i
J
Rear of TV ............................
AUDIO cable (not supplied)
Note
When you connect video equipment to both the VIDEO and the S VIDEO input jacks, make
,, ,,
"Auto YC ' in the _ (Setup) menu is set to "On' to view the S VIDEO input
sure
(see page
23).
Tips
• You can also use the VIDEO IN 2 jacks located on the front of the TV to connect your
satellite receiver.
• If your satellite receiver is not equipped with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
• Use VIDEO 1/2/3 on the remote control to select VIDEO IN 1 (or VIDEO IN 3 if you use
the VIDEO IN 3 jacks for this hookup) to watch satellite TV.
