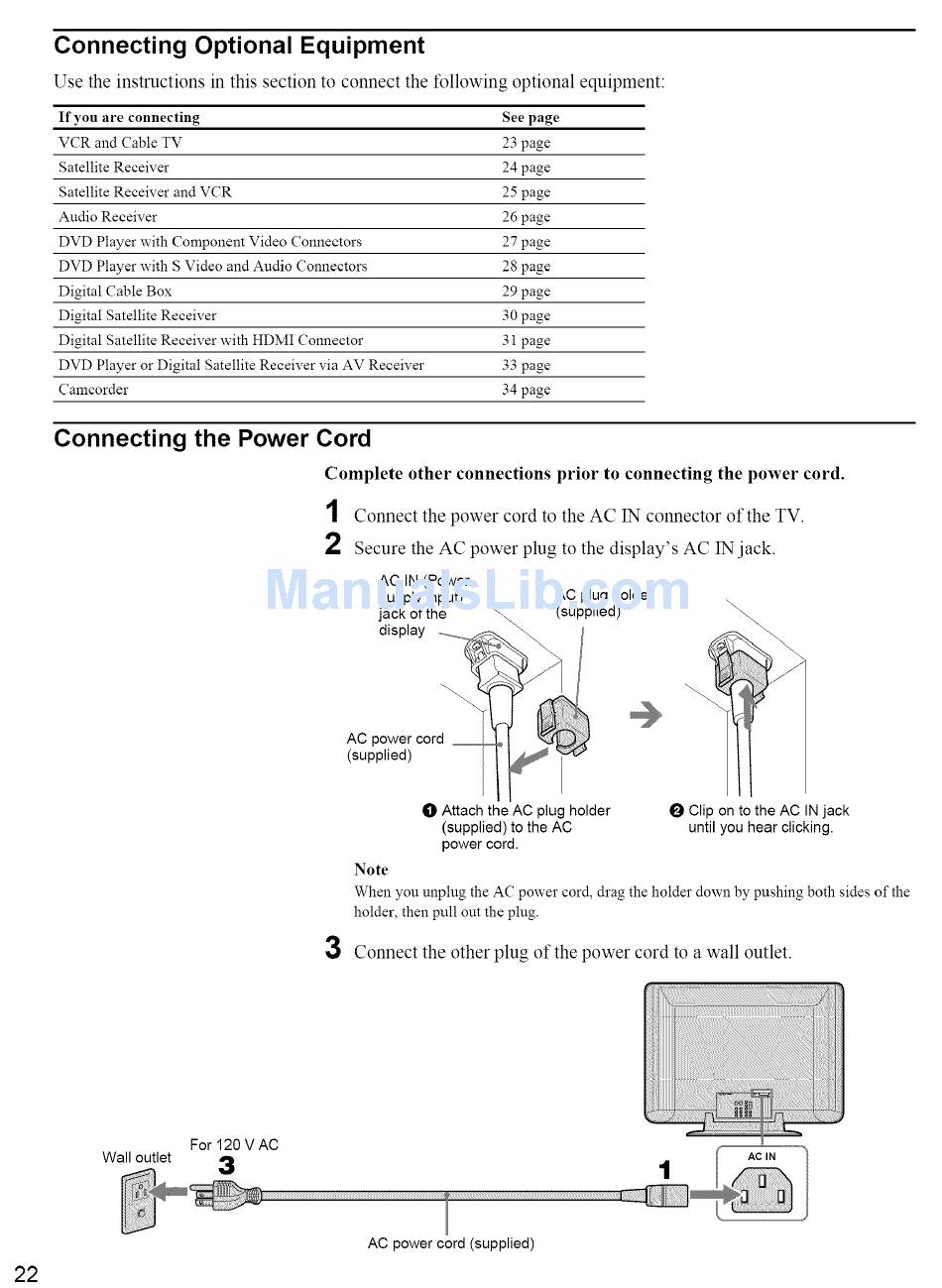

Connecting Optional Equipment
Use the instructions in this section to connect the following optional equipment:
If you are connecting See page
VCR and (?able TV 23 page
Satellite Receiver 24 page
Satellite Receiver and VCR 25 page
Audio Receiver 26 page
DVD Player with Component Video Connectors 27 page
DVD Player with S Video and Audio Connectors 28 page
Digital Cable Box 29 page
Digital Satellite Receiver 30 page
Digital Satellite Receiver with HDMI Connector 31 page
DVD Player or Digital Satellite Receiver via AV Receiver 33 page
Cam(order 34 page
Connecting the Power Cord
Complete other connections prior to connecting the power cord.
1 Connect the power cord to the AC IN connector of the TV.
2 Secure the AC power plug to the display's AC IN jack.
AC IN (Power
supply input) AC plug holder ..
jack of the _ (supplied) "-..
display "- "
AC power cord
(supplied)
O Attach the AC plug holder
(supplied) to the AC
power cord.
O Clip on to the AC IN jack
until you hear clicking.
Note
When you unplug the AC power cord, drag the holder down by pushing both sides of the
holder, then pull out the plug.
3 Connect the other plug of the power cord to a wall outlet.
For 120 V AC
Wall outlet 3
AC IN
22
AC power cord (supplied)
