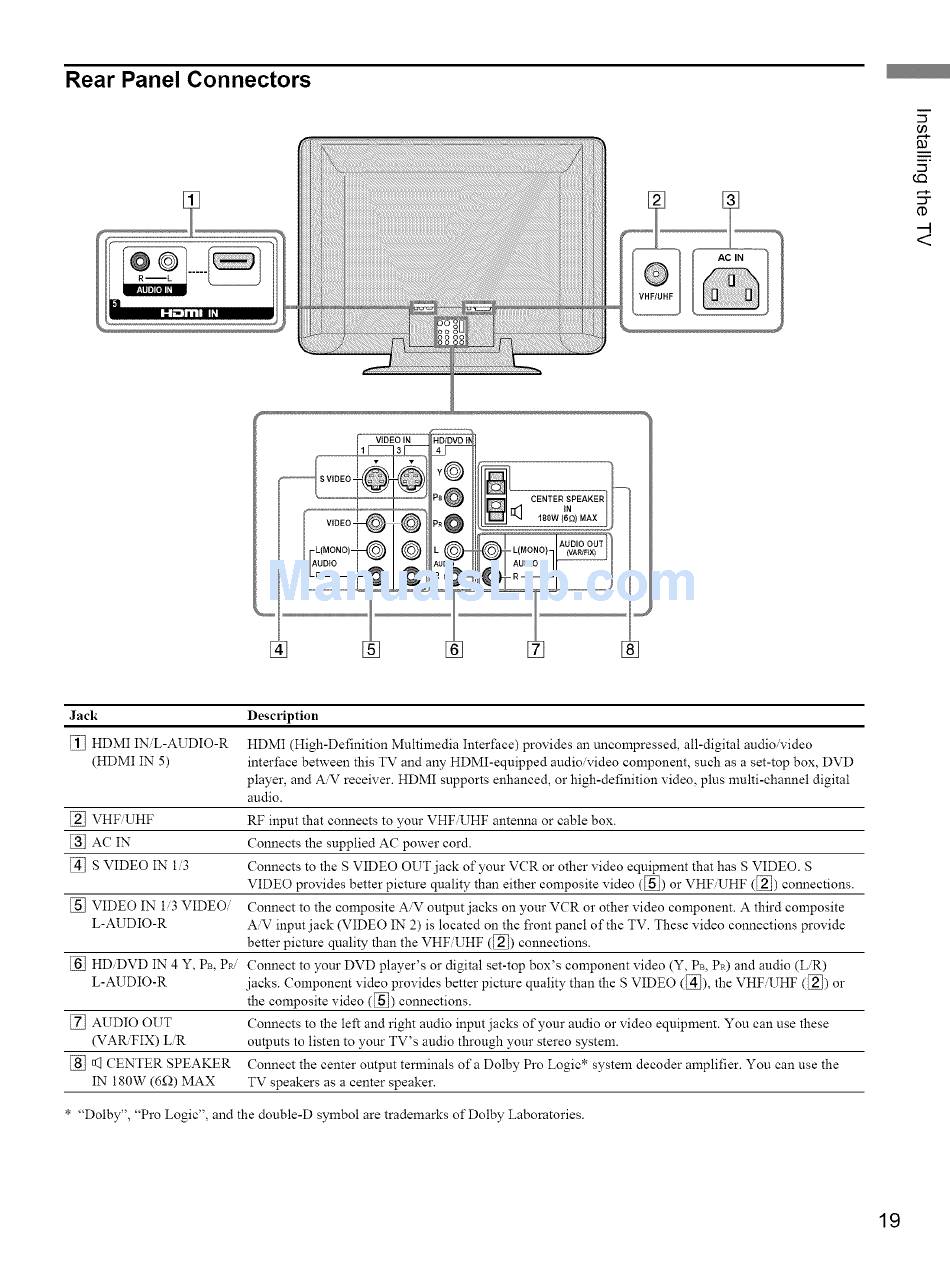

Rear Panel Connectors
i VIDEO -
_I-L(MONO)-
VIDEO IN _HD/DVD I_
I " Y©
CENTERISPEAKER
_-_L(MO AUDIO OUT
I
rQ
-q
<
Jack Description
[] HDMI INiL-AUDIO-R HDMI (High-Definition Multimedia Inter_ace) provides an uncompressed, all-digital audio/video
(HDMI IN 5) interface between this TV and any HDMI-equipped audio/video component, such as a set-top box, DVD
player, and AN receiver. HDMI supports enhanced, or high-definition video, plus nmlti-channel digital
audio.
[] VHFiUHF RF input that connects to your VHFiUHF antenna or cable box.
[] AC IN Connects the supplied AC power cord.
[] S VIDEO IN 1/3 Connects to the S VIDEO OUT jack of your VCR or other video equipment that has S VIDEO. S
VIDEO provides better picture quality than either composite video ([_) or VHF&JHF ([]) connections.
[] VIDEO IN i/3 VIDEO/ Connect to the composite AiV output jacks on your VCR or other video component. A third composite
L-AUDIO-R AiV input jack (VIDEO IN 2) is located on the fi'ont panel of the TV. These video connections provide
better picture quality than the VHFiUHF ([]) connections.
[] HDiDVD IN 4 Y, PB, PRi Connect to your DVD player's or digital set-top box's component video (Y, PB, PR) and audio (L/R)
L-AUDIO-R jacks. Component video provides better picture quality than the S VIDEO ([]), the VHFiUHF ([]) or
the composite video ([]) connections.
[] AUDIO OUT Connects to the left and right audio input jacks of your audio or video equipment. You can use these
(VAR.FIX) LR outputs to listen to your TV's audio through your stereo system.
[] KI CENTER SPEAKER Connect the center output terminals of a Dolby Pro Logic* system decoder amplifier. You can use the
IN 180W (6f2) MAX TV speakers as a center speaker.
* "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.
19
