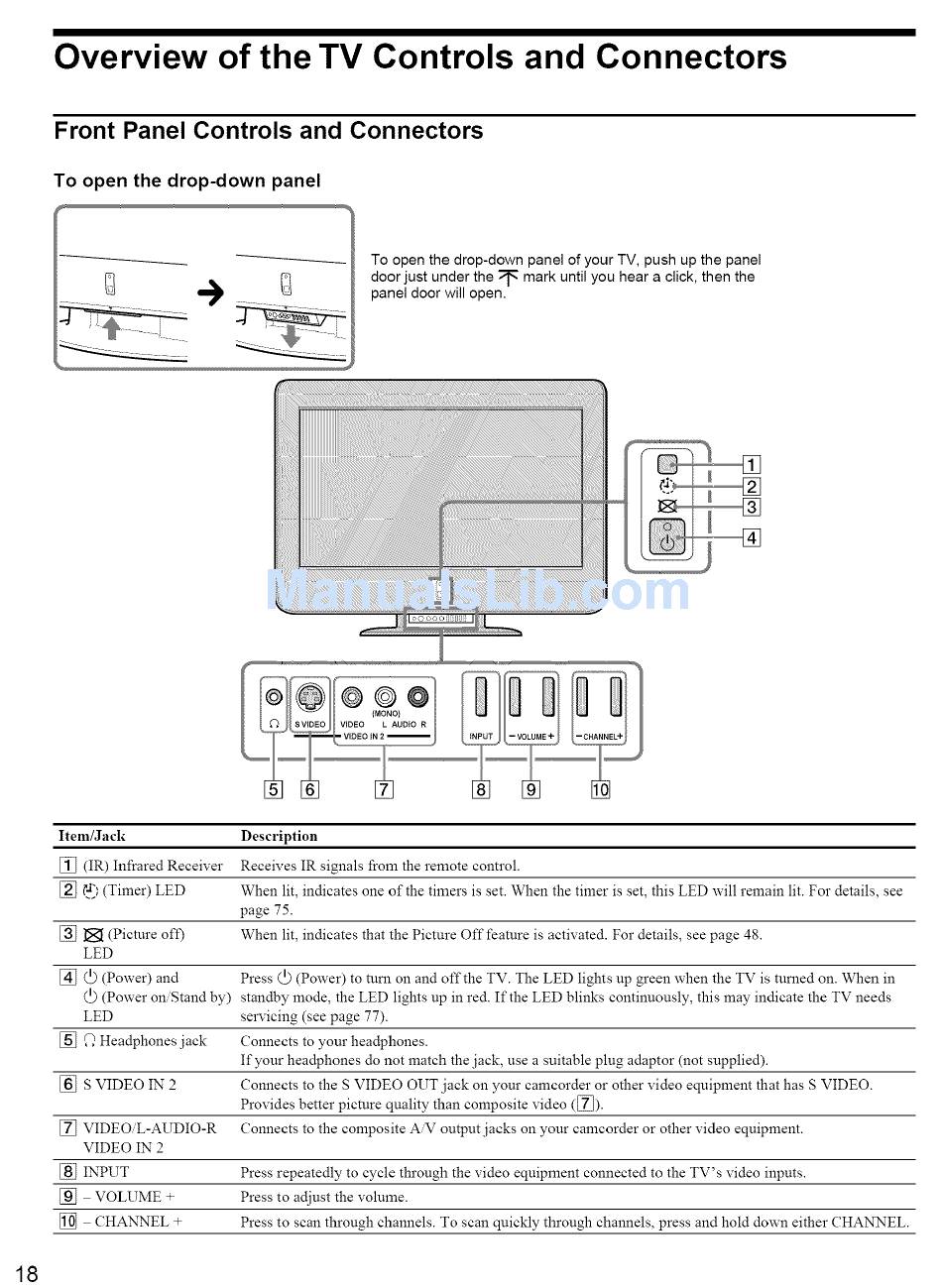

Overview of the TV Controls and Connectors
Front Panel Controls and Connectors
To open the drop-down panel
To open the drop-down panel of your TV, push up the panel
door just under the ::_ mark until you hear a click, then the
panel door will open.
Item/Jack Description
[] (IR) Infrared Receiver Receives IR signals from the remote control.
[] _'_ (Timer) LED When lit, indicates one of the timers is set. When the timer is set, this LED will remain lit. For details, see
page 75.
[] _[ (Picture ofl) When lit, indicates that the Picture Off feature is activated. For details, see page 48.
LED
[] (_) (Power) and Press (_) (Power) to turn on and offthe TV. The LED lights up green when the TV is turned on. When in
(_) (Power on/Stand by) standby mode, the LED lights up in red. If the LED blinks continuously, this may indicate the TV needs
LED servicing (see page 77).
[] _) Headphones jack Connects to your hea@hones.
If your headphones do not match the jack, use a suitable plug adaptor (not supplied).
[] S VIDEO IN 2 Connects to the S VIDEO OUT jack on your camcorder or other video equipment that has S VIDEO.
Provides better picture quality than composite video ([_).
[] VIDEOiL-AUDIO-R Connects to the composite AiV output jacks on your camcorder or other video equipment.
VIDEO IN 2
[] INPUT Press repeatedly to cycle through the video equipment connected to the TV's video inputs.
[] VOLUME + Press to adjust the volume.
[] CHANNEL + Press to scan through channels. To scan quickly through channels, press and hold down either CHANNEL.
18
