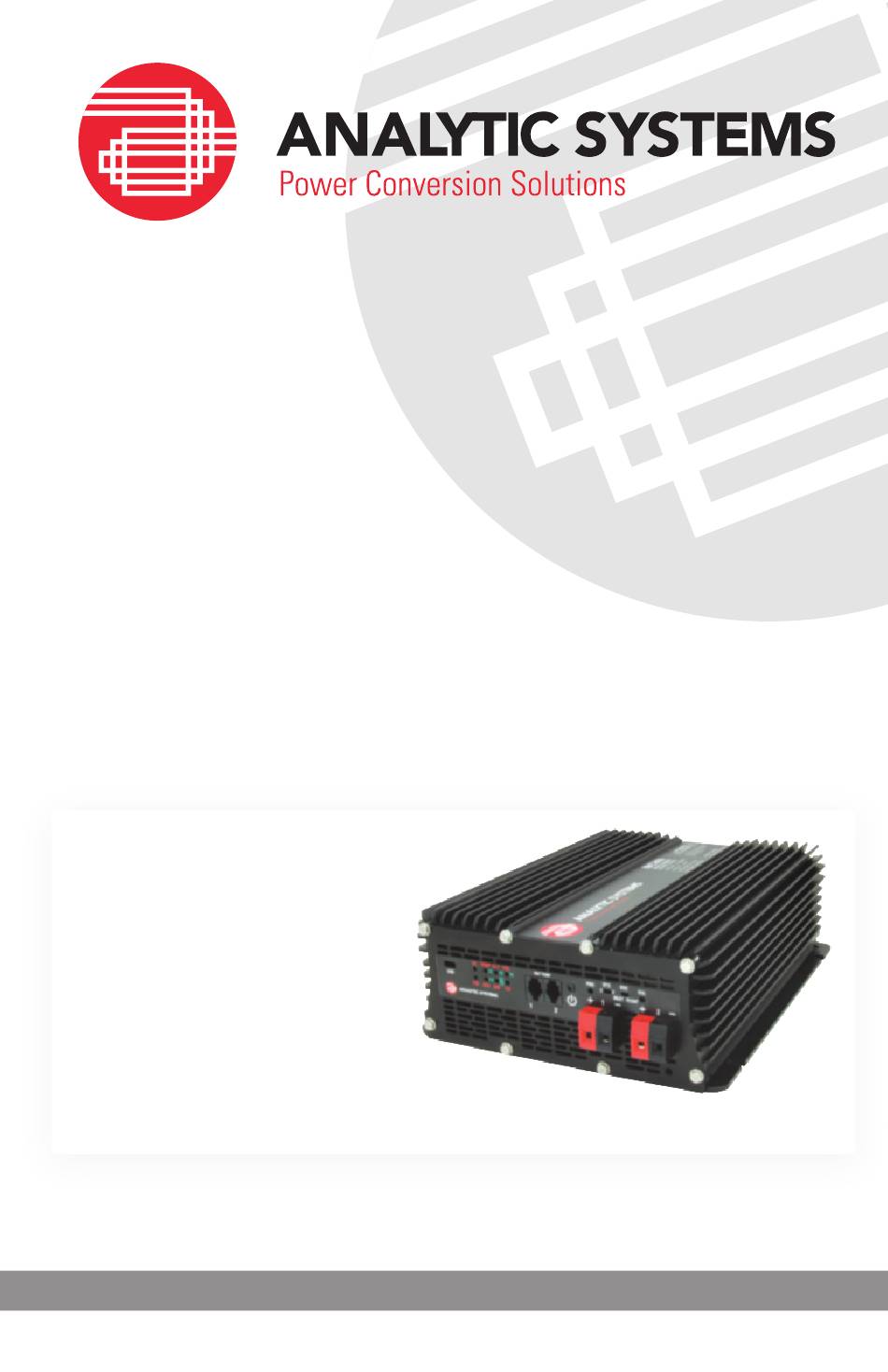

INSTALLATION &
OPERATION MANUAL
IBC320
Intelligent Battery Charger
An ISO9001 and AS9100 Registered Company
Battery Chargers
•
Inverters
•
Power Supplies
•
Voltage Converters
8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA)
www.analyticsystems.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Analytic Systems IBC320
Summary of Contents for Analytic Systems IBC320
- Page 1 INSTALLATION & OPERATION MANUAL IBC320 Intelligent Battery Charger An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com...
- Page 2 Copyright (2005-2015) Analytic Systems Ware (1993) Ltd. Revised - March 23, 2015...
-
Page 3: Important & Safety Instructions
IMPORTANT & SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS — this user guide contains important safety and operating instructions for the battery charger. BATTERY CHARGER PRECAUTIONS 1. Do not expose the battery charger to rain or snow unless it is a sealed model. 2. -
Page 4: Grounding And Ac Power Cord Connection Instructions
Medical Equipment Notice Analytic Systems does not recommend the use of the IBC Series Battery Chargers in life support applications where failure or malfunction of this product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. -
Page 5: Specifications
Five Years Parts and Labor Safety Built to meet ABS, CE, UL458 and CSA 22.2.107.1 * Specifications subjects to change without notice. Designed and manufactured by: ANALYTIC SYSTEMS WARE (1993) LTD. 8128 River Way p. 604.946.9981 f. 604.946.9983 Delta, BC V4G 1K5 Canada tf. -
Page 6: User Guide
USER GUIDE Introduction The IBC320 Intelligent Battery Charger delivers a full 300 watts of charging power to charge a 12, 24, 32 or 48 volt, one or two bank battery system (batteries must share a common ground). The charger comes standard with easy to use color coded battery connection terminals. -
Page 7: Installation
Package Contents The box should contain: • One IBC320 Intelligent Battery Charger, • One Battery Temperature Sensor (a second sensor is available from Analytic Systems or your dealer at additional cost if required), • One Mini-USB to Laptop cable • This user guide (a pdf copy can be downloaded from www.analyticsystems.com) •... -
Page 8: Battery Type
Connection INSTALLATION INDICATORS TEMP LO V TEMP LO V BATTERY POLARITY REVERSED AC PRESENT 1. Connect the charger to the batteries before connecting to the AC mains. 2. As you complete the connection to each battery, check the ‘POL’ indicator light on the charger front panel. -
Page 9: Battery Type Indicators
AGM – **AGM (Absorbed Glass Mat) batteries differ from flooded lead acid batteries in that the electrolyte is held in the glass mats, as opposed to freely flooding the plates. Very thin glass fibers are woven into a mat to increase surface area enough to hold sufficient electrolyte on the cells for their lifetime. -
Page 10: Power Limit
Power Limit Depending on the size and type of the battery or batteries connected to the charger, the standard charging current output of the charger may be more than is optimal or recommended. Refer to the documentation from your battery manufacturer to determine the maximum safe charging current. -
Page 11: Exit Without Saving
DEFAULT BATTERY TEMPERATURE INDICATORS COLD WARM COLD WARM TEMP TEMP DEFAULT BATTERY TEMP 21C DEFAULT BATTERY TEMP 5C BLINKING COLD WARM COLD WARM TEMP TEMP DEFAULT BATTERY TEMP 38C AUTO BATTERY TEMP Saving To save the configuration and exit Setup at any point in the process, press and hold the PRG button for 3 seconds until you hear a one second beep. - Page 12 2 Stage / 3 Stage (STG) Profile Select The switch on the left selects a 2 Stage or 3 Stage charging profile. A 2 Stage charging profile consists of charging the battery at a constant current until the battery voltage reaches the Float Voltage. The charger will then maintain the battery at the Float Voltage and the current will gradually taper down.
-
Page 13: Operation
If the AC power fails or is disconnected, the charger will resume charging the batteries when AC is restored. The IBC320 Charger is so efficient that is does not need a cooling fan to operate at maximum performance. However, in a very hot ambient environment the microprocessor will reduce power output as needed to keep the circuitry operating at a safe and reliable temperature. -
Page 14: Charging Indicators
Equalize Cycle An equalize cycle is a deliberate overcharge of the battery at a low current to force an undercharged cell to charge up to match the charge of the good cells in the battery. This cycle should only be selected once every 6 months or thereabouts as it is hard on the good cells of the battery and can cause water loss. -
Page 15: Power Supply Mode
Power Supply Mode The IBC320 charger can be switched to Power Supply Mode at any time by pressing and holding the Power button for 3 seconds until you hear 2 beeps. This changes the operation of the charger in the following ways. -
Page 16: Maintenance
Maintenance The charger requires no maintenance other than the occasional wipe down to remove dust that could reduce its ability to dissipate heat, and carefully blow air through the cooling vent to remove any dust buildup on it or inside the unit. Dry Contact Relay (option) The charger can be fitted with a 1 amp dry contact relay that can be used to indicate charger status to a monitoring system. -
Page 17: Troubleshooting
Troubleshooting The IBC320 charger is designed to provide years of reliable service. However in the event that it does not seem to be operating correctly, here are some things you can check. AC Present LED does not come on. First make sure any external circuit breaker is ON. Unplug or turn off the external power to the charger. - Page 18 laptop and using the Power Wizard program to see if a more detail error message is there No Battery If the charger is turned on without a battery connected, it will show this display. Simply connect a battery to clear this fault. If a battery IS connected and you see this fault, it usually means the battery is completely discharged.
-
Page 19: Abbreviations And Definitions
Abbreviations and definitions We use a number of abbreviations on the labels to save space. Here are the full words corresponding to each abbreviation along with common battery charger terms and their definitions: ABBREVIATIONS POL – Polarity. Refers to the correct connection of the Positive and Negative terminals of the battery to the charger. - Page 20 • Absorption – The first Constant Voltage stage in a 3 stage charging algorithm, where the battery is maintained at an elevated voltage for a period of time to ensure full and equal recharging of all cells. • Equalize – A deliberate overcharge at low current to bring a weak cell up to the same charge level as the good cells in a weak battery.
-
Page 21: Limited Warranty
2. This warranty is in effect for 10 years from the date of purchase by the end user. 3. Analytic Systems will determine eligibility for warranty from the date of purchase shown on the warranty card when returned within 30 days, or... - Page 24 An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com...
