Summary of Contents for Analytic Systems BCD305-12-24

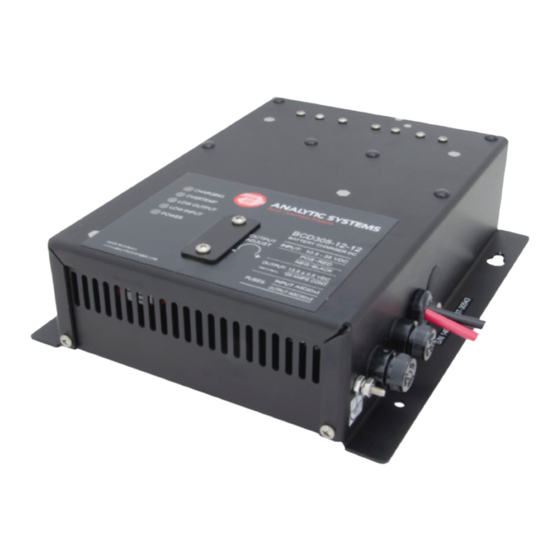

- Page 1 INSTALLATION & OPERATION MANUAL BCD305 SERIES DC Battery Charger An ISO9001 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com...
-
Page 2: Battery Charger Precautions
DC SOURCE BATTERY CHARGER IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS — This manual contains important safety and operating instructions for the battery charger. BATTERY CHARGER PRECAUTIONS 1. Do not expose the battery charger to rain or snow unless it is a sealed model. 2. - Page 3 Medical Equipment Notice Analytic Systems does not recommend the use of their products in life support applications where failure or malfunction of this product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness.
- Page 4 • Table of Contents • Description/Overview of product • Box Contents • Operation instructions • Mounting Instructions • Connection instructions • Configuration instructions • Options • Faults • Specifications • Warranty Copyright (2005-2016) Analytic Systems Ware (1993) Ltd. Revised - August 28, 2017...
-
Page 5: Box Contents
The box you have received should contain the following: • One BCD305 SERIES DC Battery Charger • #10 AWG Input Wires (Positive & Negative) • This manual • One Warranty Card If anything is missing or damaged please contact your dealer or Analytic Systems for a replacement... -
Page 6: Installation
Installation MOUNTING Mount the unit in a DRY location. Allow at least 1 inch of clearance for adequate cooling. POWER CONNECTION The unit is supplied with input power leads 1 meter long. This should normally be adequate to connect to a source of power. If you must extend the cable: •... -
Page 7: Operation
Operation Turn the power switch on the front of the unit on to energize the outputs. If you wish to adjust the output voltage, first attach a good digital voltmeter to the output terminals to monitor the voltage. Next, remove the cover plate (secured by 2 screws) to expose the output adjust potentiometer. -
Page 8: Remote Control Option
IMPORTANT: This remote is to be used only on Battery Chargers manufactured by Analytic Systems. REMOTE CONNECTOR This connector is located on the side of the unit. Important: To prevent the possibility of High Voltage Electrical Shock, do not power up the battery charger unless all wiring from the unit to the remote is securely connected. -
Page 9: Specifications
Charging Current = Input Volts/Output Volts x 26 For example, at 10.5VDC in and 13.6VDC out, the charging current = 10.5/13.6 x 26 = 20.1 amps Designed and manufactured by: ANALYTIC SYSTEMS WARE (1993) LTD. 8128 River Way p. - Page 10 Special Services & Options Line AC Detect & Autoswitch UPS Battery Backup (1A C On B pWs/VtC m nstAnt Attery ACkup fOr ACkmOunt Odels COTS | MIL461F, MIL810G (MIL Connectors) (V ) (W {-40 IBrAtIOn rOteCtIOn hOuse tested And repOrt fOr eACh unIt VAIlABle As dd On tO ptIOn...
-
Page 11: Limited Warranty
2 Years from date of manufacture for non-standard or OEM products 1 Year from date of manufacture for encapsulated products. 3. Analytic Systems will determine eligibility for warranty from the date of purchase shown on the warranty card when returned within 30 days, or... - Page 12 An ISO9001 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com...
