Summary of Contents for Analytic Systems BCD605

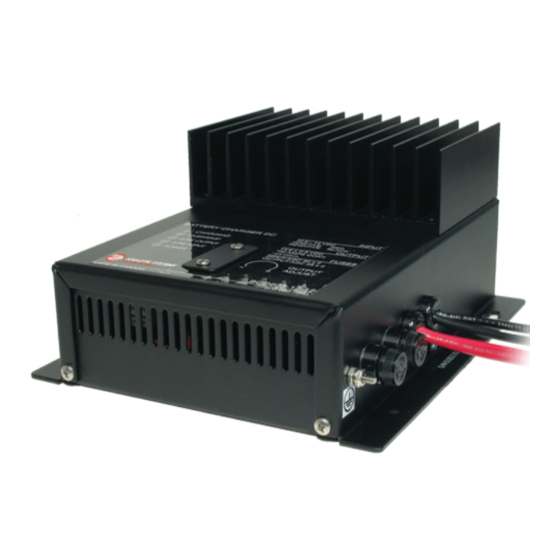

- Page 1 Installation & Operation Manual BCD605 DC Battery Charger 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 1.800.668.3884 (US/CANADA) www.analyticsystems.com...
- Page 2 Copyright (2005-2013) Analytic Systems Ware (1993) Ltd.
-
Page 3: Important & Safety Instructions
IMPORTANT & SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS — This manual contains important safety and operating instructions for the battery charger. ALL BATTERY CHARGERS 1) CAUTION — To reduce risk of injury, charge only lead acid or sealed gel cell type rechargeable batteries. -
Page 4: Dc Connection Precautions
Analytic Systems does not recommend the use of the BCD605 Series Battery Chargers in life support ap- plications where failure or malfunction of this product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. - Page 5 Introduction This all new single board design incorporates state of the art switchmode technology for unmatched efficiency and ultra-quiet operation. Multiple stages of filtering reduce radiated or conducted noise to very low levels. Extra features include adjustable output voltage, audible and visual indicators for low input voltage, low output voltage and over temperature.
-
Page 6: Specifications
For example, at 10.5VDC in and 13.6VDC out, the charging current = 10.5/13.6 x 40 = 30.8 amps * This is Analytic Systems’ suggested range. Please consult your battery manufacturer for their recommendations. * Specifications subjects to change without notice. -
Page 7: Installation
The BCD605-12-12 is a single bank charger ONLY and must be hooked up as shown in the drawing above! The BCD605-12-24 may be used as a dual bank charger if the input voltage is less than 15 volts! If the input is... -
Page 8: Operation
Operation Turn the power switch on the front of the unit on to energize the outputs. If you wish to adjust the output voltage, first attach a good digital voltmeter to the output terminals to moni- tor the voltage. Next, remove the cover plate (secured by 2 screws) to expose the output adjust potentiom- eter. -
Page 9: Remote Control Option
The remote control panel allows the unit to be operated remotely as well as duplicating all the diagnostic indicators and audible alarm. IMPORTANT: This remote is to be used only on Battery Chargers manufactured by Analytic Systems. REMOTE CONNECTOR This connector is located on the side of the unit. Important: To prevent the possibility of High Voltage Electrical Shock, do not power up the battery charger unless all wiring from the unit to the remote is securely connected. -
Page 10: Limited Warranty
2 Years from date of manufacture for non-standard or OEM products 1 Year from date of manufacture for encapsulated products. Analytic Systems will determine eligibility for warranty from the date of purchase shown on the warranty card when returned within 30 days, or... - Page 11 Only the Warrantor shall perform warranty service. Any attempt to remedy the defect by anyone else shall render this warranty void. There shall be no warranty for defects or damages caused by faulty installation or hook-up, abuse or misuse of the equipment including exposure to excessive heat, salt or fresh water spray, or water immersion except for equipment specifically stated to be waterproof.
