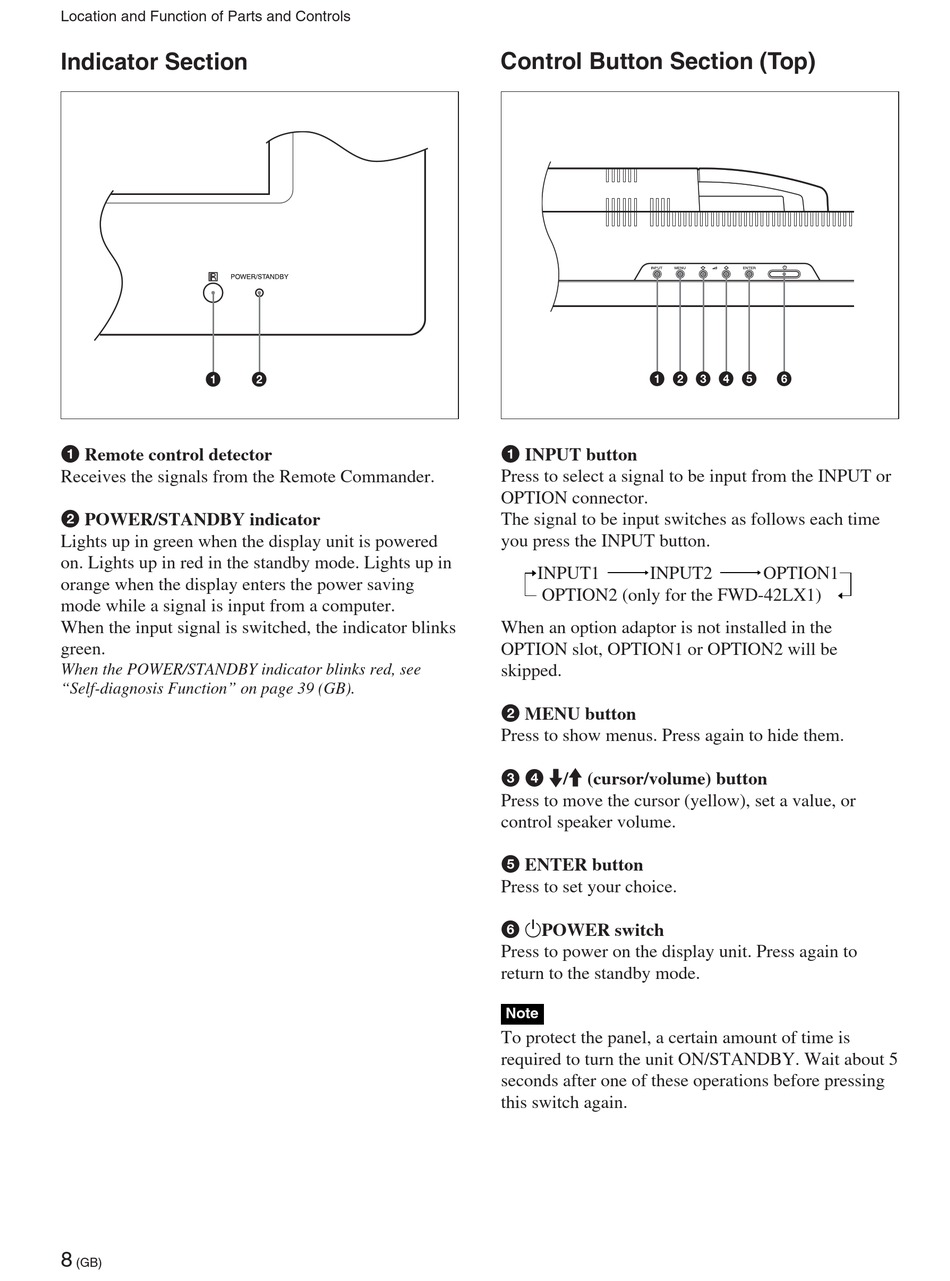

Location and Function of Parts and Controls
1 Remote control detector
Receives the signals from the Remote Commander.
2 POWER/STANDBY indicator
Lights up in green when the display unit is powered
on. Lights up in red in the standby mode. Lights up in
orange when the display enters the power saving
mode while a signal is input from a computer.
When the input signal is switched, the indicator blinks
When the POWER/STANDBY indicator blinks red, see
"Self-diagnosis Function" on page 39 (GB).
Control Button Section (Top)
1 2 3 4 5
1 INPUT button
Press to select a signal to be input from the INPUT or
The signal to be input switches as follows each time
you press the INPUT button.
OPTION2 (only for the FWD-42LX1)
When an option adaptor is not installed in the
OPTION slot, OPTION1 or OPTION2 will be
2 MENU button
Press to show menus. Press again to hide them.
3 4 m/M (cursor/volume) button
Press to move the cursor (yellow), set a value, or
control speaker volume.
5 ENTER button
Press to set your choice.
6 1POWER switch
Press to power on the display unit. Press again to
return to the standby mode.
To protect the panel, a certain amount of time is
required to turn the unit ON/STANDBY. Wait about 5
seconds after one of these operations before pressing
this switch again.
